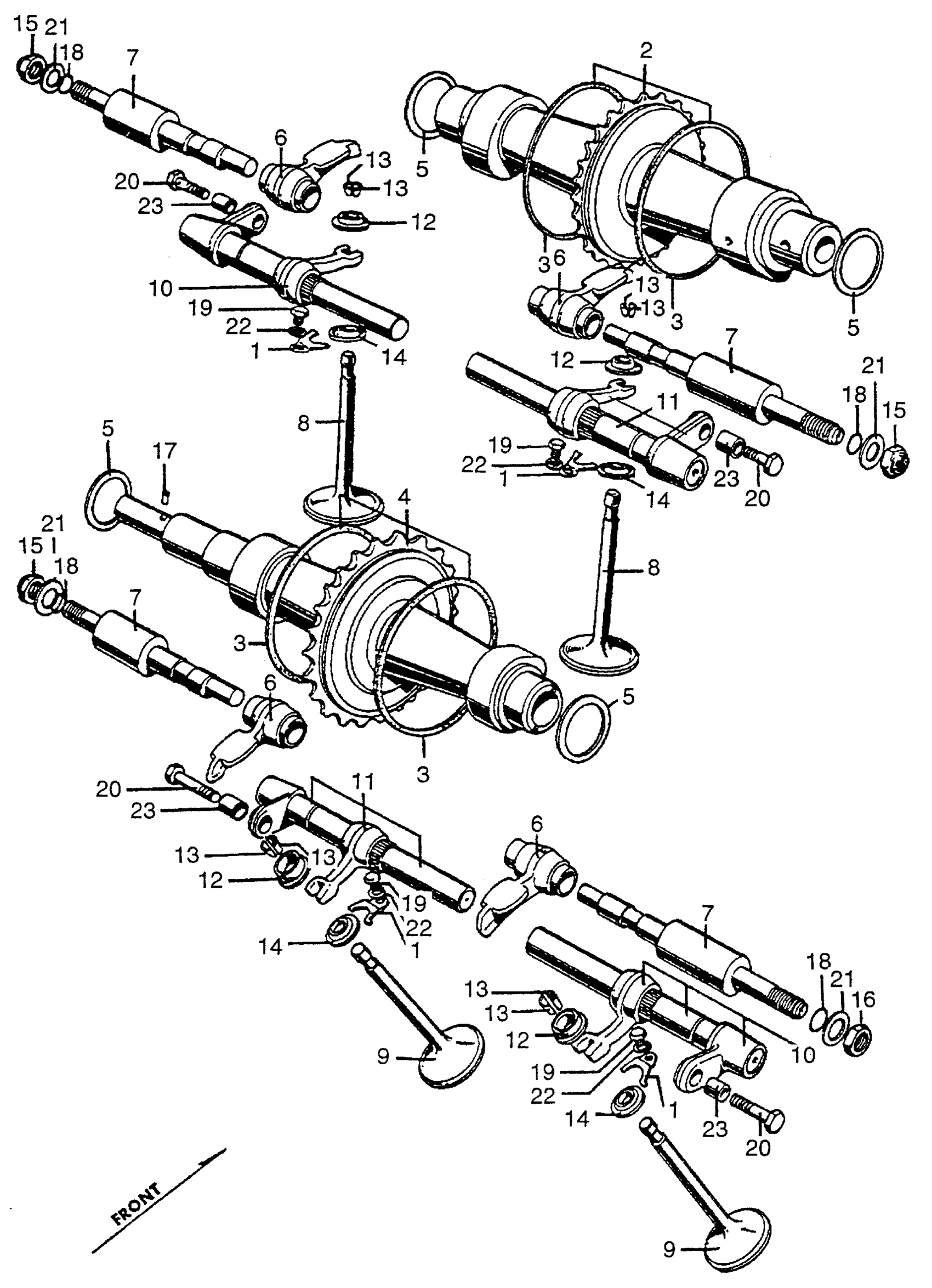

Honda CB450K1A MOTORCYCLE, JPN, VIN# CB450-3000001 TO CB450-3008955 CAMSHAFT + VALVE Diagram

#

Description
Price

1

STOPPER, VALVE GUIDE (NOT AVAILABLE) This part replaces 12293-283-010.

12293-319-000

Unavailable

1

STOPPER, VALVE GUIDE (NOT AVAILABLE)

12293-319-000

Unavailable

2

CAMSHAFT, IN. (NOT AVAILABLE)

14110-292-670

Unavailable

3

RING, CAM CHAIN DAMPER This part replaces 14116-283-300.

14116-292-300

$9.41

3

RING, CAM CHAIN DAMPER

14116-292-300

$9.41

4

CAMSHAFT, EX. (NOT AVAILABLE) This part replaces 14120-283-010.

14120-292-013

Unavailable

4

CAMSHAFT, EX. (NOT AVAILABLE) This part replaces 14120-292-003.

14120-292-013

Unavailable

4

CAMSHAFT, EX. (NOT AVAILABLE)

14120-292-013

Unavailable

5

SPACER, CAMSHAFT (0.1MM) (NOT AVAILABLE) | (Optional).

14294-283-000

Unavailable

5

SPACER, CAMSHAFT (0.2MM) | (Optional).

14295-283-000

Unavailable

6

FOLLOWER, CAM

14431-292-010

Unavailable

7

SHAFT, CAM FOLLOWER

14451-292-000

Unavailable

8

VALVE, IN. (NOT AVAILABLE)

14711-292-000

$91.18

9

VALVE, EX. | Use up to Engine SN 3000448 This part replaces 14721-292-000.

14721-292-010

Unavailable

9

VALVE, EX.

14721-292-010

Unavailable

10

SPRING ASSY. A, TORSION BAR VALVE (NOT AVAILABLE)

14750-292-000

Unavailable

11

SPRING ASSY. B, TORSION BAR VALVE

14760-292-000

Unavailable

12

RETAINER, VALVE SPRING

14771-283-305

Unavailable

13

COTTER, VALVE

14781-292-000

Unavailable

14

CAP, VALVE GUIDE SEAL This part replaces 14791-292-000.

14791-319-005

$12.44

14

CAP, VALVE GUIDE SEAL

14791-319-005

$12.44

15

NUT A, CAM FOLLOWER SHAFT LOCK

90011-283-000

Unavailable

16

NUT B, CAM FOLLOWER SHAFT LOCK (NOT AVAILABLE)

90012-283-000

Unavailable

17

PIN, KNOCK (3X6.8) (NOT AVAILABLE)

90701-283-000

Unavailable

18

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

18

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

19

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

20

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

20

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49

23

PIN A, DOWEL (8X12)

94301-08120

$2.19
