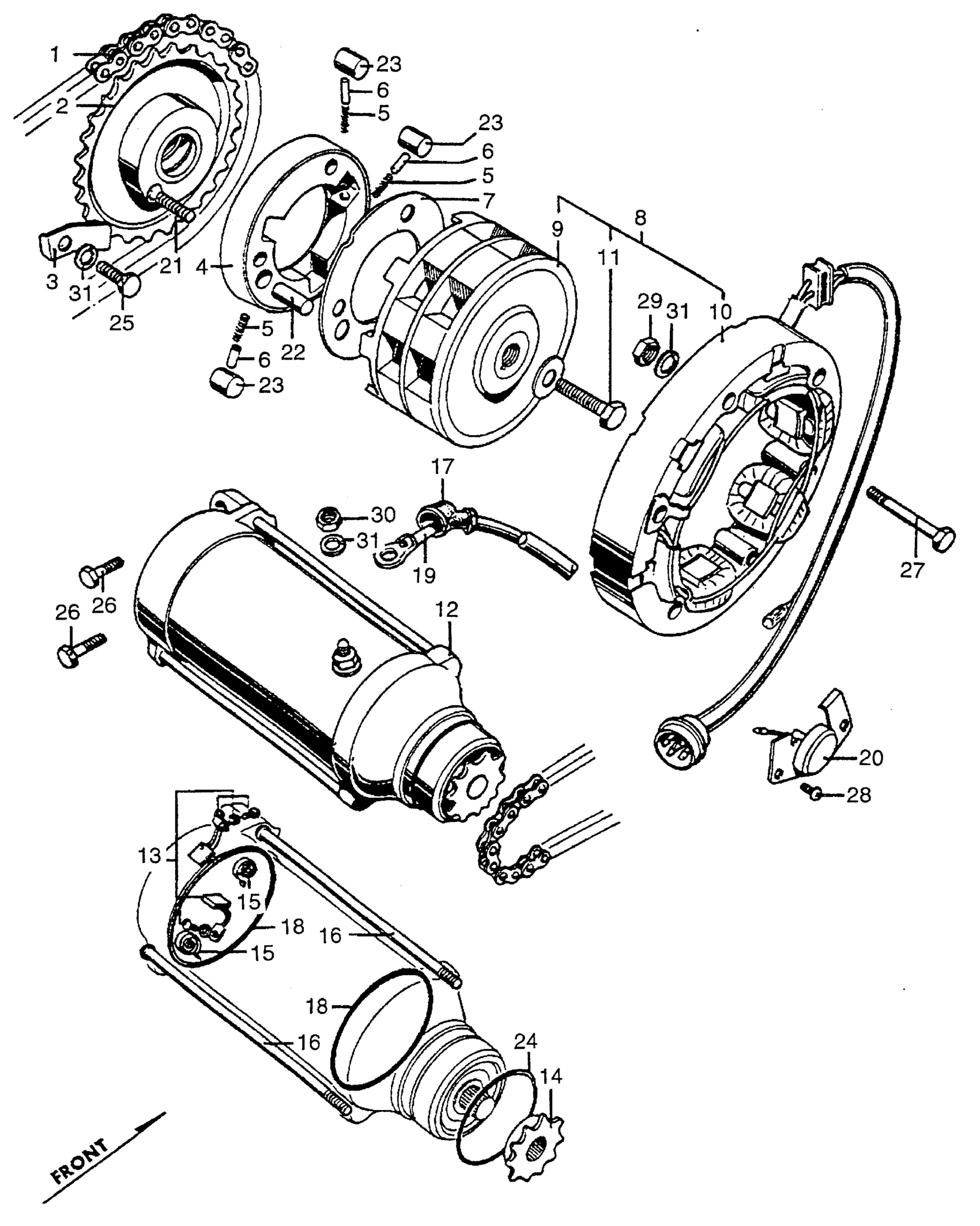

Honda CB450K1A MOTORCYCLE, JPN, VIN# CB450-3000001 TO CB450-3008955 ALTERNATOR + STARTER MOTOR Diagram

#

Description
Price

1

CHAIN, STARTER (56LE) (DAIDO) (NOT AVAILABLE) This part replaces 28101-283-000.

28101-283-003

Unavailable

1

CHAIN, STARTER (56LE) (DAIDO) (NOT AVAILABLE)

28101-283-003

Unavailable

2

SPROCKET, STARTER (DK219.37T) (NOT AVAILABLE)

28110-292-000

Unavailable

3

PLATE, STARTER SPROCKET SETTING (NOT AVAILABLE)

28117-292-000

Unavailable

4

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-292-000

Unavailable

5

SPRING, STARTER CLUTCH ROLLER

28125-283-010

$4.33

6

CAP, STARTER CLUTCH ROLLER SPRING

28126-292-000

$10.07

7

PLATE, STARTER CLUTCH SIDE (NOT AVAILABLE)

28128-283-010

Unavailable

8

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-292-023

Unavailable

9

ROTOR

31101-292-003

Unavailable

10

STATOR (NOT AVAILABLE)

31102-292-013

Unavailable

11

BOLT, ROTOR SETTING (NOT AVAILABLE) | Use up to Engine SN 3003374 This part replaces 31104-283-000.

90014-286-000

Unavailable

11

BOLT, ROTOR SETTING (NOT AVAILABLE) | Use up to Engine SN 3003374

90014-286-000

Unavailable

12

MOTOR ASSY., STARTER (MITSUBA) (NOT AVAILABLE)

31200-292-158

Unavailable

13

BRUSH SET, CARBON

31201-292-158

$26.15

14

SPROCKET, STARTER MOTOR (MITSUBA) (NOT AVAILABLE)

31202-500-154

Unavailable

15

SPRING, CARBON BRUSH

31204-292-158

$3.83

16

BOLT, GEAR COVER (NOT AVAILABLE)

31205-292-158

Unavailable

17

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

17

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

18

O-RING (60X1.4) This part replaces 31206-292-158.

31206-402-008

Unavailable

18

O-RING (60X1.4)

31206-402-008

Unavailable

19

CABLE, STARTER MOTOR (NOT AVAILABLE)

32411-283-000

Unavailable

20

SWITCH ASSY., NEUTRAL (NOT AVAILABLE)

35750-283-000

Unavailable

21

SCREW, FLAT (6X25)

90091-286-000

Unavailable

21

SCREW, FLAT (6X25) This part replaces 90091-292-000.

90091-286-000

Unavailable

22

PIN, KNOCK (8X18) (NOT AVAILABLE)

90712-500-010

Unavailable

23

ROLLER (10.2X11.5)

91101-377-000

$3.01

23

ROLLER (10.2X11.5) This part replaces 91103-259-000.

91101-377-000

$3.01

24

O-RING

91309-MA6-000

$3.97

24

O-RING This part replaces 91309-283-000.

91309-MA6-000

$3.97

24

O-RING This part replaces 91309-283-005.

91309-MA6-000

$3.97

25

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

26

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

26

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

27

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

27

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

27

BOLT, HEX. (6X35)

92201-06035-0A

$1.75

28

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

30

NUT, HEX. (6MM)

94002-06000-0S

$1.49

31

WASHER, SPRING (6MM)

94111-06000

$1.49
