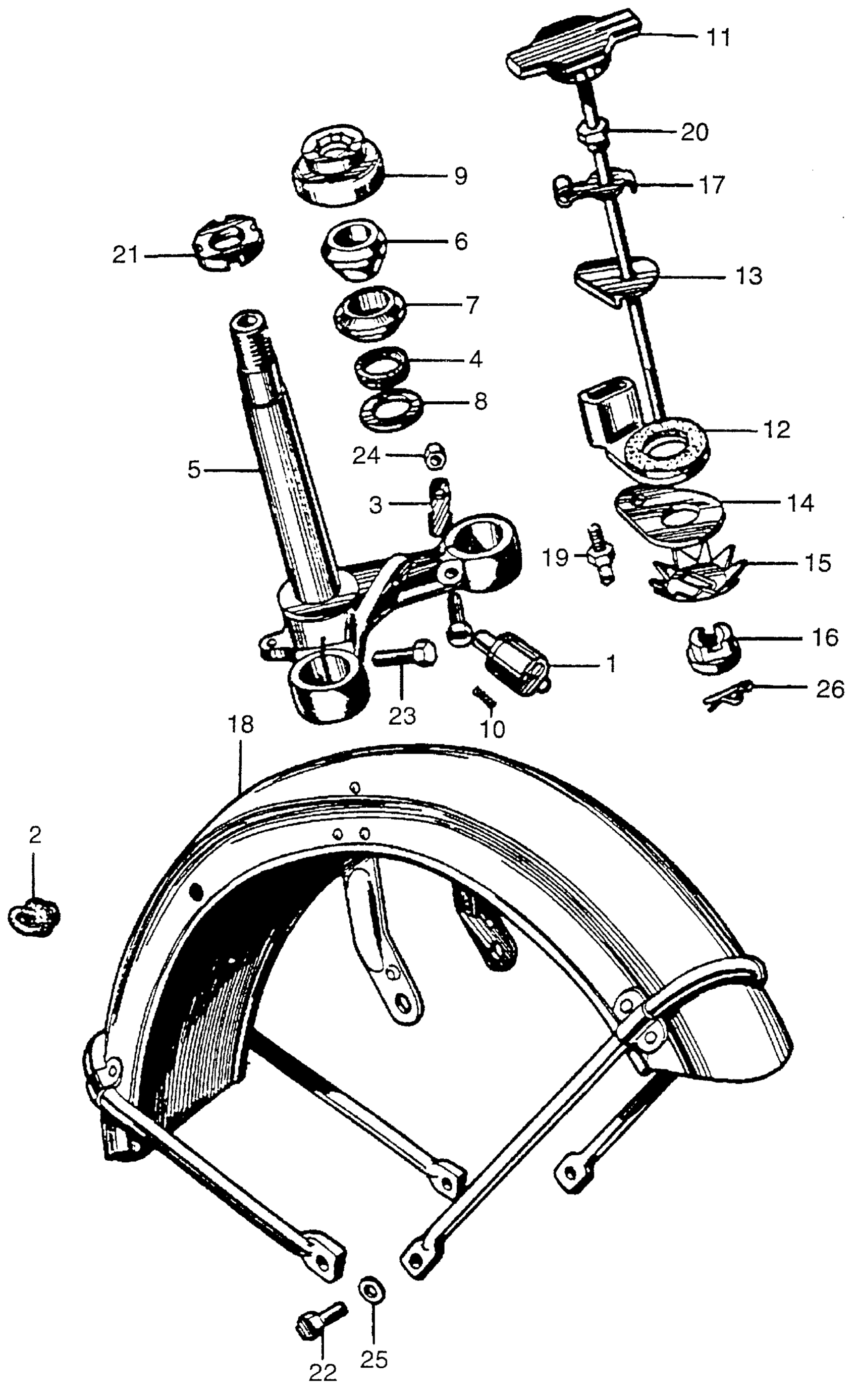

Honda CB450A MOTORCYCLE, JPN, VIN# CB450-1000001 STEERING STEM + FRONT Diagram

#

Description
Price

1

LOCK, HANDLEBAR (NOT AVAILABLE)

35600-268-000

Unavailable

2

GROMMET, CABLE This part replaces 45451-283-000.

45451-367-690

$4.04

2

GROMMET, CABLE

45451-367-690

$4.04

3

CLIP, FR. BRAKE WIRE (NOT AVAILABLE)

45465-283-000

Unavailable

4

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

4

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

5

STEM, STEERING (NOT AVAILABLE)

53200-283-030Z

Unavailable

6

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

6

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

6

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

7

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

7

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

7

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

8

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

9

THREAD, STEERING HEAD TOP

53220-283-010

Unavailable

10

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

11

KNOB, STEERING DAMPER (NOT AVAILABLE)

53740-283-000

Unavailable

12

DISK, STEERING DAMPER FRICTION (NOT AVAILABLE) This part replaces 53750-268-010.

53750-292-000

Unavailable

12

DISK, STEERING DAMPER FRICTION (NOT AVAILABLE)

53750-292-000

Unavailable

13

PLATE A, STEERING DAMPER (NOT AVAILABLE)

53761-292-000

Unavailable

14

PLATE B, STEERING DAMPER (NOT AVAILABLE)

53762-268-010

Unavailable

15

SPRING, STEERING DAMPER (NOT AVAILABLE)

53763-216-000

Unavailable

16

NUT, STEERING DAMPER SPRING (NOT AVAILABLE)

53764-283-000

Unavailable

17

SPRING, STEERING DAMPER LOCK (NOT AVAILABLE)

53765-283-000

Unavailable

18

FENDER, FR. *NH2M* (METALLIC SILVER) (NOT AVAILABLE)

61100-283-000T

Unavailable

19

BOLT, FRICTION DISK ANCHOR (NOT AVAILABLE)

90118-268-000

Unavailable

20

BOLT, DAMPER LOCK SPRING MOUNT (NOT AVAILABLE)

90131-268-010

Unavailable

21

NUT, STEERING STEM (NOT AVAILABLE)

90304-283-010

Unavailable

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

BOLT, HEX. (10X45) (NOT AVAILABLE)

92000-10044

Unavailable

24

NUT, HEX. (10MM)

94030-10000

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

PIN, LOCK (6MM)

94251-06000

$1.49
