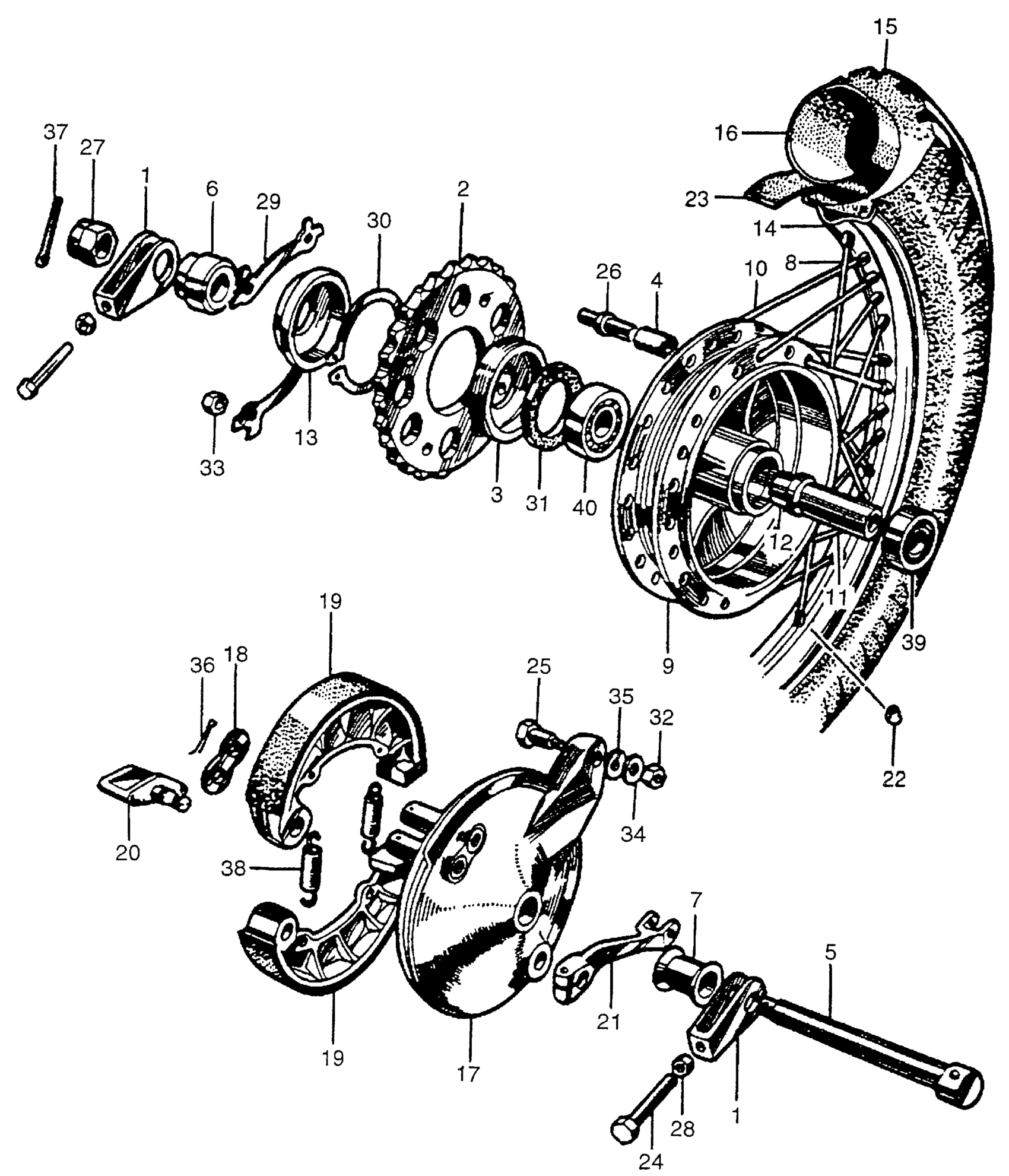

Honda CB450A MOTORCYCLE, JPN, VIN# CB450-1000001 REAR WHEEL + REAR BRAKES Diagram

#

Description
Price

1

ADJUSTER, CHAIN This part replaces 40532-283-010.

95014-18000

$20.48

1

ADJUSTER, CHAIN This part replaces 40543-390-000.

95014-18000

$20.48

1

ADJUSTER, CHAIN

95014-18000

$20.48

2

SPROCKET, FINAL DRIVEN (NOT AVAILABLE)

41200-346-000

Unavailable

2

SPROCKET, FINAL DRIVEN (NOT AVAILABLE) This part replaces 41201-283-000.

41200-346-000

Unavailable

2

SPROCKET, FINAL DRIVEN (34T) (NOT AVAILABLE)

41201-283-810

$42.48

2

SPROCKET, FINAL DRIVEN (36T) (NOT AVAILABLE)

41201-283-820

Unavailable

2

SPROCKET, FINAL DRIVEN (38T) (NOT AVAILABLE)

41201-283-830

Unavailable

2

SPROCKET, FINAL DRIVEN (39T) (NOT AVAILABLE)

41201-283-840

Unavailable

2

SPROCKET, FINAL DRIVEN (37T) (NOT AVAILABLE)

41201-283-850

Unavailable

2

SPROCKET, FINAL DRIVEN (32T) (NOT AVAILABLE)

41201-283-860

Unavailable

2

SPROCKET, FINAL DRIVEN (NOT AVAILABLE) This part replaces 41201-346-000.

41200-346-000

Unavailable

3

RETAINER, RR. WHEEL BEARING

41231-283-000

Unavailable

4

BUSH, RR. WHEEL DAMPER

41241-283-010

Unavailable

5

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-283-303

Unavailable

6

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-283-000

Unavailable

7

COLLAR, RR. BRAKE PANEL

42313-283-000

Unavailable

8

SPOKE A, RR.

42601-283-000

Unavailable

9

HUB, RR. WHEEL (NOT AVAILABLE)

42602-283-000

Unavailable

10

SPOKE B, RR.

42604-283-000

Unavailable

11

COLLAR A, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-283-010

Unavailable

12

COLLAR B, RR. AXLE DISTANCE (NOT AVAILABLE)

42625-283-000

Unavailable

13

CAP, BEARING RETAINER (NOT AVAILABLE)

42633-283-000

Unavailable

14

RIM, RR. WHEEL (18) (DAIDO) (NOT AVAILABLE) This part replaces 42701-283-003.

42701-404-771

Unavailable

14

RIM, RR. WHEEL (18) (DAIDO) (NOT AVAILABLE)

42701-404-771

Unavailable

15

TIRE, RR. (3.50S-18) (NITTO) (NOT AVAILABLE) This part replaces 42711-323-013.

42711-388-671

Unavailable

15

TIRE, RR. (3.50S-18) (NITTO) (NOT AVAILABLE)

42711-388-671

Unavailable

16

TUBE, TIRE (3.50-18) This part replaces 08400-31300.

42712-446-631

Unavailable

16

TUBE, TIRE (3.50-18) This part replaces 08400-44600.

42712-446-631

Unavailable

16

TUBE, TIRE (3.50-18) This part replaces 42712-283-000.

42712-446-631

Unavailable

16

TUBE, TIRE (3.50-18) This part replaces 42712-286-000.

42712-446-631

Unavailable

16

TUBE, TIRE (3.50-18) This part replaces 42712-287-000.

42712-446-631

Unavailable

16

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

16

TUBE, TIRE (3.50-18) This part replaces 42712-437-970.

42712-446-631

Unavailable

16

TUBE, TIRE (3.50-18) This part replaces 42712-437-971.

42712-446-631

Unavailable

16

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

16

TUBE, TIRE (3.50-18) This part replaces 44712-283-000.

42712-446-631

Unavailable

17

PANEL, RR. BRAKE This part replaces 43100-319-000.

43100-374-000

Unavailable

17

PANEL, RR. BRAKE This part replaces 43100-347-000.

43100-374-000

Unavailable

17

PANEL, RR. BRAKE

43100-374-000

Unavailable

18

WASHER, ANCHOR PIN

43102-319-000

$6.21

18

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

19

SHOE KIT, BRAKE

06430-390-405

Unavailable

19

SHOE KIT, BRAKE This part replaces 43120-283-000.

06430-390-405

Unavailable

19

SHOE KIT, BRAKE This part replaces 43120-404-003.

06430-390-405

Unavailable

19

SHOE KIT, BRAKE This part replaces 43120-458-670.

06430-390-405

Unavailable

20

CAM, RR. BRAKE (NOT AVAILABLE)

43141-216-000

Unavailable

21

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43411-283-000.

43411-374-000

Unavailable

21

ARM, RR. BRAKE (NOT AVAILABLE)

43411-374-000

Unavailable

22

BALANCER, WHEEL (20G)

44606-283-000

$8.89

22

BALANCER, WHEEL (15G)

44607-283-000

$8.08

22

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

22

BALANCER, WHEEL (5G)

44609-283-000

$3.93

23

FLAP, TIRE (18") (NOT AVAILABLE)

44713-283-000

Unavailable

24

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

25

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-283-000

Unavailable

26

BOLT, DRIVEN SPROCKET FIXING

90128-283-010

Unavailable

27

NUT, RR. WHEEL AXLE This part replaces 90306-268-000.

90306-329-770

$7.58

27

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

28

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

29

WASHER, TONGUED (10MM) (NOT AVAILABLE) This part replaces 90523-283-000.

94108-16000

Unavailable

29

WASHER, TONGUED (10MM) (NOT AVAILABLE)

94108-16000

Unavailable

30

CIRCLIP (73.8MM) (NOT AVAILABLE)

90665-283-000

Unavailable

31

OIL SEAL (34X55X9)

90753-283-000

$16.11

32

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

32

NUT, HEX. (8MM)

94030-08000

$1.49

32

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

33

NUT, HEX. (10MM)

94002-10000-0S

$4.06

34

WASHER, PLAIN (8MM)

94101-08000

$1.49

35

WASHER, SPRING (8MM)

94111-10000

$1.49

36

PIN, COTTER (2.5MM)

94201-25300

$1.49

37

PIN, COTTER (4.0X30)

94201-40300

$1.49

38

SPRING, BRAKE SHOE (NOT AVAILABLE)

95014-74320

Unavailable

39

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040.

96120-63040-10

$22.40

39

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40

40

BEARING, RADIAL BALL (6305Z) (NOT AVAILABLE)

96120-63050

Unavailable
