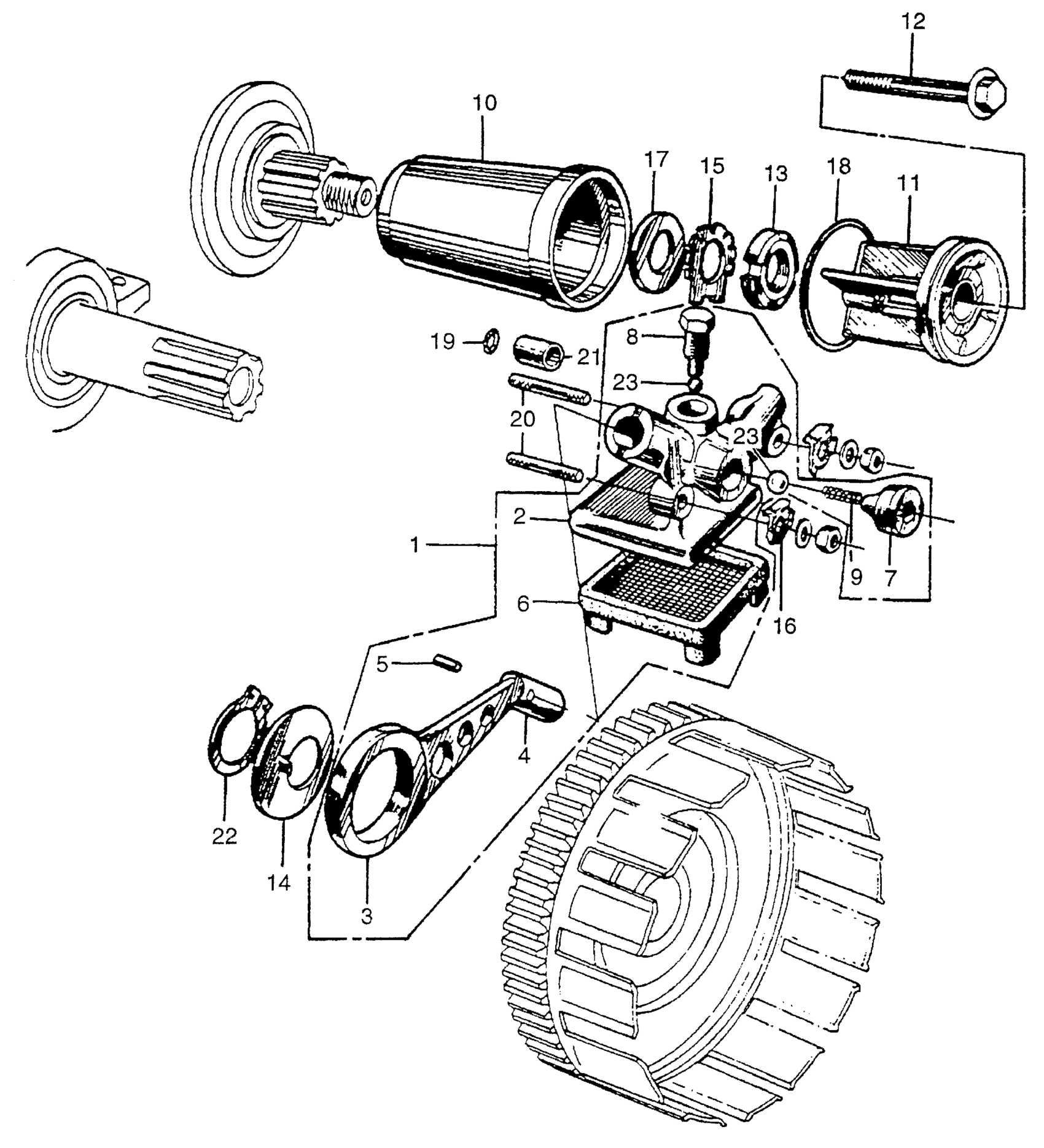

Honda CB450A MOTORCYCLE, JPN, VIN# CB450-1000001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE)

15020-283-000

Unavailable

2

PUMP ASSY., OIL (NOT AVAILABLE)

15020-283-000

Unavailable

2

PUMP ASSY., OIL (NOT AVAILABLE) This part replaces 15200-283-000.

15020-283-000

Unavailable

2

PUMP ASSY., OIL (NOT AVAILABLE) This part replaces 15201-283-000.

15020-283-000

Unavailable

3

BODY, PUMP (NOT AVAILABLE)

15205-283-000

Unavailable

4

PLUNGER, PUMP (NOT AVAILABLE)

15209-283-000

Unavailable

5

PIN, OIL PUMP PLUNGER

15210-283-000

$5.36

6

SCREEN, OIL FILTER (NOT AVAILABLE)

15211-283-000

Unavailable

7

GUIDE, PUMP OUTLET VALVE

15212-283-000

Unavailable

8

BOLT, PUMP SUCTION VALVE (NOT AVAILABLE)

15213-216-000

Unavailable

9

SPRING, VALVE (NOT AVAILABLE)

15272-216-000

Unavailable

10

ROTOR, OIL FILTER (NOT AVAILABLE)

15441-283-000

Unavailable

11

CAP, OIL FILTER (NOT AVAILABLE)

15450-283-000

Unavailable

12

BOLT, OIL FILTER CAP (NOT AVAILABLE) | Use from Engine SN 1000593

90046-283-000

Unavailable

13

NUT, LOCK (16MM)

90231-KCS-651

$4.21

13

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

14

WASHER, SIDE PUMP ROD (NOT AVAILABLE)

90404-283-000

Unavailable

15

WASHER, LOCK (16MM) (NOT AVAILABLE)

90431-283-000

Unavailable

16

WASHER, SPRING (6MM) (NOT AVAILABLE)

90433-283-000

Unavailable

17

WASHER (16MM) (NOT AVAILABLE)

90481-283-010

Unavailable

18

O-RING This part replaces 91304-283-000.

91309-MA6-000

$3.97

18

O-RING

91309-MA6-000

$3.97

18

O-RING This part replaces 91309-283-005.

91309-MA6-000

$3.97

19

O-RING (8X1.5) (NOT AVAILABLE)

91307-283-000

Unavailable

20

BOLT, STUD (6X28) This part replaces 90038-250-000.

92900-06028-0B

$1.89

20

BOLT, STUD (6X28) This part replaces 90051-200-000.

92900-06028-0B

$1.89

20

BOLT, STUD (6X35)

92700-06035

$1.89

20

BOLT, STUD (6X28) This part replaces 92700-06035-0B.

92900-06028-0B

$1.89

20

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

20

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

20

BOLT, STUD (6X28)

92900-06028-0B

$1.89

20

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

21

PIN A, DOWEL (8X10)

94301-08100

$2.25

22

CIRCLIP (OUTER) (34MM)

94510-34000

Unavailable

23

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
