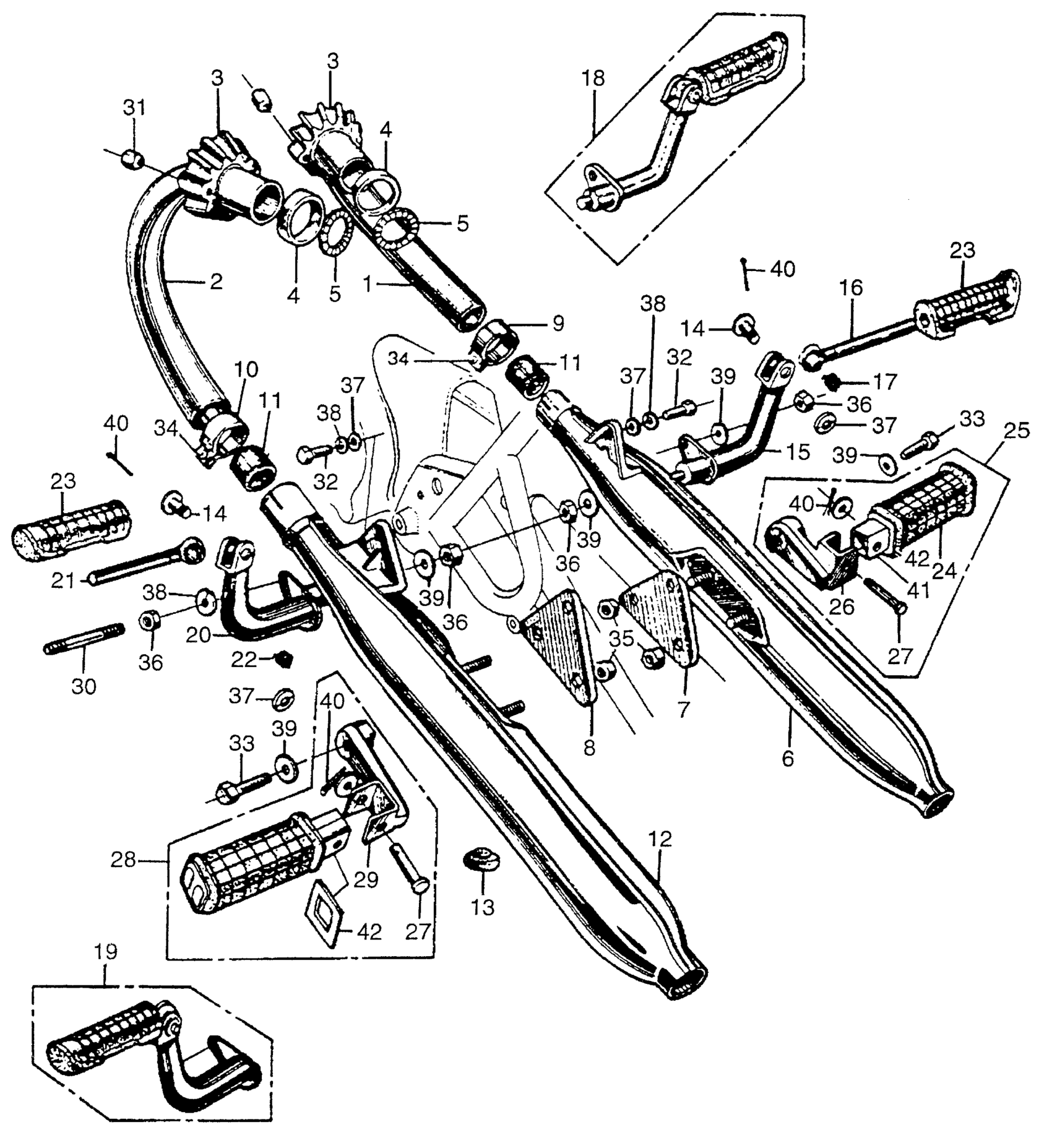

Honda CB450A MOTORCYCLE, JPN, VIN# CB450-1000001 MUFFLER + STEP BAR Diagram

#

Description
Price

1

PIPE, R. EX. (NOT AVAILABLE) | Use up to Frame SN 1020748

18210-283-000

Unavailable

2

PIPE, L. EX. (NOT AVAILABLE) | Use up to Frame SN 1020748

18220-283-000

Unavailable

3

JOINT, EX. PIPE | Use up to Frame SN 1020748

18231-283-000

Unavailable

3

JOINT, EX. PIPE (NOT AVAILABLE) | Use from Frame SN 1020749

18231-292-000

Unavailable

4

COLLAR, EX. PIPE JOINT | Use up to Frame SN 1020748

18233-283-000

Unavailable

4

COLLAR, EX. PIPE JOINT | Use from Frame SN 1020749

18233-283-010

Unavailable

5

GASKET, EX. PIPE

18291-MM8-880

$7.16

5

GASKET, EX. PIPE This part replaces 18291-283-010.

18291-MM8-880

$7.16

5

GASKET, EX. PIPE This part replaces 18291-283-306.

18291-MM8-880

$7.16

6

MUFFLER, R. (NOT AVAILABLE) This part replaces 18300-283-000.

18300-283-007

Unavailable

6

MUFFLER, R. (NOT AVAILABLE)

18300-283-007

Unavailable

7

BRACKET, R. MUFFLER (NOT AVAILABLE)

18353-283-000

Unavailable

8

BRACKET, L. MUFFLER (NOT AVAILABLE)

18354-283-000

Unavailable

9

BAND, R. MUFFLER (NOT AVAILABLE) | Use up to Frame SN 1020748 This part replaces 18371-283-010.

18371-292-000

Unavailable

9

BAND, R. MUFFLER (NOT AVAILABLE) | Use up to Frame SN 1020748

18371-292-000

Unavailable

10

BAND, L. MUFFLER (NOT AVAILABLE) | Use from Frame SN 1002495 to 1020748 This part replaces 18372-283-000.

18372-292-000

Unavailable

10

BAND, L. MUFFLER (NOT AVAILABLE)

18372-292-000

Unavailable

11

GASKET, MUFFLER | Use up to Frame SN 1020748 This part replaces 18391-283-000.

18391-283-306

Unavailable

11

GASKET, MUFFLER | Use up to Frame SN 1020748

18391-283-306

Unavailable

12

MUFFLER, L. (NOT AVAILABLE) This part replaces 18400-283-000.

18400-283-007

Unavailable

12

MUFFLER, L. (NOT AVAILABLE)

18400-283-007

Unavailable

13

RUBBER C, STAND STOPPER | Use from Frame SN 1005945 This part replaces 50524-283-000.

95011-63000

$3.90

13

RUBBER C, STAND STOPPER | Use from Frame SN 1005945 This part replaces 50543-283-000.

95011-63000

$3.90

13

RUBBER C, STAND STOPPER | Use from Frame SN 1005945

95011-63000

$3.90

13

RUBBER C, STAND STOPPER

95011-63000

$3.90

14

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

14

PIN, STEP BAR JOINT

50603-033-010

$3.30

15

BAR, R. STEP *NH1* (BLACK) (NOT AVAILABLE)

50615-283-030B

Unavailable

16

ARM, R. STEP *NH1* (BLACK)

50616-283-020B

Unavailable

17

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

18

BAR ASSY., R. STEP *NH1* (BLACK) (NOT AVAILABLE)

50630-283-010B

Unavailable

19

BAR ASSY., L. STEP *NH1* (BLACK) (NOT AVAILABLE)

50640-283-000B

Unavailable

20

BAR, L. STEP *NH1* (BLACK) (NOT AVAILABLE)

50641-283-020B

Unavailable

21

ARM, L. STEP *NH1* (BLACK)

50642-283-020B

Unavailable

22

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

23

RUBBER, STEP This part replaces 50661-056-000.

50661-110-000

$10.76

23

RUBBER, STEP

50661-110-000

$10.76

23

RUBBER, STEP This part replaces 50661-283-010.

50661-110-000

$10.76

23

RUBBER, STEP This part replaces 95011-23000.

50661-110-000

$10.76

24

RUBBER, PILLION STEP | Use from Frame SN 1025571 This part replaces 50705-024-000.

95011-31000

$7.16

24

RUBBER, PILLION STEP | Use from Frame SN 1025571 This part replaces 50731-024-000.

95011-31000

$7.16

24

RUBBER, PILLION STEP | Use from Frame SN 1025571

95011-31000

$7.16

25

STEP ASSY., R. PILLION (NOT AVAILABLE)

50710-283-000

Unavailable

26

ARM, R. PILLION STEP This part replaces 50711-283-000.

50711-283-010

Unavailable

26

ARM, R. PILLION STEP

50711-283-010

Unavailable

27

PIN C, PILLION STEP | Use from Frame SN 1025571 This part replaces 50714-283-000.

95015-83000

$2.41

27

PIN C, PILLION STEP | Use from Frame SN 1025571 This part replaces 50714-283-010.

95015-83000

$2.41

27

PIN C, PILLION STEP | Use up to Frame SN 1003768 This part replaces 50714-283-010.

95015-83000

$2.41

27

PIN C, PILLION STEP | Use from Frame SN 1025571 This part replaces 50714-300-000.

95015-83000

$2.41

27

PIN C, PILLION STEP | Use up to Frame SN 1003768 This part replaces 50714-300-000.

95015-83000

$2.41

27

PIN C, PILLION FOOTPEG | Use from Frame SN 1025571

95015-83000

$2.41

27

PIN C, PILLION FOOTPEG | Use up to Frame SN 1003768

95015-83000

$2.41

27

PIN C, PILLION FOOTPEG | Use from Frame SN 1003769

95015-83000

$2.41

28

STEP ASSY., L. PILLION (NOT AVAILABLE) | Use up to Frame SN 1003768

50720-283-000

Unavailable

29

ARM, L. PILLION STEP (NOT AVAILABLE) | Use from Frame SN 1003769 This part replaces 50721-283-000.

50721-283-010

Unavailable

29

ARM, L. PILLION STEP (NOT AVAILABLE)

50721-283-010

Unavailable

30

BOLT C, ENGINE (NOT AVAILABLE)

90106-283-010

Unavailable

31

NUT, EX. PIPE JOINT (NOT AVAILABLE)

90311-283-000

Unavailable

32

BOLT, HEX. (8X18) This part replaces 92000-08018.

92101-08018-0A

$1.53

32

BOLT, HEX. (8X18) This part replaces 92000-08018-0A.

92101-08018-0A

$1.53

32

BOLT, HEX. (8X18)

92101-08018-0A

$1.53

33

BOLT, HEX. (10X60) This part replaces 92200-10060-0A.

92201-10060-0A

$3.02

33

BOLT, HEX. (10X60)

92201-10060-0A

$3.02

34

SCREW, PAN (6X14) This part replaces 93500-06014.

93500-06014-0A

$1.49

34

SCREW, PAN (6X14)

93500-06014-0A

$1.49

35

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

35

NUT, HEX. (8MM)

94030-08000

$1.49

35

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

36

NUT, HEX. (10MM)

94030-10000

$1.49

37

WASHER, PLAIN (8MM)

94101-08000

$1.49

38

WASHER, SPRING (8MM)

94111-08000

$1.49

39

WASHER, SPRING (8MM)

94111-10000

$1.49

40

PIN, COTTER (1.6X25)

94201-16250

$1.49

41

BAR B, PILLION STEP

95015-62000

$30.68

42

WASHER, FOOTPEG

95015-91000

$1.31
