- CB450A MOTORCYCLE, JPN, VIN# CB450-1000001
LEFT CARBURETOR

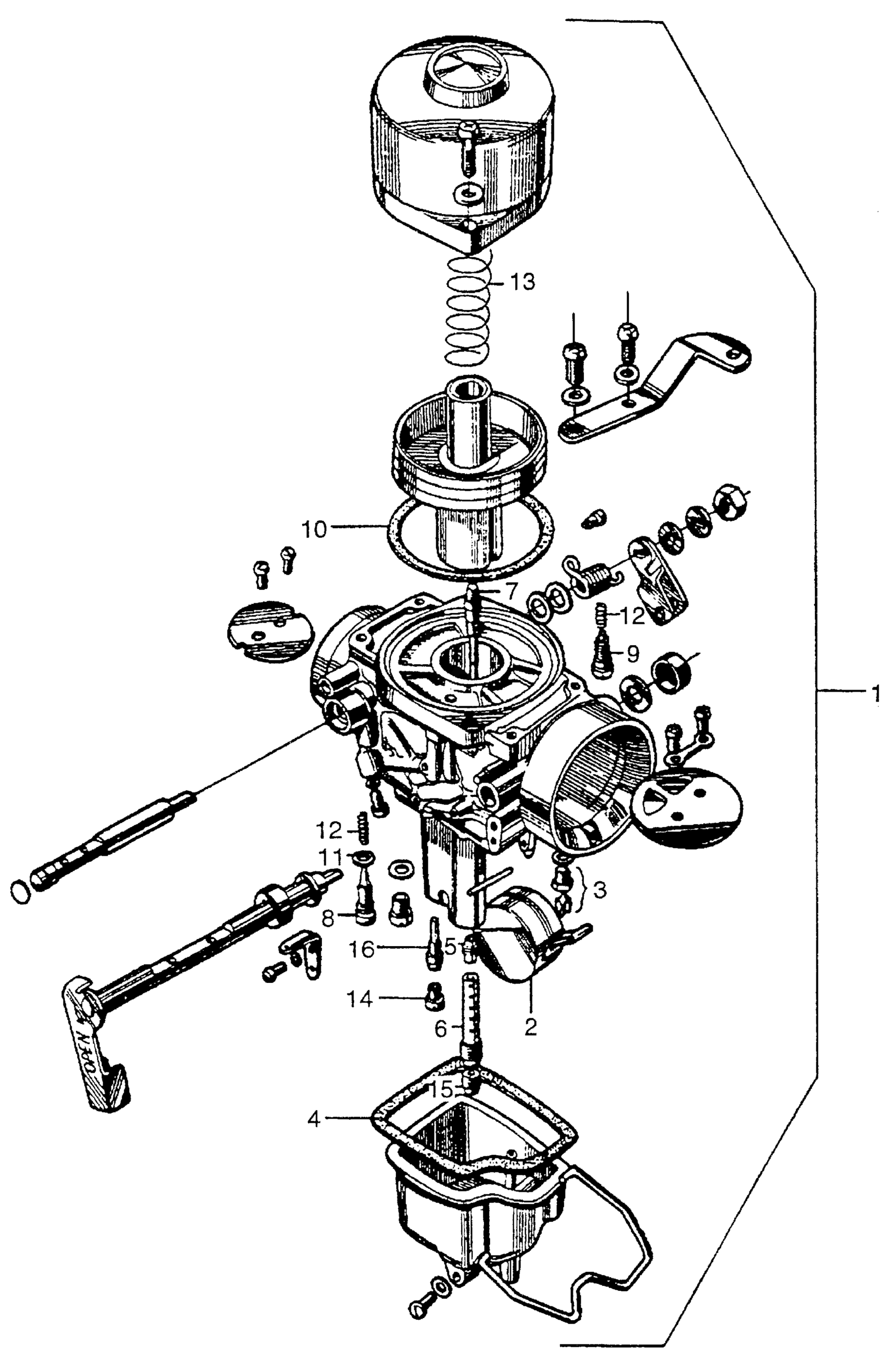

Honda CB450A MOTORCYCLE, JPN, VIN# CB450-1000001 LEFT CARBURETOR Diagram
#
1
CARBURETOR ASSY., L. (NOT AVAILABLE) This part replaces 16102-283-000.
16102-283-315
Unavailable
1
CARBURETOR ASSY., L. (NOT AVAILABLE) This part replaces 16102-283-010.
16102-283-315
Unavailable
1
CARBURETOR ASSY., L. (NOT AVAILABLE)
16102-283-315
Unavailable
2
FLOAT (NOT AVAILABLE)
16122-283-004
Unavailable
4
O-RING This part replaces 16129-500-004.
16129-504-004
Unavailable
4
O-RING
16129-504-004
Unavailable
5
NEEDLE, JET (NOT AVAILABLE)
16133-283-004
Unavailable
5
NEEDLE, JET (NOT AVAILABLE)
16151-283-315
Unavailable
6
HOLDER, NEEDLE JET (NOT AVAILABLE)
16139-283-004
Unavailable
6
HOLDER, NEEDLE JET (NOT AVAILABLE)
16139-283-305
Unavailable
7
NEEDLE, JET (NOT AVAILABLE)
16151-283-004
Unavailable
7
NEEDLE, JET (NOT AVAILABLE)
16151-283-014
Unavailable
8
SCREW, PILOT (NOT AVAILABLE)
16161-283-004
Unavailable
9
SCREW, THROTTLE STOP (NOT AVAILABLE)
16163-283-004
Unavailable
10
TOP, GASKET (NOT AVAILABLE)
16171-283-004
Unavailable
11
O-RING (2.8MM) (NOT AVAILABLE)
16175-260-004
Unavailable
12
SCREW, NEEDLE SET (NOT AVAILABLE)
16181-283-004
Unavailable
13
SPRING, PISTON (NOT AVAILABLE)
16186-283-305
Unavailable
14
JET, PILOT (#35) (NOT AVAILABLE)
99104-03504
Unavailable
14
JET, PILOT (#38) (NOT AVAILABLE) This part replaces 99104-03804.
99144-292-0380
Unavailable
14
JET, PILOT (#40) (NOT AVAILABLE) This part replaces 99104-04004.
99144-292-0400
Unavailable
14
JET, PILOT (#42) (NOT AVAILABLE)
99104-04204
Unavailable
14
JET, PILOT (#38) (NOT AVAILABLE)
99144-292-0380
Unavailable
14
JET, PILOT (#40) (NOT AVAILABLE)
99144-292-0400
Unavailable
14
JET, PILOT (#35)
99171-03594
Unavailable
15
JET, MAIN (#120) (NOT AVAILABLE)
99106-12004
Unavailable
15
JET, MAIN (#125) (NOT AVAILABLE)
99106-12504
Unavailable
15
JET, MAIN (#130) (NOT AVAILABLE)
99106-13004
Unavailable
16
JET, SLOW (#35) (NOT AVAILABLE)
99124-292-0350
Unavailable
16
JET, SLOW (#38) (NOT AVAILABLE)
99124-292-0380
Unavailable
16
JET, SLOW (#35) (NOT AVAILABLE) This part replaces 99135-03594.
99124-292-0350
Unavailable
16
JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99135-03804.
99124-292-0380
Unavailable
16
JET, SLOW (#40) (NOT AVAILABLE)
99135-04004
Unavailable
16
JET, SLOW (#42) (NOT AVAILABLE)
99135-04204
Unavailable
