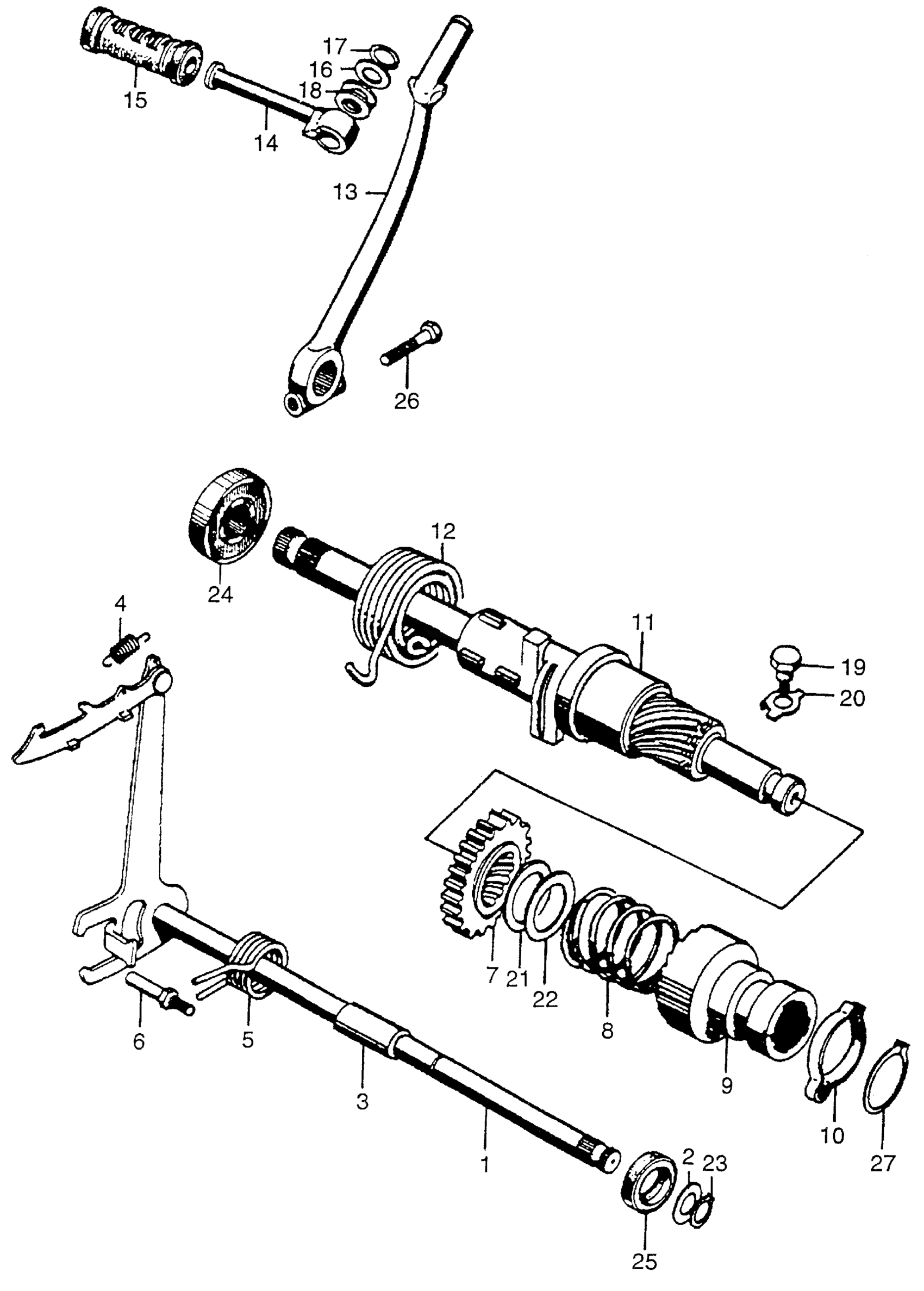

Honda CB450A MOTORCYCLE, JPN, VIN# CB450-1000001 KICK STARTER + GEARSHIFT Diagram

#

Description
Price

1

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-283-010

Unavailable

2

STOPPER, GEARSHIFT SPINDLE (NOT AVAILABLE)

24621-200-000

Unavailable

3

COLLAR, GEARSHIFT SPINDLE

24631-283-000

Unavailable

4

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

5

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-283-000

Unavailable

6

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-200-000

Unavailable

7

PINION, KICK STARTER This part replaces 28211-283-010.

28211-283-020

Unavailable

7

PINION, KICK STARTER

28211-283-020

Unavailable

8

SPRING, STARTER PINION SETTING (NOT AVAILABLE)

28215-283-000

Unavailable

9

RATCHET, KICK STARTER | Use up to Engine SN 1000591 This part replaces 28221-283-030.

28221-283-040

Unavailable

9

RATCHET, KICK STARTER

28221-283-040

Unavailable

10

SPRING, FRICTION

28239-283-000

Unavailable

11

SPINDLE, KICK STARTER (NOT AVAILABLE) | Use up to Engine SN 1000069 This part replaces 28251-283-030.

28251-283-050

Unavailable

11

SPINDLE, KICK STARTER (NOT AVAILABLE) | Use up to Engine SN 1000591 This part replaces 28251-283-040.

28251-283-050

Unavailable

11

SPINDLE, KICK STARTER (NOT AVAILABLE)

28251-283-050

Unavailable

12

SPRING, KICK STARTER

28261-283-010

Unavailable

13

ARM, KICK STARTER (NOT AVAILABLE) This part replaces 28262-283-010.

28262-292-000

$158.43

13

ARM, KICK STARTER (NOT AVAILABLE)

28262-292-000

$158.43

14

PEDAL, KICK STARTER (NOT AVAILABLE)

28263-283-000

Unavailable

15

RUBBER B, KICK STARTER This part replaces 28307-254-000.

95011-52000

$4.12

15

RUBBER B, KICK STARTER This part replaces 28310-216-000.

95011-52000

$4.12

15

RUBBER B, KICK STARTER This part replaces 28311-200-000.

95011-52000

$4.12

15

RUBBER B, KICK STARTER This part replaces 28311-250-000.

95011-52000

$4.12

15

RUBBER B, KICK STARTER

95011-52000

$4.12

16

WASHER, KICK PEDAL (NOT AVAILABLE)

28485-231-020

Unavailable

17

CLIP, KICK STARTER STOPPER (NOT AVAILABLE)

28486-231-020

Unavailable

18

SPRING, KICK STARTER PEDAL

28487-231-000

$3.77

19

BOLT (8MM) (NOT AVAILABLE)

90081-283-000

Unavailable

20

WASHER (8MM) (NOT AVAILABLE)

90432-283-010

Unavailable

21

WASHER, THRUST (26MM) (NOT AVAILABLE)

90453-283-020

Unavailable

22

WASHER, THRUST (28MM)

90457-283-000

Unavailable

23

CIRCLIP (12MM) (NOT AVAILABLE)

90603-200-000

Unavailable

24

OIL SEAL (17X29X7) (NOT AVAILABLE)

91204-283-000

Unavailable

25

OIL SEAL (NOT AVAILABLE)

91206-283-000

Unavailable

26

BOLT, HEX. (8X32) This part replaces 92000-08032.

92101-08032-0B

$2.39

26

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

26

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

26

BOLT, HEX. (8X32) This part replaces 92000-08032-02.

92101-08032-0B

$2.39

26

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

27

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49
