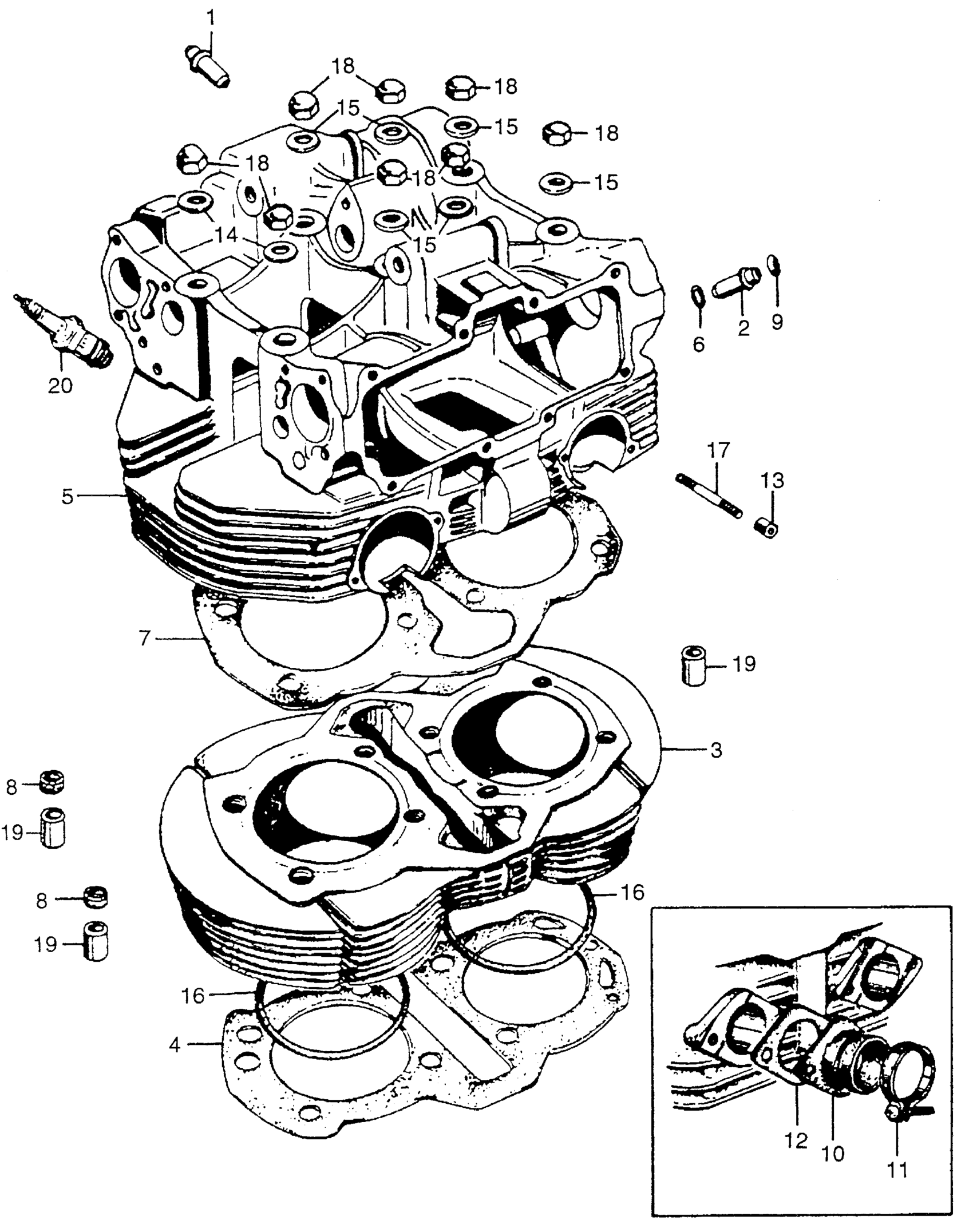

Honda CB450A MOTORCYCLE, JPN, VIN# CB450-1000001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-283-300.

12021-283-405

Unavailable

1

GUIDE, VALVE (NOT AVAILABLE) | Use from Engine SN 1000149

12022-283-300

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE) | Use up to Engine SN 1001764

12023-283-300

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12023-283-310

Unavailable

2

GUIDE, EX. VALVE | Use up to Engine SN 1001764 This part replaces 12024-283-300.

12024-283-310

Unavailable

2

GUIDE, EX. VALVE

12024-283-310

Unavailable

2

GUIDE, EX. VALVE

12025-283-300

Unavailable

2

GUIDE, EX. VALVE

12026-283-300

Unavailable

3

CYLINDER (NOT AVAILABLE) | Use up to Engine SN 1001062

12100-283-010

Unavailable

3

CYLINDER (NOT AVAILABLE) | Use from Engine SN 1001063 This part replaces 12100-283-020.

12100-292-020

Unavailable

3

CYLINDER (NOT AVAILABLE) | Use from Engine SN 1001063

12100-292-020

Unavailable

4

GASKET, CYLINDER This part replaces 12191-283-010.

12191-283-306

Unavailable

4

GASKET, CYLINDER | Use up to Engine SN 1001062 This part replaces 12191-283-315.

12191-283-306

Unavailable

5

CYLINDER HEAD | Use from Engine SN 1001765

12200-283-030

Unavailable

6

O-RING (12X1) (NOT AVAILABLE)

12209-283-000

$9.45

7

GASKET, CYLINDER HEAD This part replaces 12251-283-010.

12251-283-306

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-283-020.

12251-283-306

Unavailable

7

GASKET, CYLINDER HEAD

12251-283-306

Unavailable

8

GASKET, CYLINDER HEAD This part replaces 12909-283-000.

12909-428-003

Unavailable

8

GASKET, CYLINDER HEAD This part replaces 12909-333-000.

12909-428-003

Unavailable

8

GASKET, CYLINDER HEAD

12909-428-003

Unavailable

9

CAP, VALVE GUIDE SEAL (NOT AVAILABLE)

14791-283-000

Unavailable

9

CAP, VALVE GUIDE SEAL (NOT AVAILABLE)

14791-283-010

Unavailable

9

CAP, VALVE GUIDE SEAL This part replaces 14791-283-020.

14791-319-005

$12.44

9

CAP, VALVE GUIDE SEAL This part replaces 14791-292-000.

14791-319-005

$12.44

9

CAP, VALVE GUIDE SEAL

14791-319-005

$12.44

10

INSULATOR, CARBURETOR

16211-283-000

Unavailable

11

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 16223-283-000.

95018-50250

$7.58

11

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 90652-GHB-680.

95018-50250

$7.58

11

BAND, AIR CLEANER CONNECTING TUBE (50)

95018-50250

$7.58

12

GASKET This part replaces 16229-283-010.

16229-283-306

Unavailable

13

NUT, EX. PIPE JOINT (NOT AVAILABLE)

90311-283-000

Unavailable

14

WASHER, SEALING (10MM) (NOT AVAILABLE)

90441-283-000

Unavailable

15

WASHER B, SEALING (10MM) | Use from Engine SN 1000633

90442-283-000

$2.51

16

O-RING, CYLINDER (75.8X2) This part replaces 91302-283-000.

91302-283-003

$6.34

16

O-RING, CYLINDER (75.8X2)

91302-283-003

$6.34

17

BOLT, STUD (6X48) (NOT AVAILABLE)

92700-06048-35

Unavailable

18

NUT, CAP (10MM) This part replaces 94021-10000.

94021-10000-0S

$1.72

18

NUT, CAP (10MM)

94021-10000-0S

$1.72

18

NUT, CAP (10MM) This part replaces 94022-10000-0S.

94021-10000-0S

$1.72

19

PIN, KNOCK (12X24) (NOT AVAILABLE)

94301-12240

Unavailable

20

SPARK PLUG (B6E) (NGK) This part replaces 98079-56810.

98079-56840

Unavailable

20

SPARK PLUG (B6E) (NGK)

98079-56840

Unavailable

20

SPARK PLUG (B7ES) (NGK)

98079-57840

$2.56

20

SPARK PLUG (B8ES) (NGK)

98079-58840

$2.56

20

SPARK PLUG (B9ES) (NGK) This part replaces 98079-59811.

98079-59840

$2.56

20

SPARK PLUG (B9ES) (NGK) This part replaces 98079-59811-S.

98079-59840

$2.56

20

SPARK PLUG (B9ES) (NGK)

98079-59840

$2.56

20

SPARK PLUG (B10ES) (NGK)

98079-60810

$2.56
