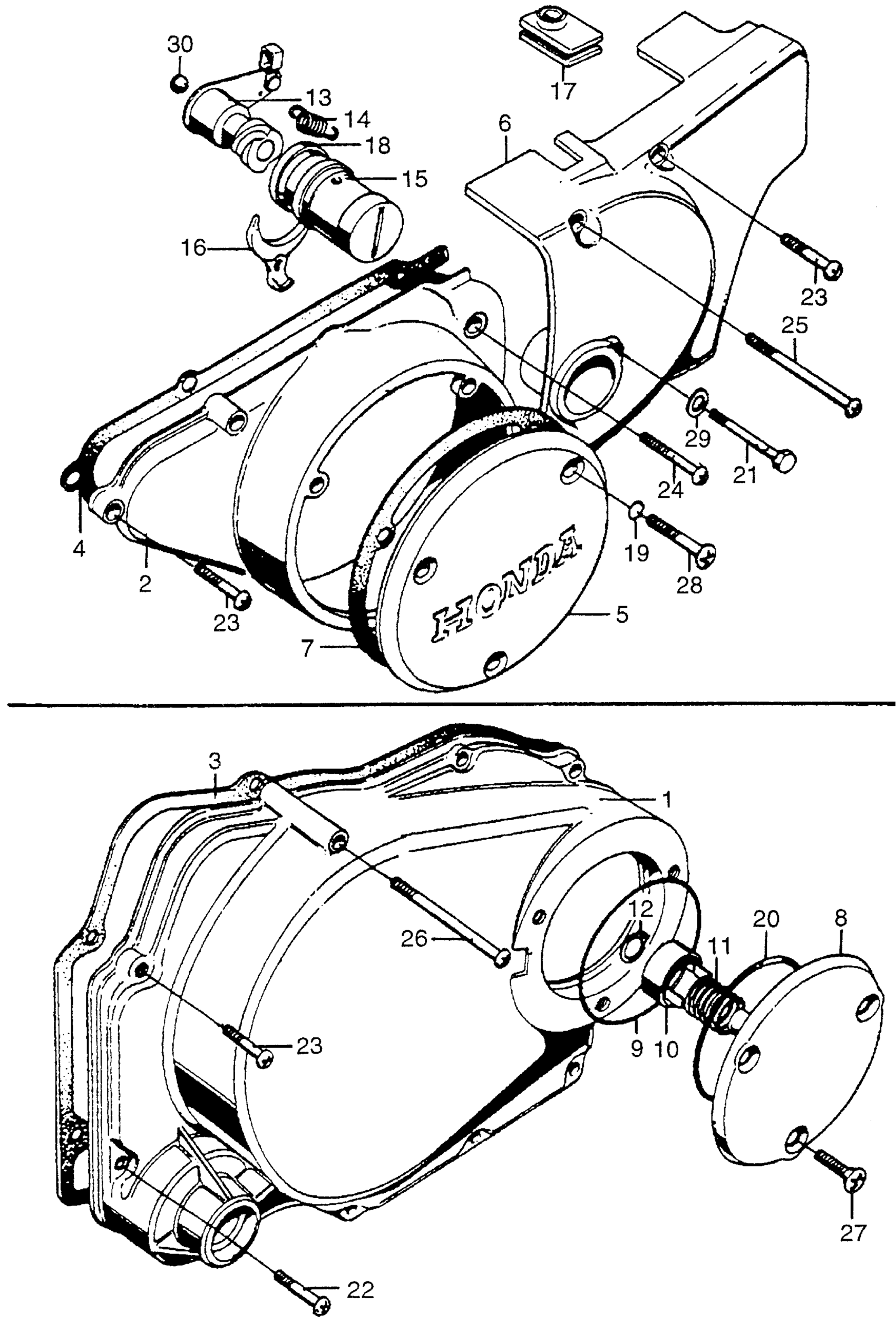

Honda CB450A MOTORCYCLE, JPN, VIN# CB450-1000001 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-283-010

Unavailable

2

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-283-000

Unavailable

3

GASKET, R. This part replaces 11394-283-010.

11394-283-306

Unavailable

4

GASKET, L. CRANKCASE COVER This part replaces 11395-283-000.

11395-283-306

Unavailable

4

GASKET, L. CRANKCASE COVER

11395-283-306

Unavailable

5

COVER, ALTERNATOR (NOT AVAILABLE) This part replaces 11431-319-000.

11431-346-000

Unavailable

5

COVER, ALTERNATOR (NOT AVAILABLE)

11431-346-000

Unavailable

6

COVER, DRIVE CHAIN (NOT AVAILABLE)

11660-283-010

Unavailable

7

GASKET, ALTERNATOR COVER This part replaces 11691-283-000.

11691-283-306

Unavailable

7

GASKET, ALTERNATOR COVER

11691-283-306

Unavailable

8

COVER, OIL FILTER (NOT AVAILABLE)

15481-283-010

Unavailable

9

O-RING (63X2) (NOT AVAILABLE)

15489-283-010

Unavailable

10

METAL, OIL GUIDE (NOT AVAILABLE)

15594-292-000

$12.78

11

SPRING, OIL GUIDE METAL (NOT AVAILABLE)

15595-283-000

Unavailable

12

RING, OIL GUIDE METAL STOPPER (NOT AVAILABLE)

15597-283-000

Unavailable

13

THREAD, CLUTCH LIFTER (NOT AVAILABLE)

22810-283-000

Unavailable

14

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-283-000

Unavailable

15

ADJUSTER, CLUTCH

22841-266-000

Unavailable

16

PIECE, ADJUSTER FIXING This part replaces 22844-200-000.

22844-200-010

Unavailable

16

PIECE, ADJUSTER FIXING

22844-200-010

Unavailable

16

PIECE, ADJUSTER FIXING (NOT AVAILABLE)

22844-323-000

Unavailable

17

JOINT, CLUTCH CABLE (NOT AVAILABLE)

22875-283-000

Unavailable

18

OIL SEAL (22X26X29X8) This part replaces 91205-200-000.

91205-200-005

Unavailable

18

OIL SEAL (22X26X29X8)

91205-200-005

Unavailable

19

O-RING (4.9X2.5) This part replaces 91301-283-000.

91301-426-010

$3.60

19

O-RING (4.9X2.5) This part replaces 91301-283-005.

91301-426-010

$3.60

19

O-RING (4.9X2.5) This part replaces 91301-393-000.

91301-426-010

$3.60

19

O-RING (4.9X2.5)

91301-426-010

$3.60

20

O-RING (57.8X2.4) This part replaces 91305-283-000.

91312-PC6-003

$5.03

20

O-RING (57.8X2.4)

91312-PC6-003

$5.03

21

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

21

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

21

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

22

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

22

SCREW, PAN (6X22)

93500-06022-0A

$1.49

23

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

23

SCREW, PAN (6X28)

93500-06028-0A

$1.49

24

SCREW, PAN (6X35)

93500-06035-0A

$1.49

24

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

25

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

25

SCREW, PAN (6X60)

93500-06060-0A

$1.49

26

SCREW, PAN (6X75) This part replaces 93500-06075.

93500-06075-0A

$1.73

26

SCREW, PAN (6X75)

93500-06075-0A

$1.73

27

SCREW, OVAL (6X16) This part replaces 93700-06016.

93700-06016-0A

$1.49

27

SCREW, OVAL (6X16)

93700-06016-0A

$1.49

28

SCREW, OVAL (6X42) (NOT AVAILABLE)

93700-06042

Unavailable

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06800

$1.49

30

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
