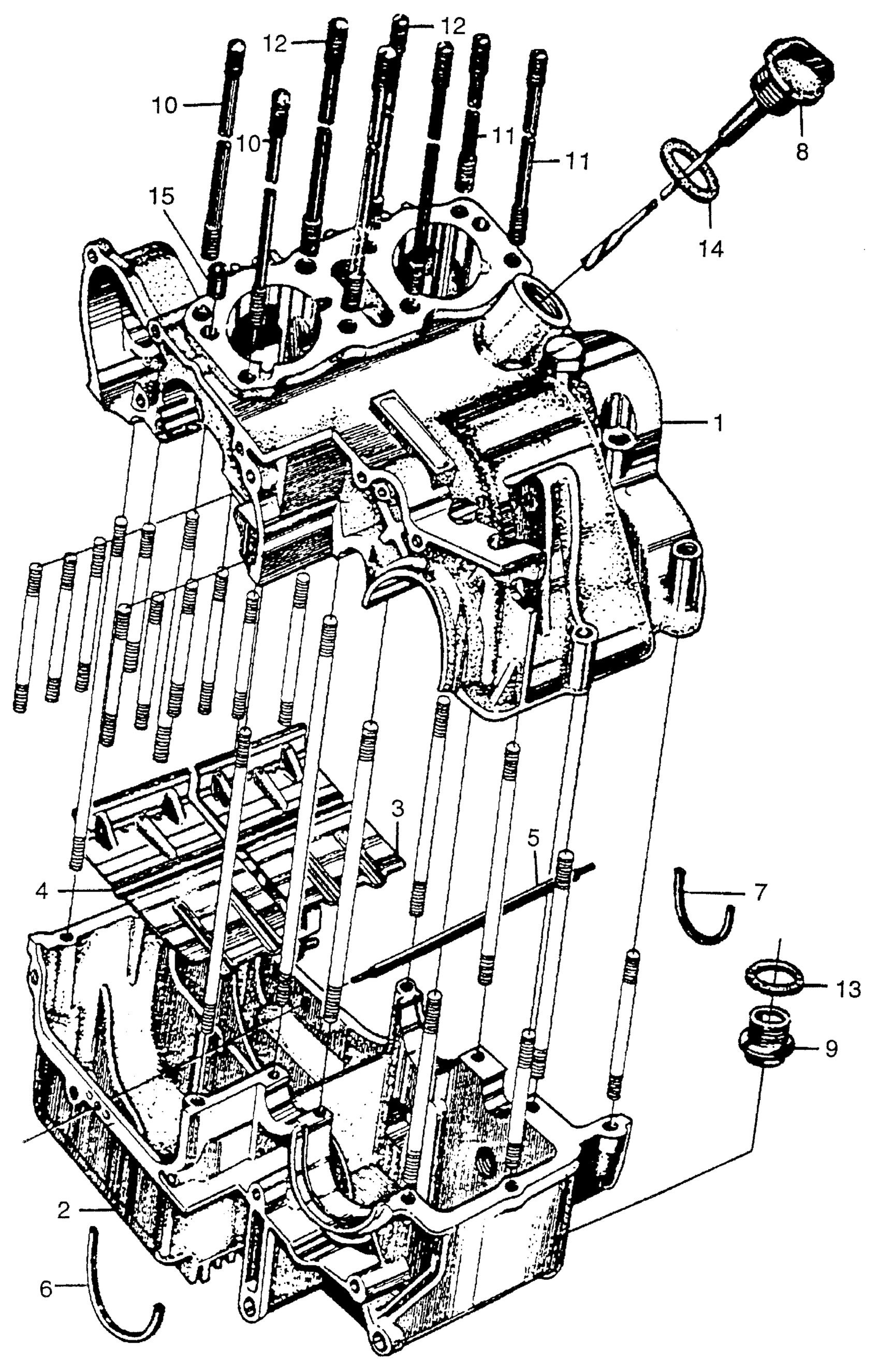

Honda CB450A MOTORCYCLE, JPN, VIN# CB450-1000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (UPPER)

11100-283-030

Unavailable

2

CRANKCASE (LOWER)

11200-283-010

Unavailable

3

SEPARATOR, R. OIL (NOT AVAILABLE)

11761-283-000

Unavailable

4

SEPARATOR, R. OIL (NOT AVAILABLE)

11761-283-000

Unavailable

4

SEPARATOR, R. OIL (NOT AVAILABLE) This part replaces 11771-283-000.

11761-283-000

Unavailable

5

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11781-283-000

Unavailable

6

RING, BEARING SETTING (57MM) (NOT AVAILABLE)

13491-283-000

Unavailable

7

SET-RING (520) This part replaces 13492-283-000.

95015-25200

Unavailable

7

SET-RING (520)

95015-25200

Unavailable

8

DIPSTICK, OIL (NOT AVAILABLE)

15650-283-010

Unavailable

9

BOLT, DRAIN VALVE (NOT AVAILABLE)

90013-312-000

Unavailable

10

STUD A, CYLINDER (NOT AVAILABLE)

90031-283-000

Unavailable

11

STUD B, CYLINDER (NOT AVAILABLE)

90032-283-000

Unavailable

12

STUD C, CYLINDER (NOT AVAILABLE)

90033-283-000

Unavailable

13

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

13

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

13

O-RING (33.5X3.0)

91304-HB3-003

$7.70

14

O-RING (37X2.4) (ARAI) GASKET KIT A This part replaces 91303-283-000.

91305-KT7-003

$2.83

14

O-RING (37X2.4) (ARAI)

91305-KT7-003

$2.83

15

PIN A, DOWEL (10X16)

94301-10160

$2.28
