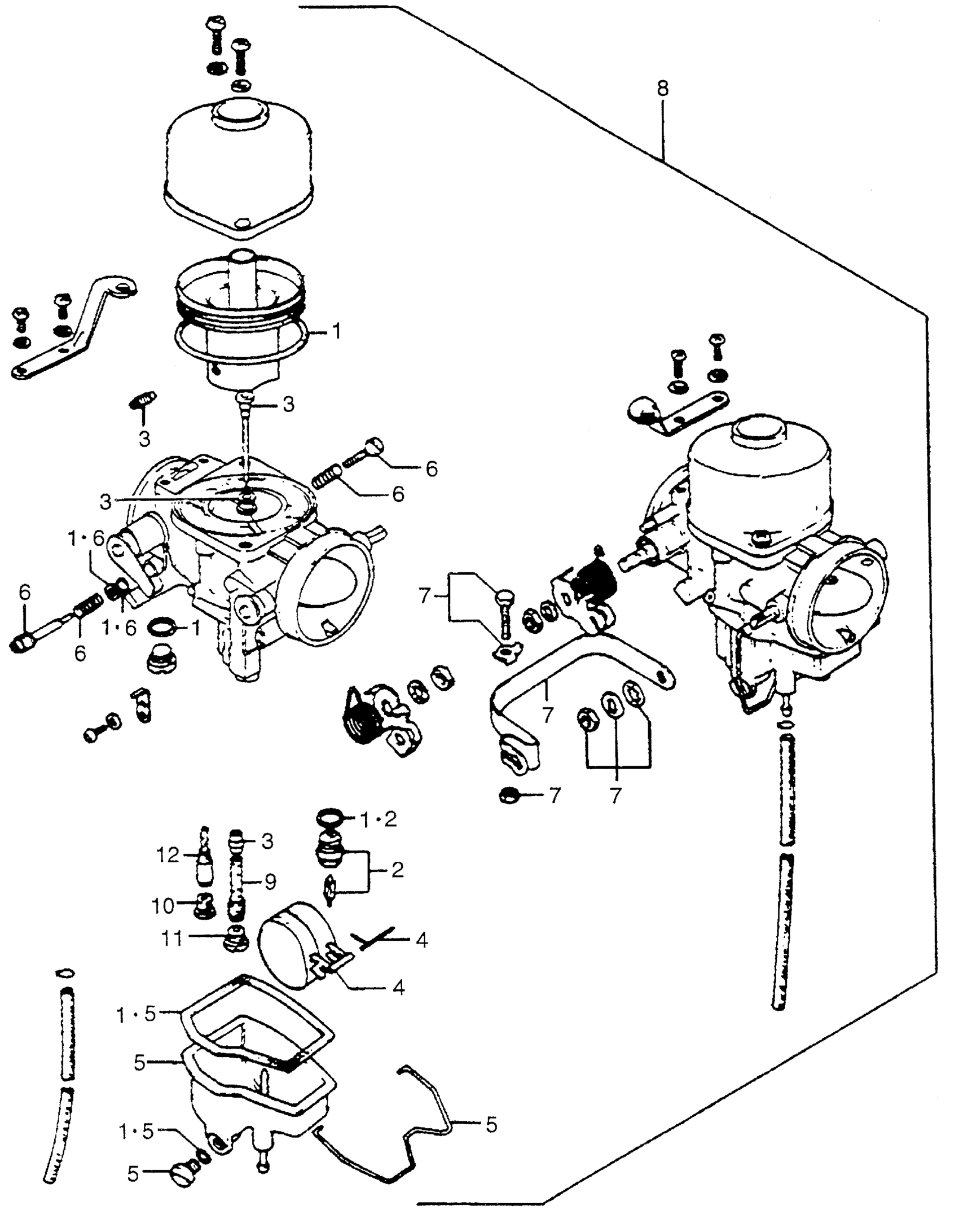

Honda CB450A MOTORCYCLE, JPN, VIN# CB450-1000001 CARBURETOR SETS Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-283-004.

16010-346-305

$9.23

1

GASKET SET

16010-346-305

$9.23

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-283-004

Unavailable

4

FLOAT SET (KEIHIN)

16013-283-004

Unavailable

5

CHAMBER SET, FLOAT (KEIHIN) (NOT AVAILABLE)

16015-346-004

Unavailable

6

SCREW SET A (NOT AVAILABLE)

16016-283-004

Unavailable

7

JOINT SET, CONNECTOR (NOT AVAILABLE)

16025-283-004

Unavailable

8

CARBURETOR ASSY., R. (NOT AVAILABLE)

16100-283-315

Unavailable

8

CARBURETOR ASSY., L. (NOT AVAILABLE)

16102-283-315

Unavailable

9

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-283-004

Unavailable

9

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-283-305

Unavailable

10

JET, PILOT (#40) (NOT AVAILABLE) This part replaces 99104-04004.

99144-292-0400

Unavailable

10

JET, PILOT (#38) (NOT AVAILABLE)

99144-292-0380

Unavailable

10

JET, PILOT (#40) (NOT AVAILABLE)

99144-292-0400

Unavailable

11

JET, MAIN (#125) (NOT AVAILABLE)

99106-12504

Unavailable

12

JET, SLOW (#35) (NOT AVAILABLE)

99124-292-0350

Unavailable

12

JET, SLOW (#38) (NOT AVAILABLE)

99124-292-0380

Unavailable

12

JET, SLOW (#35) (NOT AVAILABLE) This part replaces 99135-03594.

99124-292-0350

Unavailable

12

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99135-03804.

99124-292-0380

Unavailable
