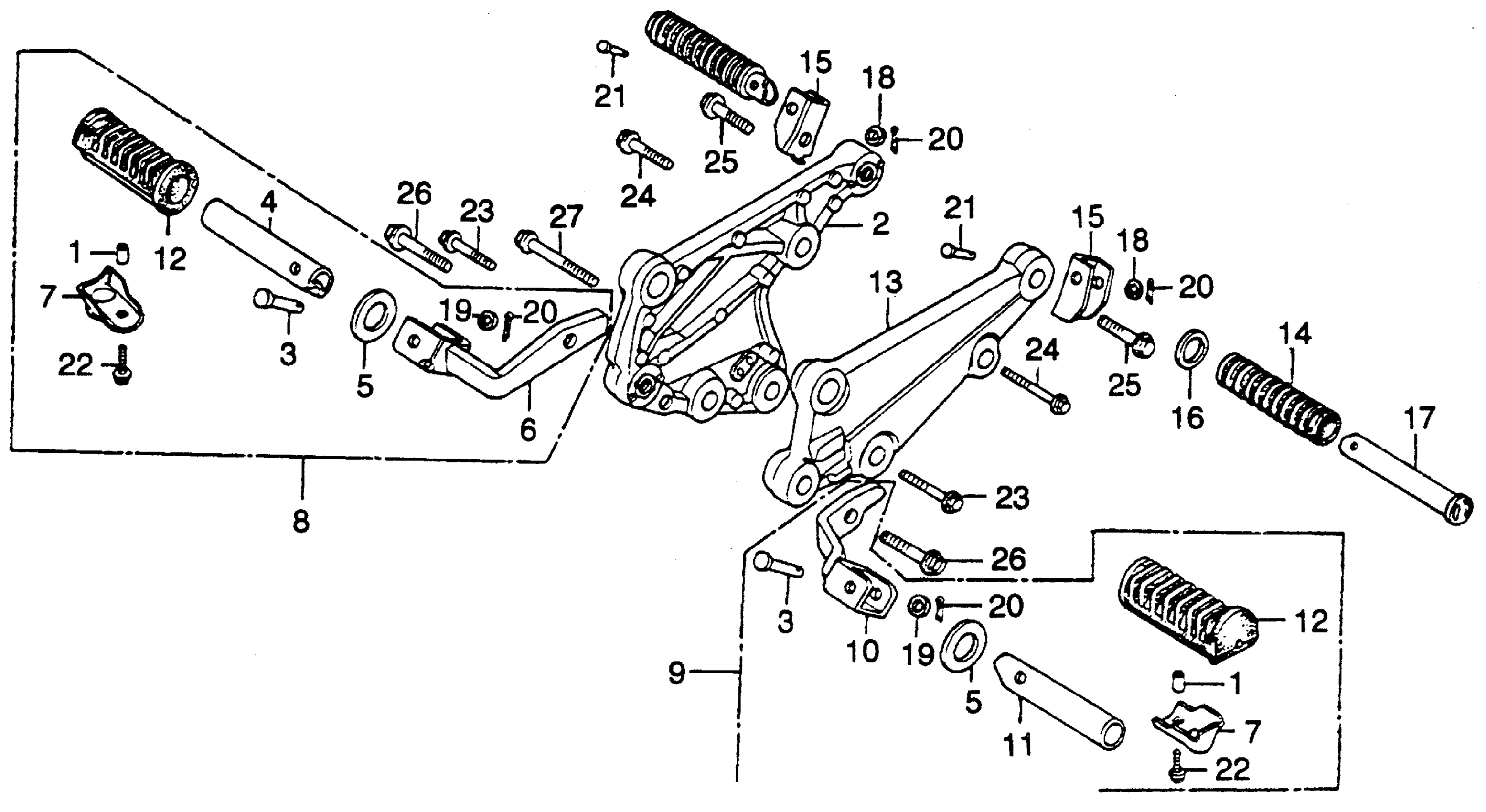

Honda CB400TIIA (79) HAWK II, JPN, VIN# CB400T-4100006 STEP Diagram

#

Description
Price

1

COLLAR, INSTRUMENT SETTING

37243-323-000

Unavailable

2

HOLDER, R. FOOTPEG (NOT AVAILABLE)

50600-413-010

Unavailable

3

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

3

PIN, STEP BAR JOINT

50603-033-010

$3.30

4

BAR, R. FOOTPEG

50612-413-000

Unavailable

5

WASHER, MAIN FOOTPEG

50614-413-000

Unavailable

6

ARM, R. FOOTPEG (NOT AVAILABLE)

50615-413-010

Unavailable

7

STOPPER, STEP RUBBER

50619-413-000

Unavailable

8

FOOTPEG ASSY., R. (NOT AVAILABLE)

50630-413-010

Unavailable

9

FOOTPEG ASSY., L. (NOT AVAILABLE)

50640-413-000

Unavailable

10

ARM, L. FOOTPEG (NOT AVAILABLE)

50641-413-000

Unavailable

11

BAR, L. FOOTPEG (NOT AVAILABLE)

50643-413-000

Unavailable

12

RUBBER, FOOTPEG This part replaces 50661-413-000.

50661-426-000

$13.86

12

RUBBER, FOOTPEG

50661-426-000

$13.86

13

HOLDER, L. FOOTPEG (NOT AVAILABLE)

50700-413-000

Unavailable

14

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

14

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

15

BRACKET, PILLION FOOTPEG

50711-415-010

Unavailable

16

WASHER, PILLION FOOTPEG

50712-413-000

$3.47

17

BAR, PILLION STEP (COO) This part replaces 50715-413-000.

50715-413-305

$17.81

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

20

PIN, COTTER (1.6X25)

94201-16250

$1.49

21

PIN B, PILLION FOOTPEG

95015-82000

$2.41

22

BOLT, FLANGE (6X18) This part replaces 95700-06018-08.

95701-06018-08

$1.62

22

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

23

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

23

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

24

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

24

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

25

BOLT, FLANGE (10X32) This part replaces 95700-10032-00.

95701-10032-00

$1.49

25

BOLT, FLANGE (10X32)

95701-10032-00

$1.49

26

BOLT, FLANGE (10X40) This part replaces 95700-10040-00.

95701-10040-00

$1.51

26

BOLT, FLANGE (10X40)

95701-10040-00

$1.51

27

BOLT, FLANGE (8X65) This part replaces 95800-08065-00.

95801-08065-00

$2.75

27

BOLT, FLANGE (8X65)

95801-08065-00

$2.75
