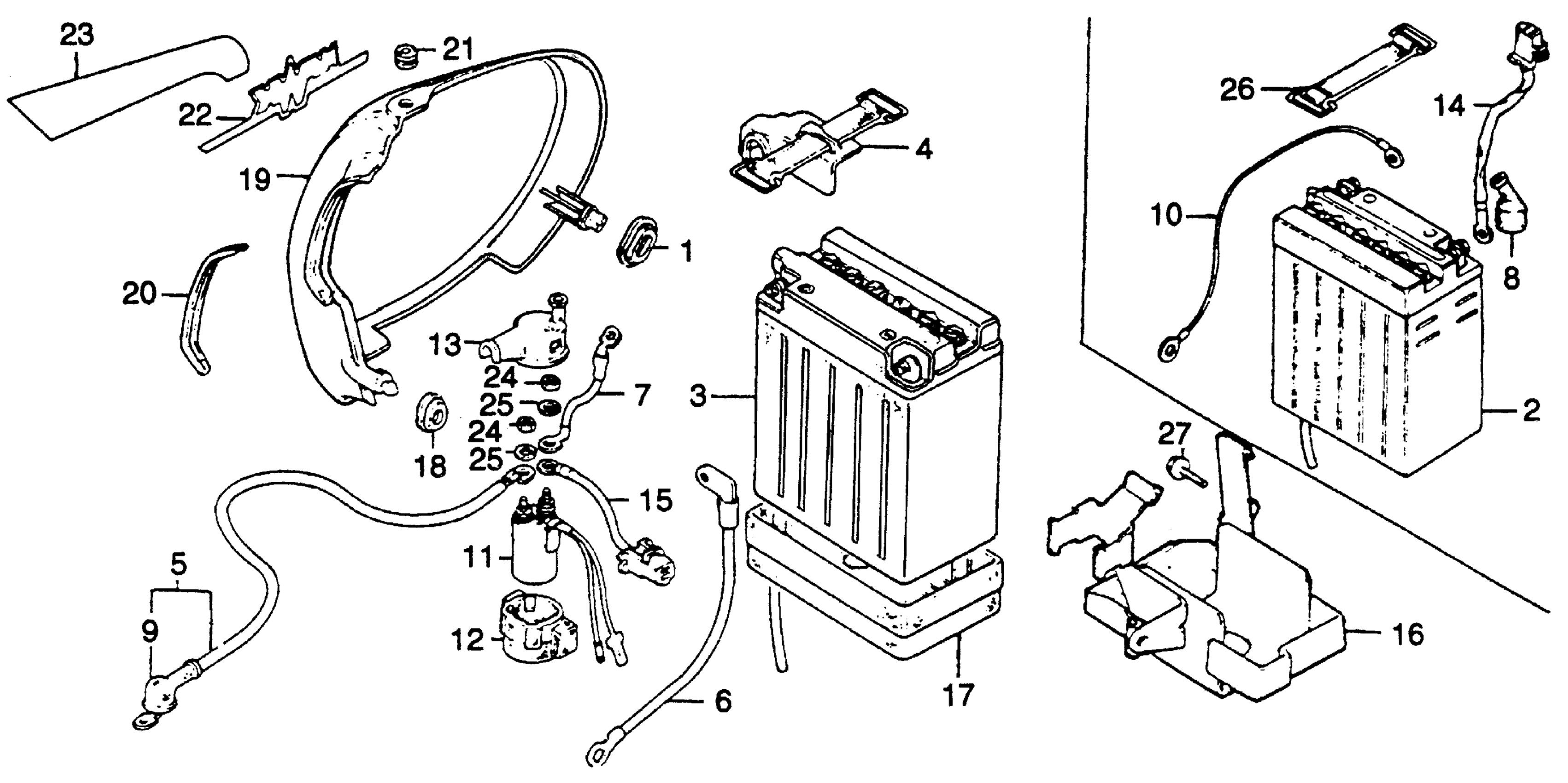

Honda CB400TIIA (79) HAWK II, JPN, VIN# CB400T-4100006 RIGHT SIDE COVER + BATTERY Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

3

BATTERY (12V12)

31500-MN2-672

Unavailable

3

BATTERY (12V12) This part replaces 31500-413-601.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 31500-413-721.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 31500-413-722.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 31500-413-771.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 31500-413-942.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 31500-426-771.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 31500-447-771.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 31500-460-671.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 31500-460-677.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 35100-MN2-673.

31500-460-672AH

Unavailable

4

COVER ASSY., BATTERY (NOT AVAILABLE)

31560-413-000

Unavailable

5

CABLE, STARTER MOTOR (NOT AVAILABLE) This part replaces 32310-413-000.

32410-MC9-830

Unavailable

5

CABLE, STARTER MOTOR (NOT AVAILABLE) This part replaces 32410-413-000.

32410-MC9-830

Unavailable

6

CABLE ASSY., BATTERY GROUND This part replaces 32350-413-000.

32601-413-000

Unavailable

6

CABLE ASSY., BATTERY GROUND

32601-413-000

Unavailable

7

CABLE This part replaces 32401-413-000.

32401-413-880

Unavailable

9

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

9

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

11

SWITCH ASSY., STARTER MAGNETIC | Use up to Frame SN 4100000

35850-375-000

Unavailable

11

SWITCH ASSY., STARTER MAGNETIC | Use from Frame SN 4100001

35850-431-007

Unavailable

12

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

12

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

13

COVER, MAGNETIC SWITCH (NOT AVAILABLE) This part replaces 35857-413-000.

35857-413-010

Unavailable

13

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-413-010

Unavailable

15

CABLE, MAGNETIC SUB (NOT AVAILABLE)

35858-413-000

Unavailable

16

TRAY, BATTERY (NOT AVAILABLE)

50325-413-000

Unavailable

17

RUBBER, BATTERY | Use up to Frame SN 4100000 This part replaces 50326-413-780.

50326-413-781

Unavailable

17

RUBBER, BATTERY

50326-413-781

Unavailable

18

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

19

COVER, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83640-413-870ZA

Unavailable

19

COVER, R. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83640-413-870ZB

Unavailable

20

MOLDING B, R. SIDE COVER (NOT AVAILABLE)

83603-413-870

Unavailable

21

GROMMET, SIDE COVER SETTING

83705-413-000

$4.17

22

EMBLEM, R. SIDE COVER *A59* (SPECIFIED GREEN, BLACK, WHITE AND SPECIFIED GOLD) (NOT AVAILABLE)

87126-417-870ZA

Unavailable

22

EMBLEM, R. SIDE COVER *A60* (SPECIFIED ORANGE, BLACK, WHITE AND SPECIFIED GOLD) (NOT AVAILABLE)

87126-417-870ZB

Unavailable

24

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

24

NUT, HEX. (6MM)

94002-06080-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

25

WASHER, SPRING (6MM)

94111-06800

$1.49

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

27

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
