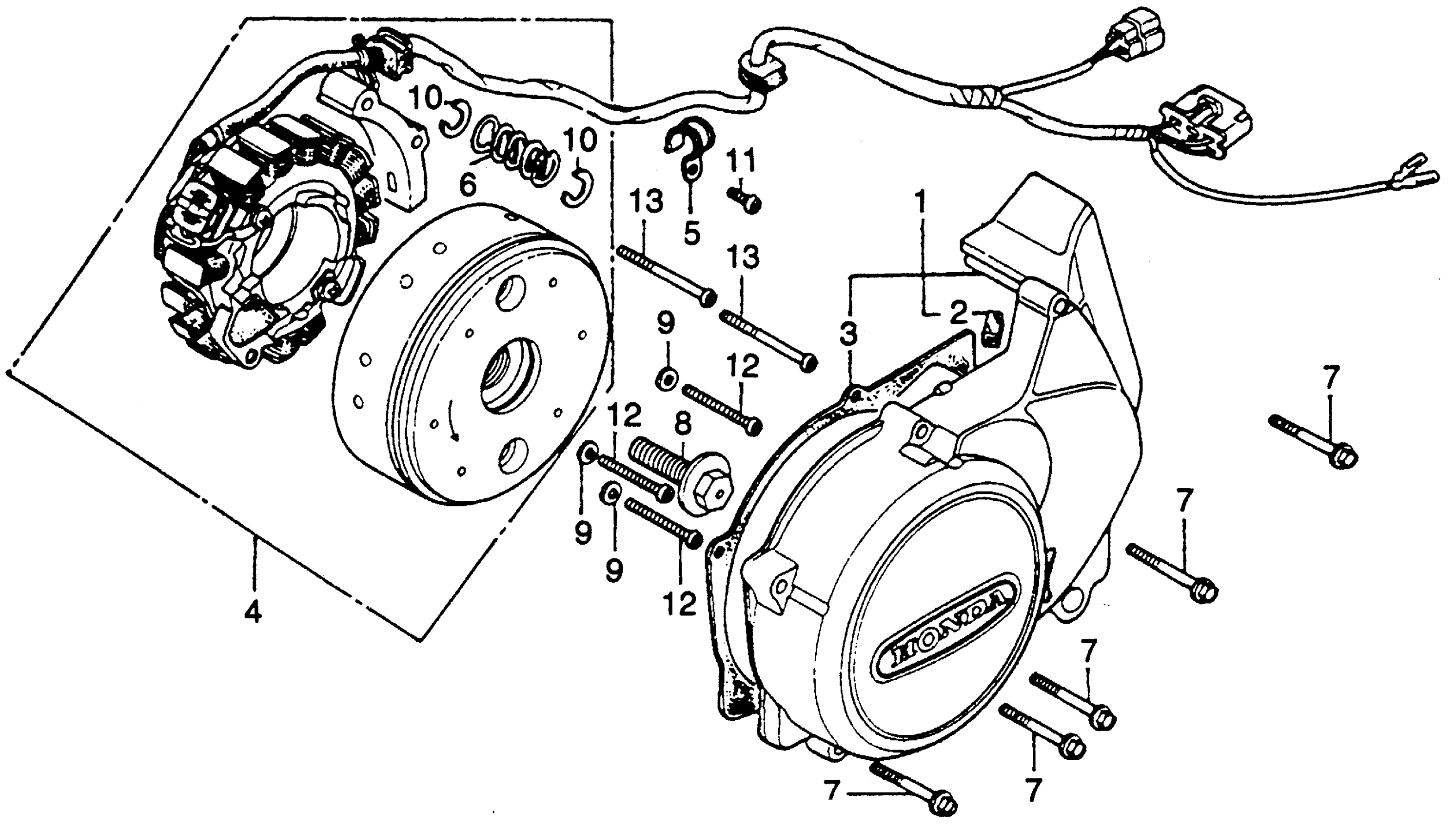

Honda CB400TIIA (79) HAWK II, JPN, VIN# CB400T-4100006 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11360-413-670

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11492-413-300.

11492-413-306

Unavailable

GASKET, L. CRANKCASE COVER

11492-413-306

Unavailable

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE) | Use up to Engine SN 4103394 This part replaces 31100-413-015.

31100-413-025

Unavailable

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE)

31100-413-025

Unavailable

CLIP, ALTERNATOR CABLE

32921-039-000

$4.75

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

BOLT, FLANGE (6X35) This part replaces 90006-HA7-670.

96001-06035-00

$1.49

BOLT, FLANGE (6X35) This part replaces 90007-413-000.

96001-06035-00

$1.49

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (12X40) (NOT AVAILABLE) | Use up to Engine SN 4100285

90023-329-000

Unavailable

BOLT, FLANGE (12X45) | Use from Engine SN 4100286 This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45) | Use from Engine SN 4100286 This part replaces 90023-428-000.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45) | Use from Engine SN 4100286

90024-MT3-000

Unavailable

WASHER, THRUST (12MM) (NOT AVAILABLE)

90457-333-000

Unavailable

WASHER This part replaces 90529-355-000.

90533-292-303

Unavailable

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

SCREW, PAN (6X45)

93500-06045-0A

$1.49
