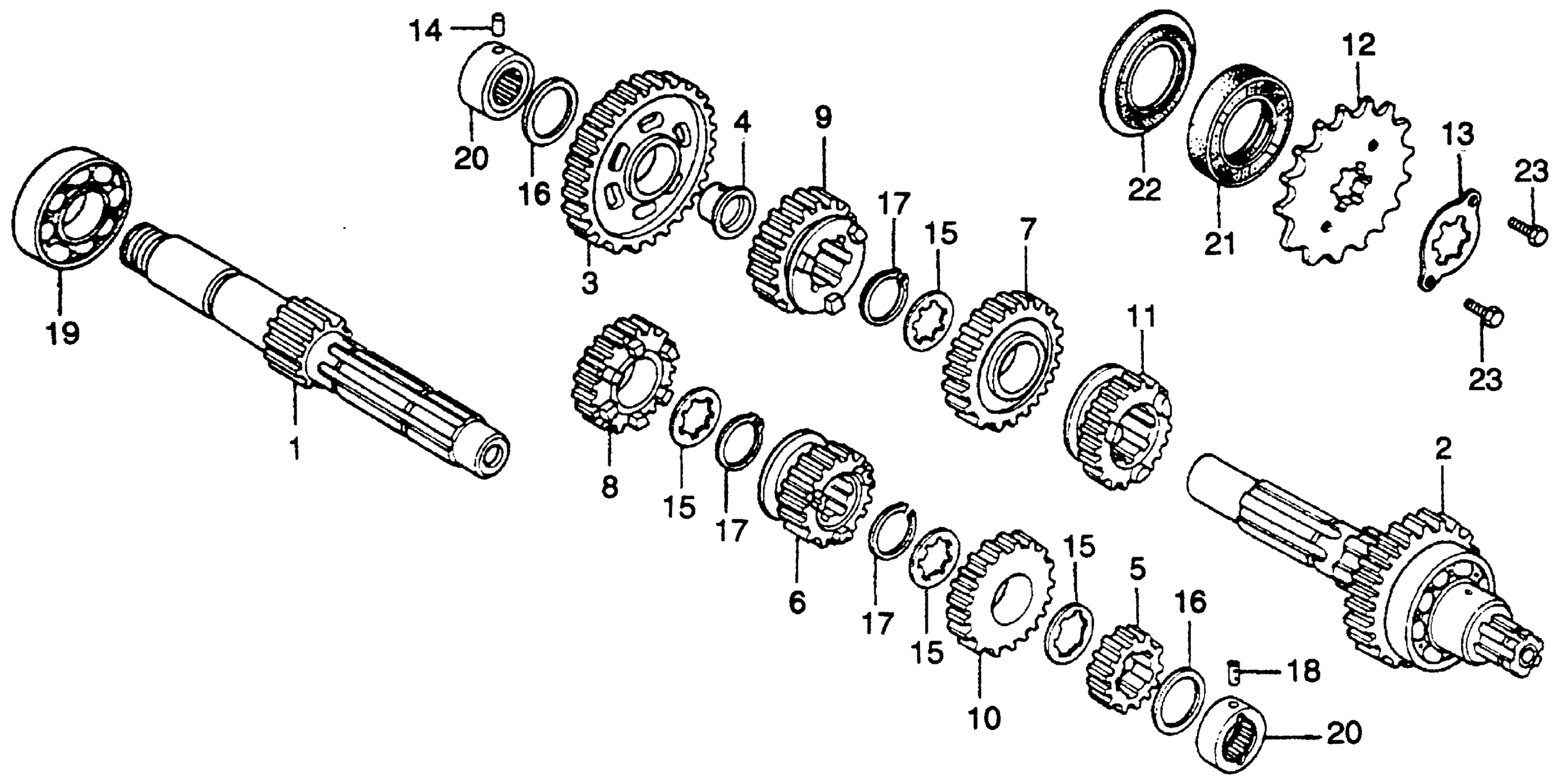

Honda CB400TIA (79) HAWK I, JPN, VIN# CB400T-2100006 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (15T) (NOT AVAILABLE)

23211-413-010

Unavailable

COUNTERSHAFT (37T)

23220-413-010

Unavailable

GEAR, COUNTERSHAFT FIRST (41T) (NOT AVAILABLE)

23421-413-000

Unavailable

BUSH (20MM) (NOT AVAILABLE)

23422-413-000

Unavailable

GEAR, MAINSHAFT SECOND (20T)

23431-413-000

Unavailable

GEAR, MAINSHAFT THIRD (24T)

23451-413-000

Unavailable

GEAR, COUNTERSHAFT THIRD (34T) (NOT AVAILABLE)

23461-413-000

Unavailable

GEAR, MAINSHAFT FOURTH (27T)

23471-415-000

Unavailable

GEAR, COUNTERSHAFT FOURTH (31T)

23481-MA1-000

Unavailable

GEAR, COUNTERSHAFT FOURTH (31T) This part replaces 23481-413-000.

23481-MA1-000

Unavailable

GEAR, MAINSHAFT FIFTH (29T)

23491-415-000

Unavailable

GEAR, COUNTERSHAFT FIFTH (28T)

23501-413-000

Unavailable

SPROCKET, DRIVE (16T)

23801-344-000

Unavailable

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

WASHER, THRUST (25MM)

90451-413-000

$3.26

WASHER, THRUST (20MM)

90452-413-000

$2.53

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

PIN, BEARING SETTING (NOT AVAILABLE)

90705-413-000

Unavailable

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

BEARING, NEEDLE (20MM) (TOYO) (NOT AVAILABLE) | Use up to Engine SN 4021608

91022-377-008

Unavailable

BEARING, NEEDLE (20MM) | Use from Engine SN 4021609

91022-415-008

$52.13

OIL SEAL (34X63X12)

91206-413-003

Unavailable

OIL SEAL (34X66)

91211-393-003

$14.10

OIL SEAL (34X66) This part replaces 91211-393-005.

91211-393-003

$14.10

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
