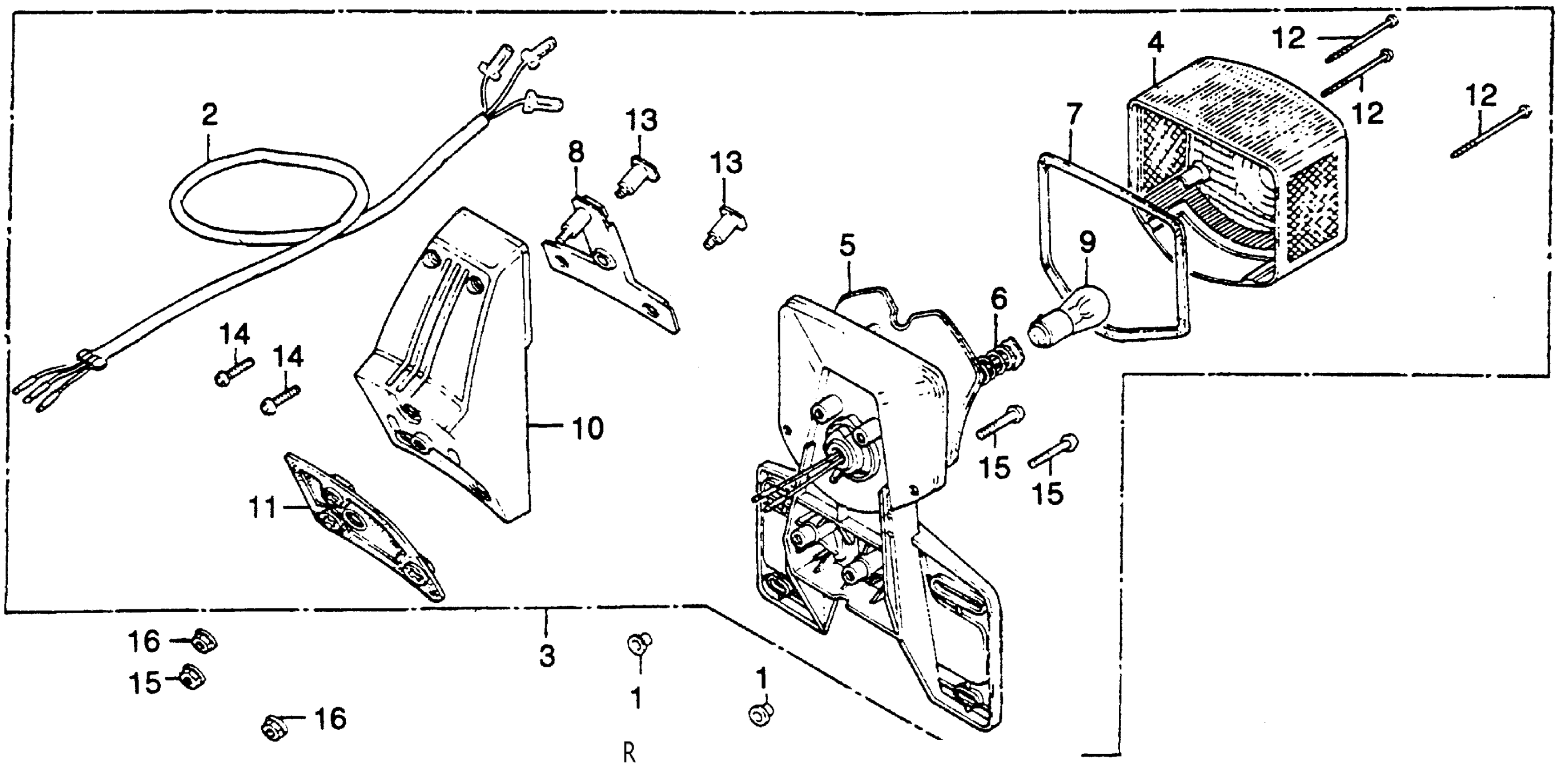

Honda CB400TIA (79) HAWK I, JPN, VIN# CB400T-2100006 TAILLIGHT Diagram

#

Description
Price

1

COLLAR, ADJUSTING COVER

11346-371-300

$10.56

2

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

32200-413-003

Unavailable

3

TAILLIGHT ASSY. (NOT AVAILABLE) This part replaces 33700-413-671.

33700-413-672

Unavailable

3

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-413-672

Unavailable

4

LENS, TAILLIGHT

33702-329-671

Unavailable

5

SOCKET, TAILLIGHT (NOT AVAILABLE) This part replaces 33703-413-671.

33703-413-672

Unavailable

5

SOCKET, TAILLIGHT (NOT AVAILABLE)

33703-413-672

Unavailable

6

WIRE, TAILLIGHT

33708-098-000

Unavailable

6

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

7

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

8

PLATE, TAILLIGHT MOUNT (NOT AVAILABLE)

33709-413-671

Unavailable

9

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

9

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

10

COVER, TAILLIGHT (NOT AVAILABLE)

84702-413-003

Unavailable

11

GASKET, TAILLIGHT COVER BASE

84707-413-003

Unavailable

12

SCREW, TAPPING (4X60)

90147-147-671

$2.70

13

BOLT A, TAILLIGHT

90165-413-671

Unavailable

14

SCREW, PAN (5X16)

93500-05016-0A

$1.49

15

SCREW, PAN (5X30)

93500-05030-0A

$1.49

16

NUT, FLANGE (6MM)

94050-06080

$1.49
