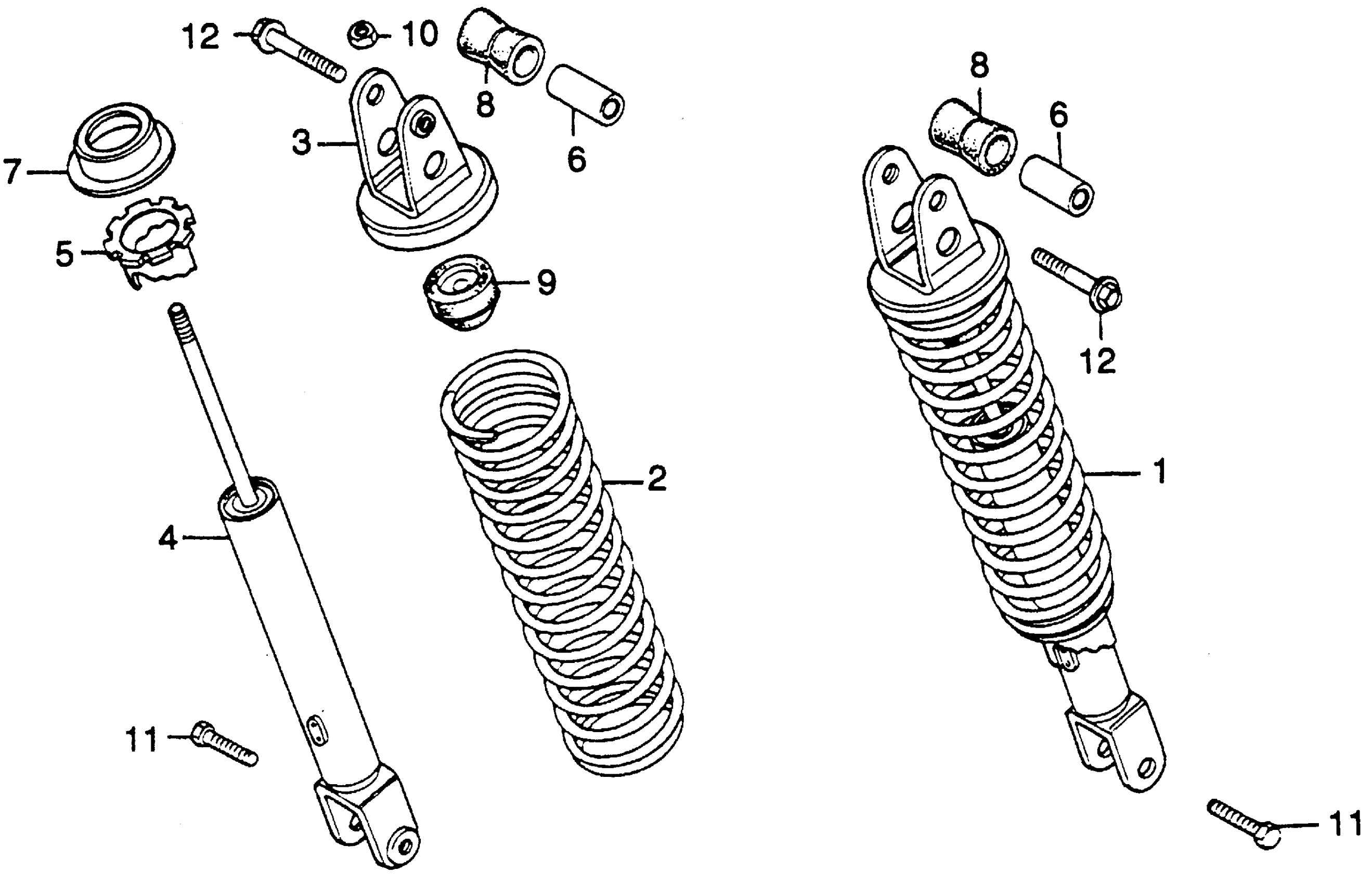

Honda CB400TIA (79) HAWK I, JPN, VIN# CB400T-2100006 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR.

52400-413-405

Unavailable

1

SHOCK ABSORBER ASSY., RR. This part replaces 52400-413-943.

52400-413-405

Unavailable

1

SHOCK ABSORBER ASSY., RR. This part replaces 52400-443-611.

52400-413-405

Unavailable

1

SHOCK ABSORBER ASSY., RR. This part replaces 52400-443-612.

52400-413-405

Unavailable

1

SHOCK ABSORBER ASSY., RR. This part replaces 52400-443-613.

52400-413-405

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) This part replaces 52401-413-003.

52401-413-013

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-413-013

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE)

52403-443-611

Unavailable

4

DAMPER, RR. (NOT AVAILABLE) This part replaces 52410-443-611.

52410-443-612

Unavailable

4

DAMPER, RR. (NOT AVAILABLE)

52410-443-612

Unavailable

5

ADJUSTER, SPRING (NOT AVAILABLE)

52422-404-003

$18.64

6

COLLAR, RR. SHOCK ABSORBER SETTING

52450-413-000

Unavailable

7

SEAT, SPRING (LOWER) (NOT AVAILABLE)

52458-443-611

Unavailable

8

RUBBER, RR. SHOCK ABSORBER JOINT (NOT AVAILABLE)

52484-413-010

Unavailable

9

RUBBER, STOPPER

52517-404-003

$5.70

10

NUT, HEX. (10MM)

94002-10000-0S

$4.06

11

BOLT, HEX. (10X32) This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable

11

BOLT, HEX. (10X32) This part replaces 93100-10032-0A.

93101-10032-0A

Unavailable

11

WASHER, PLAIN (10MM)

94101-10000

$1.49

11

WASHER, FLAT (10MM)

94102-10200

Unavailable

12

BOLT, HEX. (10X45) (NOT AVAILABLE)

92000-10045-0B

Unavailable
