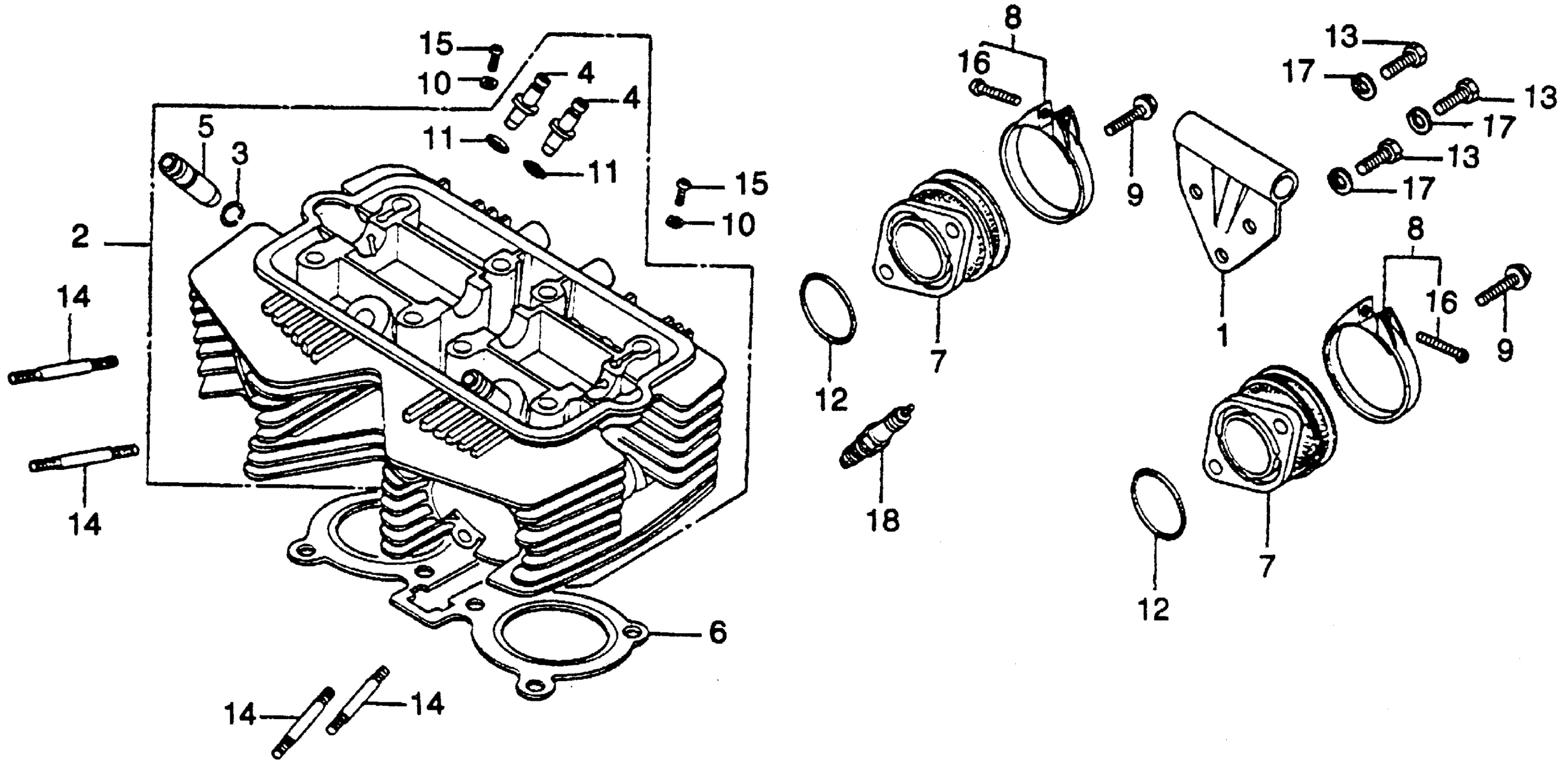

Honda CB400TIA (79) HAWK I, JPN, VIN# CB400T-2100006 CYLINDER HEAD Diagram

#

Description
Price

1

PLATE, ENGINE HANGER (NOT AVAILABLE)

11851-413-000

Unavailable

2

CYLINDER HEAD This part replaces 12200-413-000.

12200-413-890

Unavailable

2

CYLINDER HEAD

12200-413-890

Unavailable

3

CLIP, VALVE GUIDE

12211-250-310

$4.39

4

GUIDE, VALVE This part replaces 12021-426-405.

12204-KW1-405

$11.52

4

GUIDE, VALVE This part replaces 12231-413-305.

12204-KW1-405

$11.52

5

GUIDE, EX. VALVE

12241-413-305

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-413-000.

12251-413-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-413-003.

12251-413-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-413-004.

12251-413-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-413-013.

12251-413-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-413-014.

12251-413-306

Unavailable

6

GASKET, CYLINDER HEAD

12251-413-306

Unavailable

7

INSULATOR, CARBURETOR

16211-413-000

Unavailable

8

BAND, INSULATOR

16219-ME9-000

$10.37

8

BAND, INSULATOR This part replaces 16223-413-000.

16219-ME9-000

$10.37

9

BOLT, FLANGE (6X18) This part replaces 90008-413-000.

96001-06018-00

$1.80

9

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

9

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

10

WASHER, SEALING (5MM)

90452-323-000

$1.59

11

O-RING (10X1.6)

91301-200-000

$3.01

12

O-RING (40X2.4)

91325-413-830

$8.72

12

O-RING (40X2.4) This part replaces 91325-567-005.

91325-413-830

$8.72

13

BOLT, HEX. (8X18) (NOT AVAILABLE)

92000-08018-0H

Unavailable

14

BOLT, STUD (6X65) This part replaces 92700-06065.

92700-06065-0B

$1.49

14

BOLT, STUD (6X65)

92700-06065-0B

$1.49

15

SCREW, PAN (5X8)

93500-05008-0H

$1.49

16

SCREW, PAN (5X20)

93500-05020-0G

$1.49

17

WASHER, SPRING (8MM)

94111-08800

$1.49

18

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

18

SPARK PLUG (X24ES-U) (DENSO)

98069-58727

$2.20
