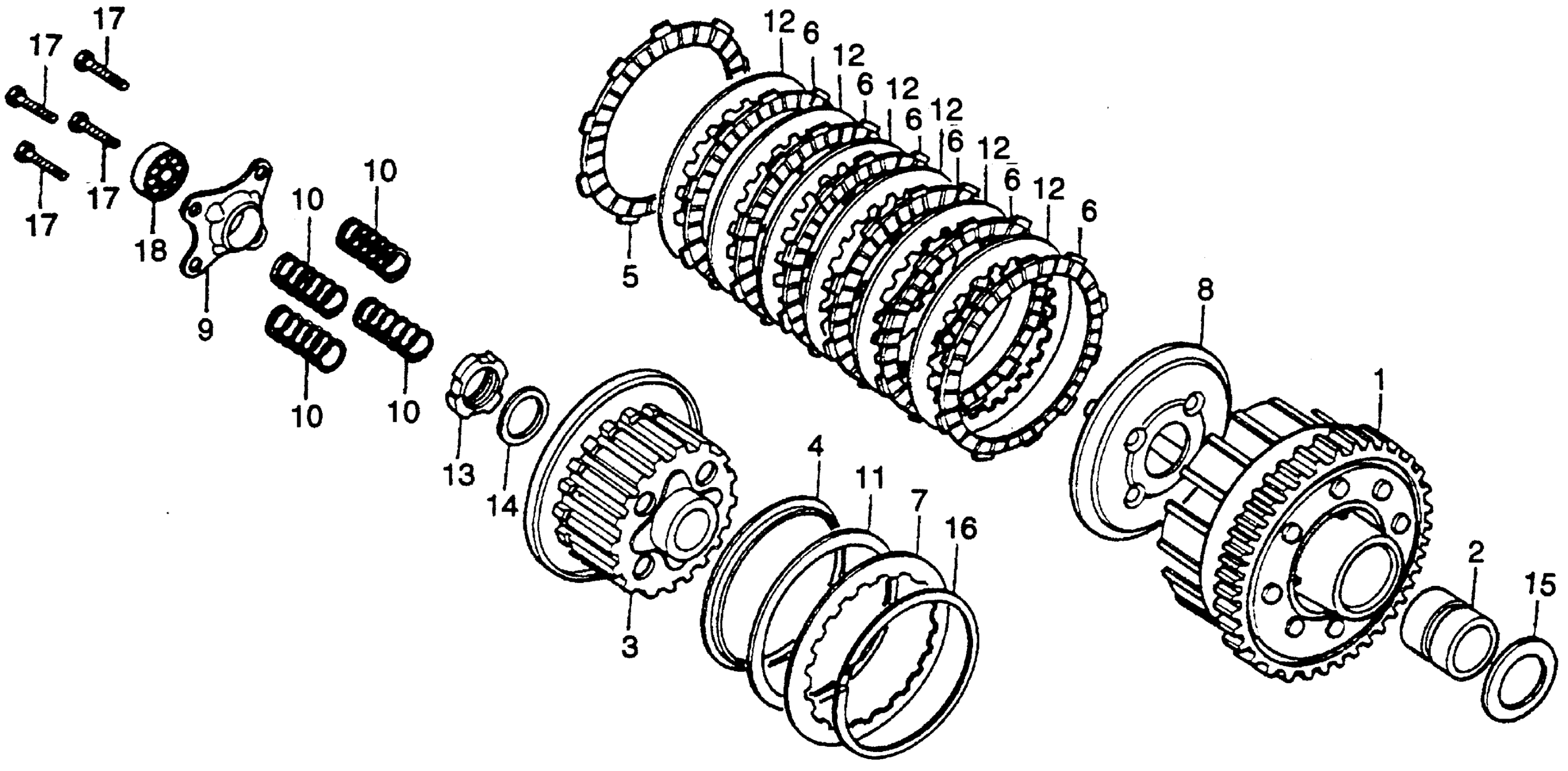

Honda CB400TIA (79) HAWK I, JPN, VIN# CB400T-2100006 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22100-413-010

Unavailable

2

GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)

22116-413-000

Unavailable

3

CENTER, CLUTCH

22120-413-000

Unavailable

4

SEAT, DISK SPRING

22125-333-000

Unavailable

5

DISK B, CLUTCH FRICTION This part replaces 22201-302-000.

22202-ML4-611

$18.13

5

DISK B, CLUTCH FRICTION This part replaces 22202-ML4-610.

22202-ML4-611

$18.13

5

DISK B, CLUTCH FRICTION

22202-ML4-611

$18.13

6

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

6

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

7

PLATE B, CLUTCH

22321-333-010

Unavailable

8

PLATE, CLUTCH PRESSURE

22350-413-000

Unavailable

9

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-413-010

Unavailable

10

SPRING, CLUTCH

22401-413-000

Unavailable

11

SPRING, DISK

22402-333-003

Unavailable

12

PLATE A, CLUTCH

23311-413-000

$11.30

13

NUT, LOCK (20MM) (NOT AVAILABLE)

90204-706-000

Unavailable

14

WASHER, LOCK

90432-121-000

$4.21

15

WASHER, THRUST (25X42X2.3)

90459-413-000

Unavailable

16

CLIP (OUTER) (94MM) (NOT AVAILABLE)

90609-413-000

Unavailable

17

BOLT, HEX. (6X25) This part replaces 92023-06025.

92025-06025-0A

$1.49

17

BOLT, HEX. (6X25) This part replaces 92023-06025-0A.

92025-06025-0A

$1.49

17

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

18

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

18

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
