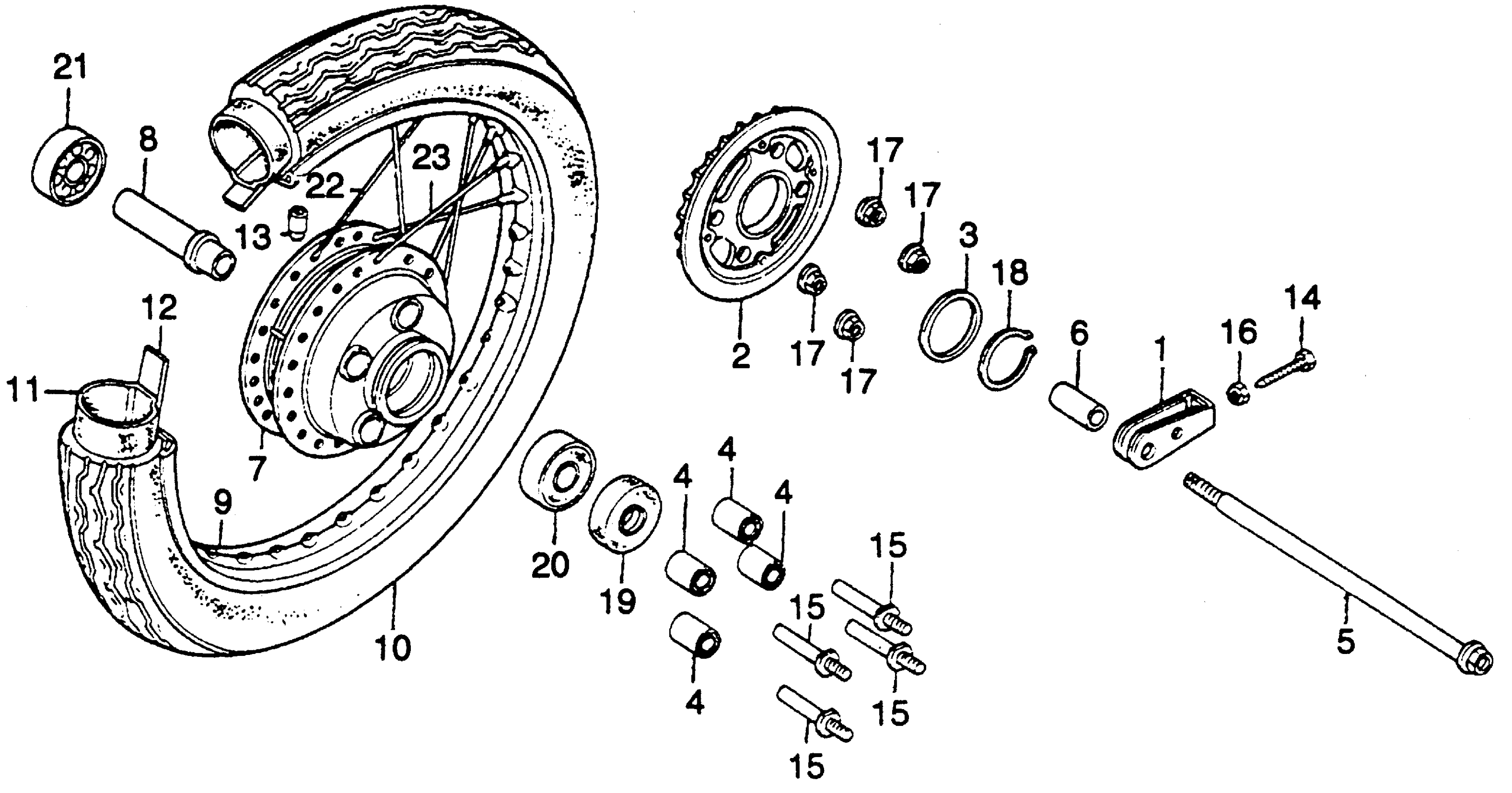

Honda CB400TIA (79) HAWK I, JPN, VIN# CB400T-2100006 CB40TI REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-312-010.

40543-471-000

Unavailable

1

ADJUSTER, DRIVE CHAIN

40543-471-000

Unavailable

2

SPROCKET, FINAL DRIVEN (37T) (NOT AVAILABLE)

41200-413-000

Unavailable

3

WASHER (70MM)

41202-286-000

Unavailable

4

BUSH, RR. WHEEL DAMPER

41241-283-010

Unavailable

5

AXLE, RR. WHEEL

42301-413-000

Unavailable

6

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-413-000

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE)

42601-413-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42624-413-000

Unavailable

9

RIM, RR. WHEEL

42701-413-671

Unavailable

10

TIRE, RR. (4.10S-18) (YOKOHAMA) (NOT AVAILABLE)

42711-413-671

Unavailable

10

TIRE, RR. (4.10S-18) (BS) (NOT AVAILABLE)

42711-413-672

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 08400-31300.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 08400-44600.

42712-446-631

Unavailable

11

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 42712-286-000.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 42712-287-000.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 42712-437-970.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18) This part replaces 42712-437-971.

42712-446-631

Unavailable

11

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

12

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

12

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-286-003.

42713-304-003

$6.69

12

FLAP, TIRE (1.40/1.60-18) (BS)

42713-304-003

$6.69

12

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-389-009.

42713-304-003

$6.69

13

BALANCER, WHEEL (20G)

44606-283-000

$8.89

13

BALANCER, WHEEL (15G)

44607-283-000

$8.08

13

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

13

BALANCER, WHEEL (5G)

44609-283-000

$3.93

14

BOLT, CHAIN ADJUSTING

90119-413-000

$3.69

15

BOLT, SPROCKET FIXING

90128-KE5-000

Unavailable

15

BOLT, SPROCKET FIXING This part replaces 90128-369-000.

90128-KE5-000

Unavailable

16

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

17

NUT, HEX. (10MM)

90308-357-000

$4.85

18

CIRCLIP (OUTER) (69MM) (NOT AVAILABLE)

90665-286-000

Unavailable

19

DUST SEAL (30X55X7) (NOT AVAILABLE)

91253-413-003

Unavailable

19

DUST SEAL (30X55X7) (NOT AVAILABLE) This part replaces 91253-413-004.

91253-413-003

Unavailable

20

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40

21

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

22

SPOKE B (9X160.5)

97451-52161

Unavailable

23

SPOKE B (9X160.0)

97742-52160

Unavailable
