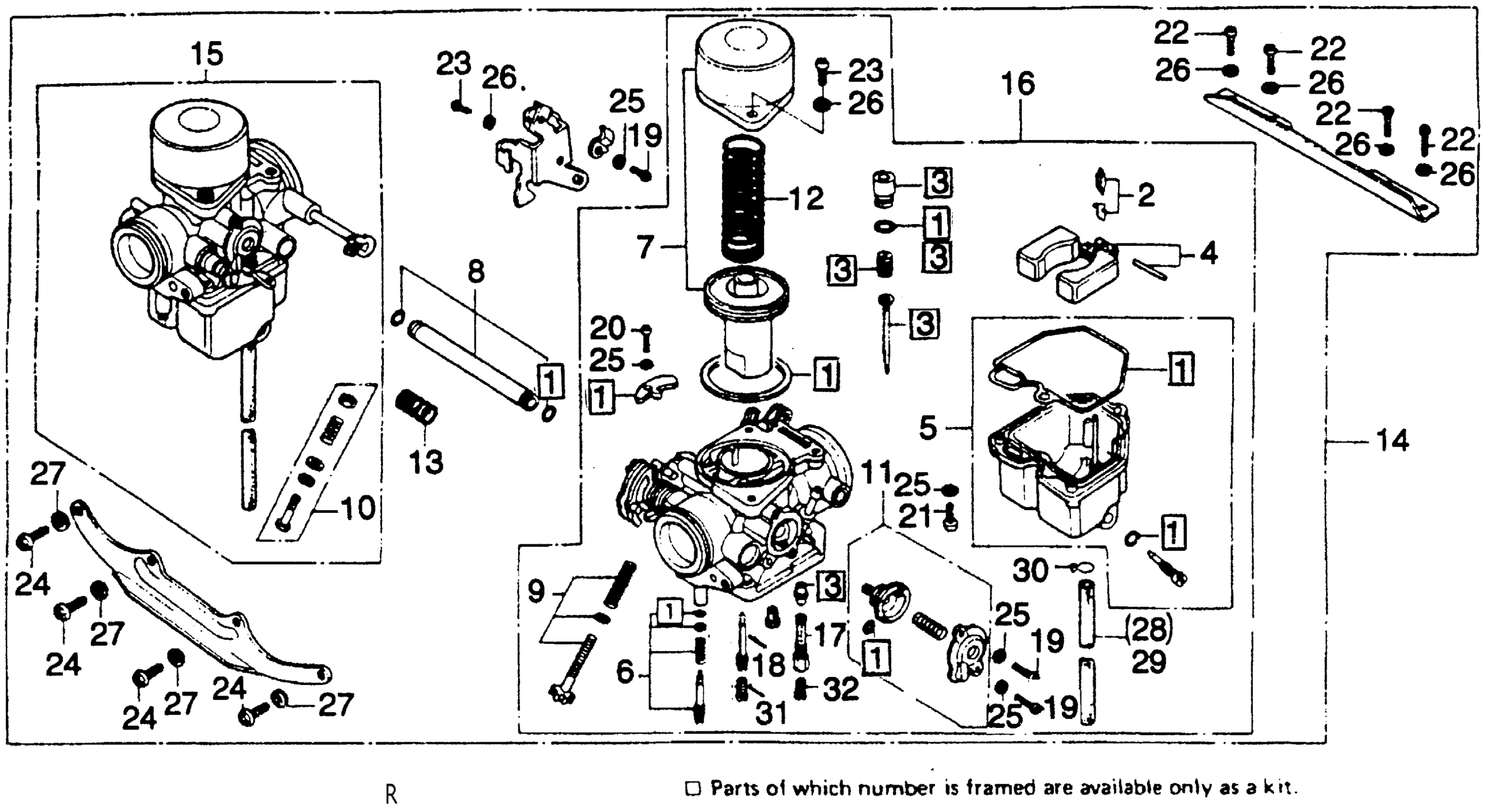

Honda CB400TIA (79) HAWK I, JPN, VIN# CB400T-2100006 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-413-004.

16010-413-305

Unavailable

1

GASKET SET

16010-413-305

Unavailable

2

VALVE SET, FLOAT | Use up to Engine SN VB21B A This part replaces 16011-KG0-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use up to Engine SN VB21B A This part replaces 16011-382-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use from Engine SN 2102195 This part replaces 16011-382-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use up to Engine SN VB21B A This part replaces 16011-393-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE) | Use from Engine SN VB21B A

16012-413-004

$35.82

4

FLOAT SET

16013-679-005

Unavailable

5

CHAMBER SET, FLOAT This part replaces 16015-413-004.

16015-425-871

Unavailable

5

CHAMBER SET, FLOAT

16015-425-871

Unavailable

6

SCREW SET This part replaces 16016-364-780.

16016-463-661

$21.40

6

SCREW SET

16016-463-661

$21.40

7

PISTON SET, VACUUM This part replaces 16022-413-004.

16044-425-771

Unavailable

7

PISTON SET, VACUUM

16044-425-771

Unavailable

8

JOINT SET, FUEL (NOT AVAILABLE)

16026-413-004

Unavailable

9

SCREW SET B (NOT AVAILABLE)

16028-413-004

Unavailable

10

SCREW SET C

16029-PC6-005

Unavailable

10

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

11

VALVE SET, AIR CUT

16048-413-004

Unavailable

12

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-413-004

Unavailable

13

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16051-413-004

Unavailable

15

CARBURETOR ASSY., R. (NOT AVAILABLE) | Use from Engine SN VB21B B

16101-413-024

Unavailable

16

CARBURETOR ASSY., L. (NOT AVAILABLE) | Use from Engine SN VB21B B

16102-413-024

Unavailable

17

HOLDER, NEEDLE JET This part replaces 16165-413-004.

16165-449-771

$31.28

17

HOLDER, NEEDLE JET

16165-449-771

$31.28

18

NOZZLE, MAIN (NOT AVAILABLE)

16166-413-004

Unavailable

19

SCREW, PAN (4X12)

93500-04012-0H

$1.49

20

SCREW, PAN (4X14)

93500-04014-0H

$1.49

21

SCREW, PAN (4X16)

93500-04016-0H

$1.49

22

SCREW, PAN (5X12)

93500-05012-0H

$1.49

23

SCREW, PAN (5X16)

93500-05016-0H

$1.49

24

SCREW, PAN (6X16)

93500-06016-0H

$1.49

24

SCREW, PAN (6X16) This part replaces 93500-06016-08.

93500-06016-0H

$1.49

25

WASHER, SPRING (4MM)

94111-04800

$1.49

26

WASHER, SPRING (5MM)

94111-05800

$1.49

27

WASHER, SPRING (6MM)

94111-06800

$1.49

28

BULK HOSE, FUEL (3.5X3000) (3.5X360)

95001-35003-60M

$20.85

29

BULK HOSE, FUEL (3.5X3000) (3.5X480)

95001-35003-60M

$20.85

30

CLIP, TUBE (C6.5)

95002-35000

$1.49

31

JET,MAIN,#75 This part replaces 99101-393-0750.

99101-166-0750

Unavailable

32

JET, MAIN (#105)

99101-GHB-1050

$6.40

32

JET, MAIN (#105) This part replaces 99101-393-1050.

99101-GHB-1050

$6.40

32

JET, MAIN (#105) This part replaces 99102-393-1050.

99101-GHB-1050

$6.40
