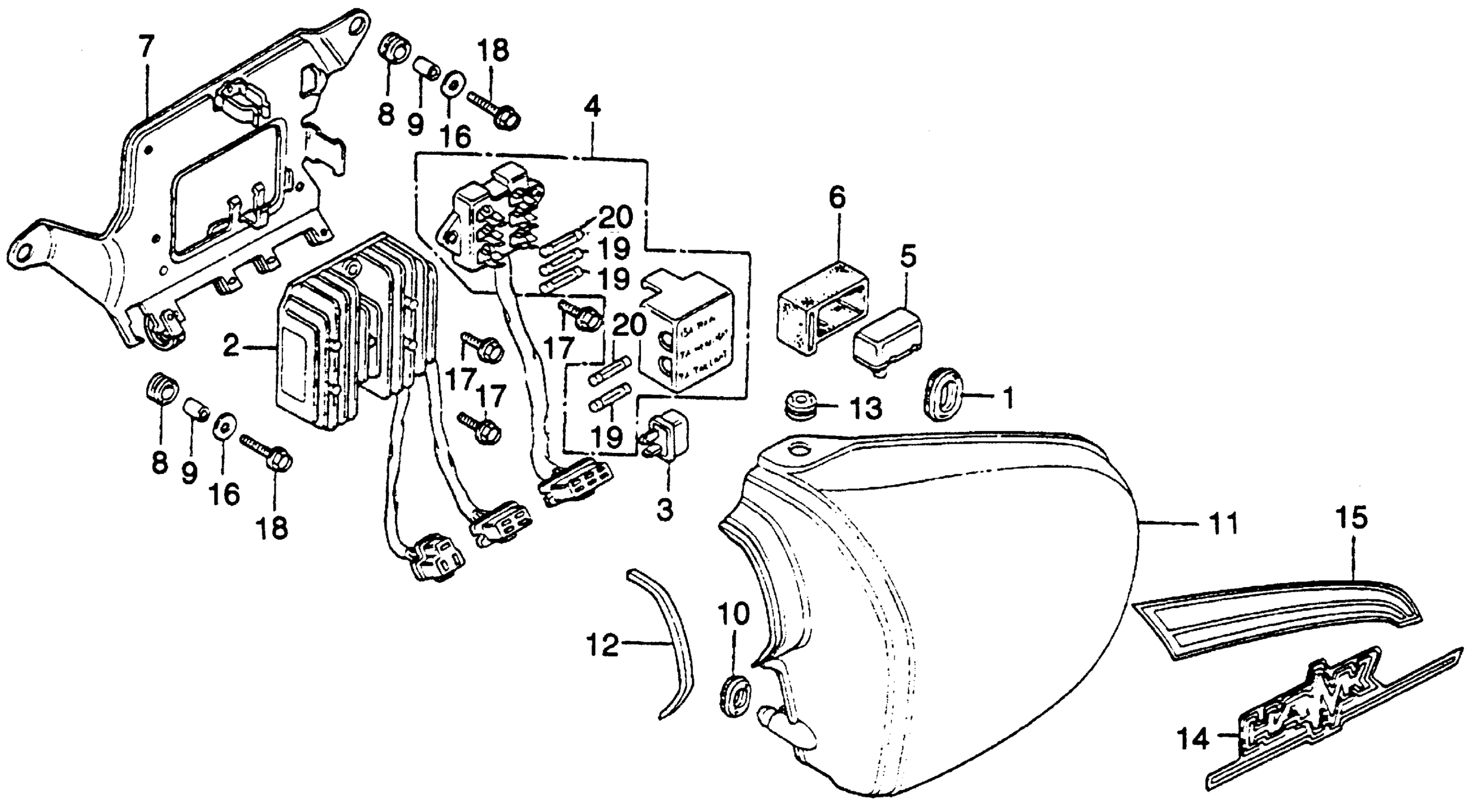

Honda CB400TIA (78) HAWK I, JPN, VIN# CB400T-2000022 LEFT SIDE COVER + RECTIFIERFUSE Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

RECTIFIER ASSY., REGULATOR

31600-KV8-681

Unavailable

2

RECTIFIER ASSY., REGULATOR This part replaces 31600-413-008.

31600-KV8-681

Unavailable

4

BOX ASSY., FUSE (NOT AVAILABLE)

38200-413-003

Unavailable

5

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

5

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

5

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

5

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

6

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE) | Use up to Frame SN 2008893

38306-092-670

Unavailable

6

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE) | Use from Frame SN 2008894

38306-107-670

Unavailable

7

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50330-413-000

Unavailable

8

RUBBER A, RR. FENDER

80105-061-000

$4.01

9

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

9

COLLAR A, RR. FENDER

80108-061-010

$4.12

10

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

11

COVER, L. SIDE *R33* (HELIOS RED)

83700-413-000ZD

Unavailable

11

COVER, L. SIDE *NH57* (EXCEL BLACK) (NOT AVAILABLE)

83700-413-000ZE

Unavailable

12

MOLDING, L. SIDE COVER (NOT AVAILABLE)

83702-413-000

Unavailable

18

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

20

FUSE B (15A)

98200-21500

$1.49
