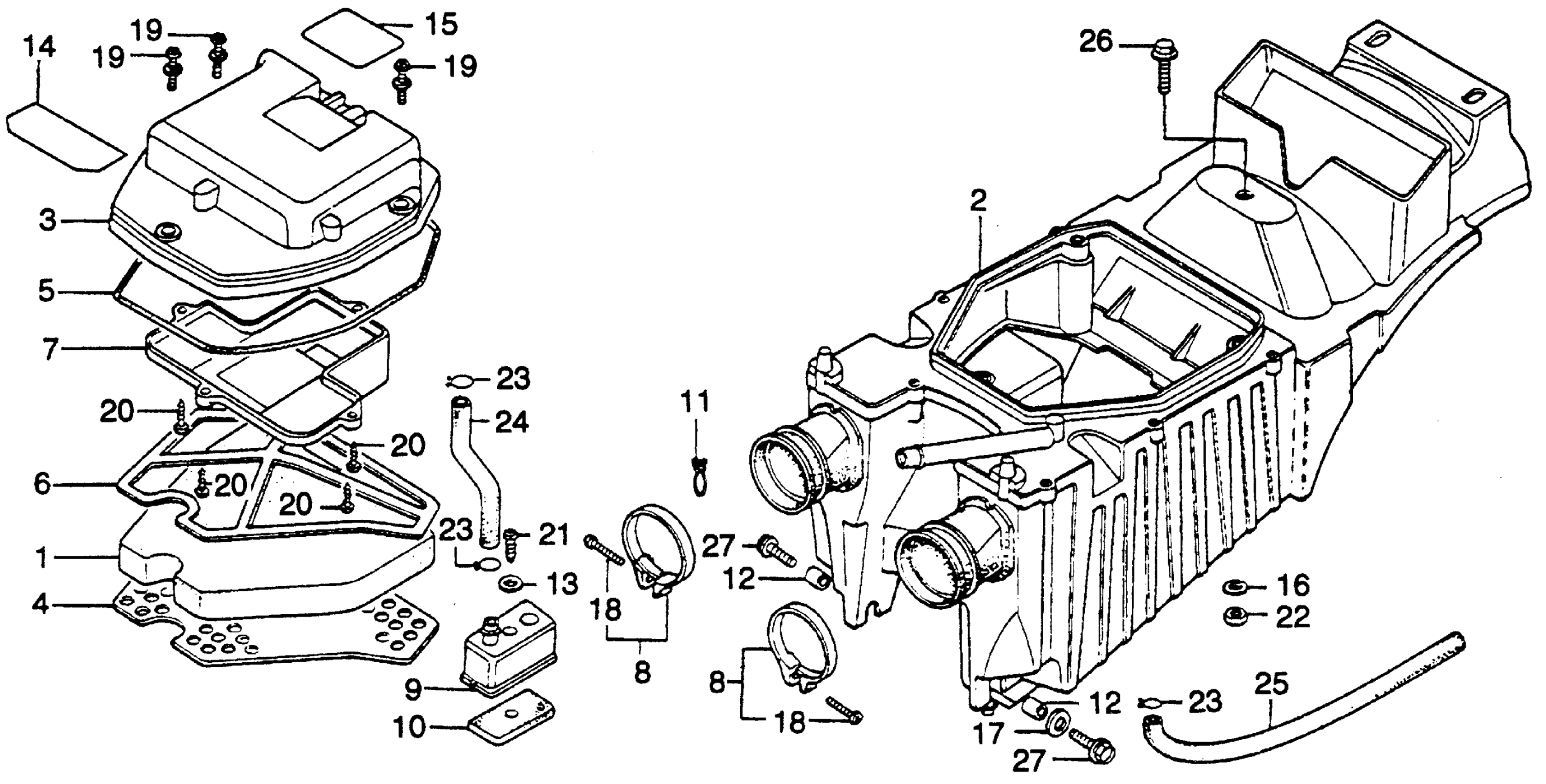

Honda CB400TIA (78) HAWK I, JPN, VIN# CB400T-2000022 AIR CLEANER I 78 Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-413-000

Unavailable

2

CASE AIR CLEANER This part replaces 17214-413-000.

17214-413-505

Unavailable

3

COVER, AIR CLEANER HOUSING

17217-413-000

Unavailable

4

PLATE A, ELEMENT SETTING (NOT AVAILABLE)

17218-413-000

Unavailable

5

SEAL, AIR CLEANER COVER

17219-413-000

$5.60

6

PLATE B, ELEMENT (NOT AVAILABLE)

17220-413-000

Unavailable

7

DUCT, AIR CLEANER (NOT AVAILABLE)

17222-413-000

Unavailable

8

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-358-000.

95018-60250

$6.25

8

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

9

CHAMBER, BREATHER (NOT AVAILABLE)

17261-413-000

Unavailable

10

FILTER, BREATHER (NOT AVAILABLE)

17265-413-000

Unavailable

11

CLIP, AIR HOSE (16)

18534-634-670

$5.76

12

COLLAR, METER SETTING (NOT AVAILABLE)

37243-371-008

Unavailable

13

WASHER, PLAIN (5.5MM)

37314-061-810

Unavailable

14

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

15

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-413-670

Unavailable

16

WASHER, BUMPER STAY

90304-538-000

Unavailable

17

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

17

WASHER (18MM)

90581-831-650

$1.87

18

SCREW, PAN (4X25)

93500-04025-0A

$1.93

19

SCREW-WASHER (5X25)

93891-05025-08

$1.49

19

SCREW-WASHER (5X25) This part replaces 93891-05025-18.

93891-05025-08

$1.49

20

SCREW, TAPPING (3X16)

93901-32420

$1.49

21

SCREW, TAPPING (5X16)

93901-35320

Unavailable

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

CLIP, TUBE (B12.5)

95002-02130

$1.49

24

BULK HOSE, VACUUM (8X1000) (8X180)

95005-80001-20M

$23.91

25

BULK HOSE, VACUUM (8X1000) (8X280) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

26

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

26

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

26

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

27

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

27

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
