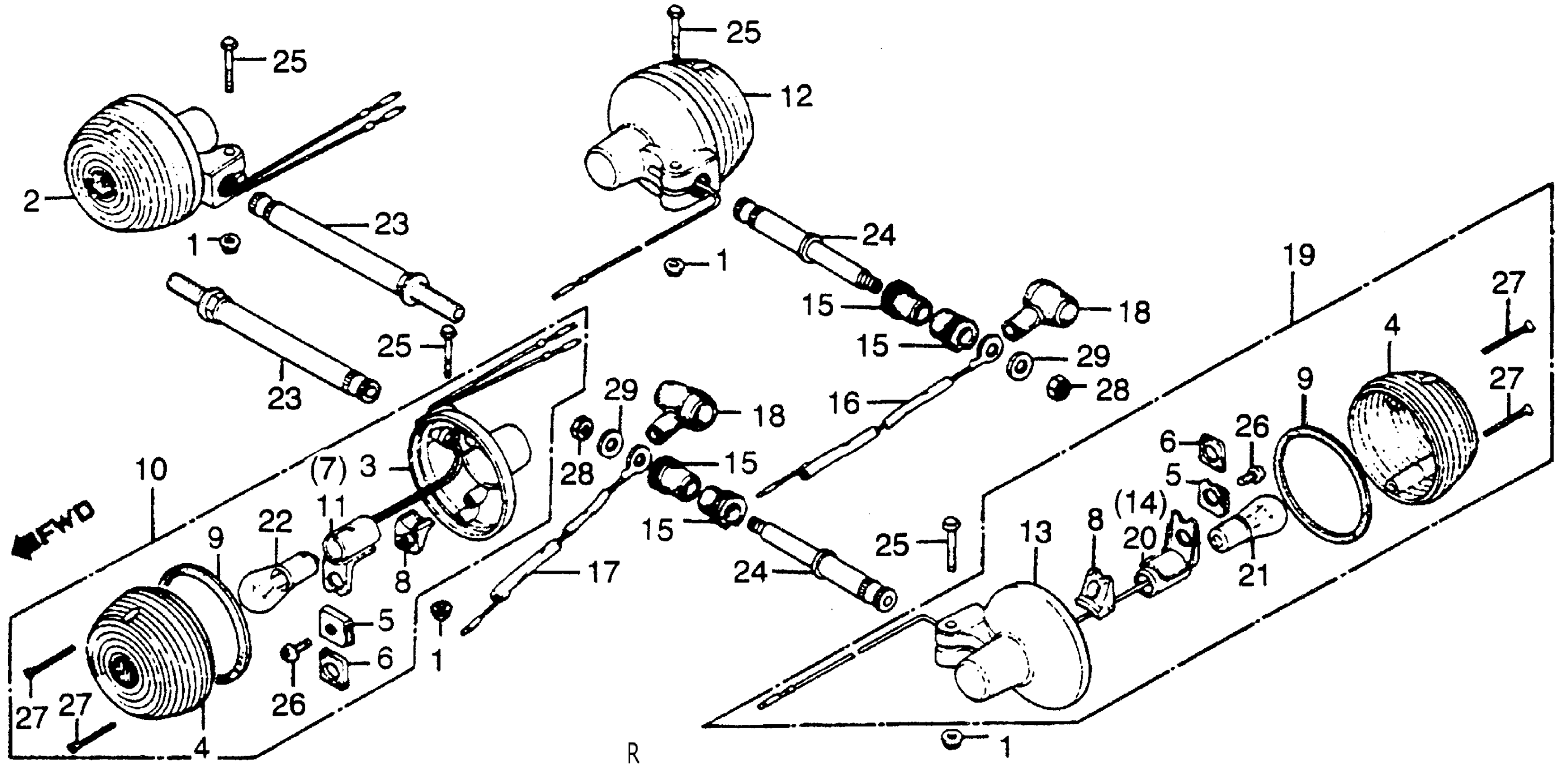

Honda CB400TA (81) HAWK, JPN, VIN# JH2NC030-BM100001 TURN SIGNAL Diagram

#

Description
Price

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE)

33400-413-671

Unavailable

3

BASE, TURN SIGNAL

33401-341-701

$39.39

4

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.92

4

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.92

5

PLATE, GROUND (NOT AVAILABLE)

33403-413-003

Unavailable

6

RUBBER, CUSHION (NOT AVAILABLE)

33404-413-003

Unavailable

7

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33405-413-671

Unavailable

8

RUBBER, TURN SIGNAL BASE CUSHION (NOT AVAILABLE)

33408-413-003

Unavailable

9

GASKET, TURN SIGNAL LENS

33443-268-671

$2.13

10

TURN SIGNAL ASSY., L. FR. This part replaces 33450-413-671.

33450-413-881

Unavailable

11

SOCKET, L. TURN SIGNAL (NOT AVAILABLE)

33455-413-671

Unavailable

12

TURN SIGNAL, R. RR. (NOT AVAILABLE) This part replaces 33600-413-003.

33600-413-009

Unavailable

12

TURN SIGNAL, R. RR. (NOT AVAILABLE)

33600-413-009

Unavailable

13

BASE, TURN SIGNAL This part replaces 33401-292-003.

33401-341-701

$39.39

13

BASE, TURN SIGNAL

33401-341-701

$39.39

14

SOCKET, R. TURN SIGNAL

33605-413-003

Unavailable

15

RUBBER, RR. TURN SIGNAL SETTING

33606-449-000

Unavailable

16

WIRE A, TURN SIGNAL GROUND

33620-413-000

Unavailable

17

WIRE B, TURN SIGNAL GROUND (NOT AVAILABLE)

33621-413-000

Unavailable

18

COVER, GROUND TERMINAL (NOT AVAILABLE)

33625-449-000

Unavailable

19

TURN SIGNAL, R. RR. (NOT AVAILABLE) This part replaces 33600-413-003.

33600-413-009

Unavailable

19

TURN SIGNAL, R. RR. (NOT AVAILABLE)

33600-413-009

Unavailable

19

TURN SIGNAL, R. RR. (NOT AVAILABLE) This part replaces 33650-413-003.

33600-413-009

Unavailable

20

SOCKET, L. TURN SIGNAL This part replaces 33655-413-003.

33660-401-721

Unavailable

20

SOCKET, L. TURN SIGNAL

33660-401-721

Unavailable

21

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

22

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

22

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

24

BOLT, RR. TURN SIGNAL

90155-413-003

Unavailable

25

BOLT, HEX. (6X25) This part replaces 93000-06025-0B.

93101-06025-0B

$2.00

25

BOLT, HEX. (6X25)

93101-06025-0B

$2.00

26

SCREW, PAN (5X8)

93500-05008-0H

$1.49

27

SCREW, OVAL (3X25)

93700-03025-0B

$1.49

28

NUT, HEX. (10MM)

94001-10000-0S

$1.49

29

WASHER, PLAIN (10MM)

94101-10000

$1.49
