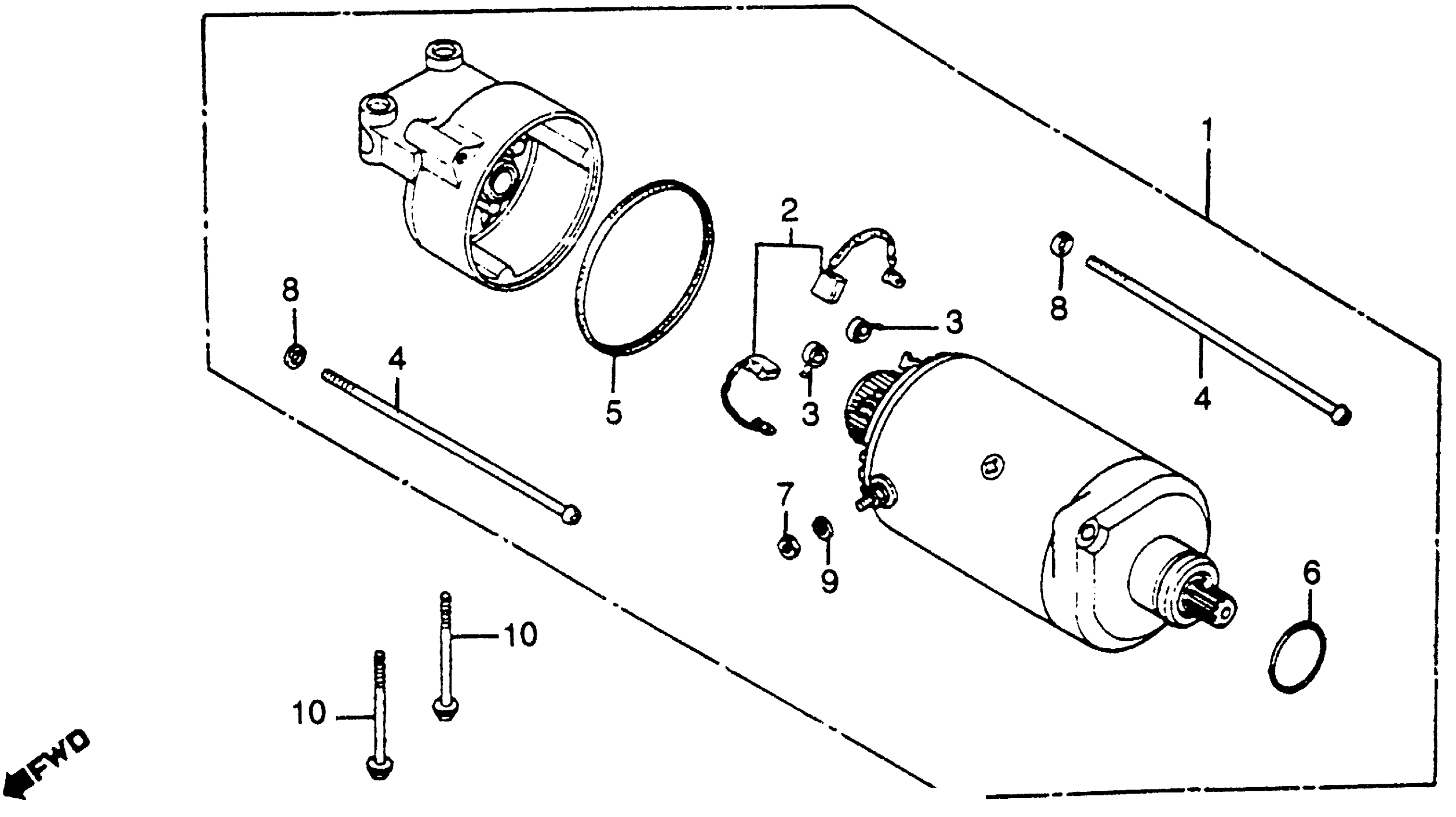

Honda CB400TA (81) HAWK, JPN, VIN# JH2NC030-BM100001 STARTER MOTOR Diagram

#

Description

Price

1

STARTER MOTOR ASSY. This part replaces 31200-413-780.

31200-413-405

Unavailable

2

BRUSH SET (MITSUBA)

31201-230-174

Unavailable

3

SPRING, BRUSH This part replaces 31204-225-154.

31204-230-174

$4.64

3

SPRING, BRUSH

31204-230-174

$4.64

4

BOLT, STARTER MOTOR COVER

31205-413-780

Unavailable

5

O-RING (60X1.4)

31206-402-008

Unavailable

6

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

$6.34

6

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

6

O-RING (24.4X3.1)

91312-MG7-003

$6.34

7

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

7

NUT, HEX. (6MM)

94002-06000-0S

$1.49

8

WASHER, SPRING (5MM)

94111-05000

$1.49

9

WASHER, SPRING (6MM)

94111-06000

$1.49

10

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

10

BOLT, FLANGE (6X60)

95701-06060-00

$1.49
