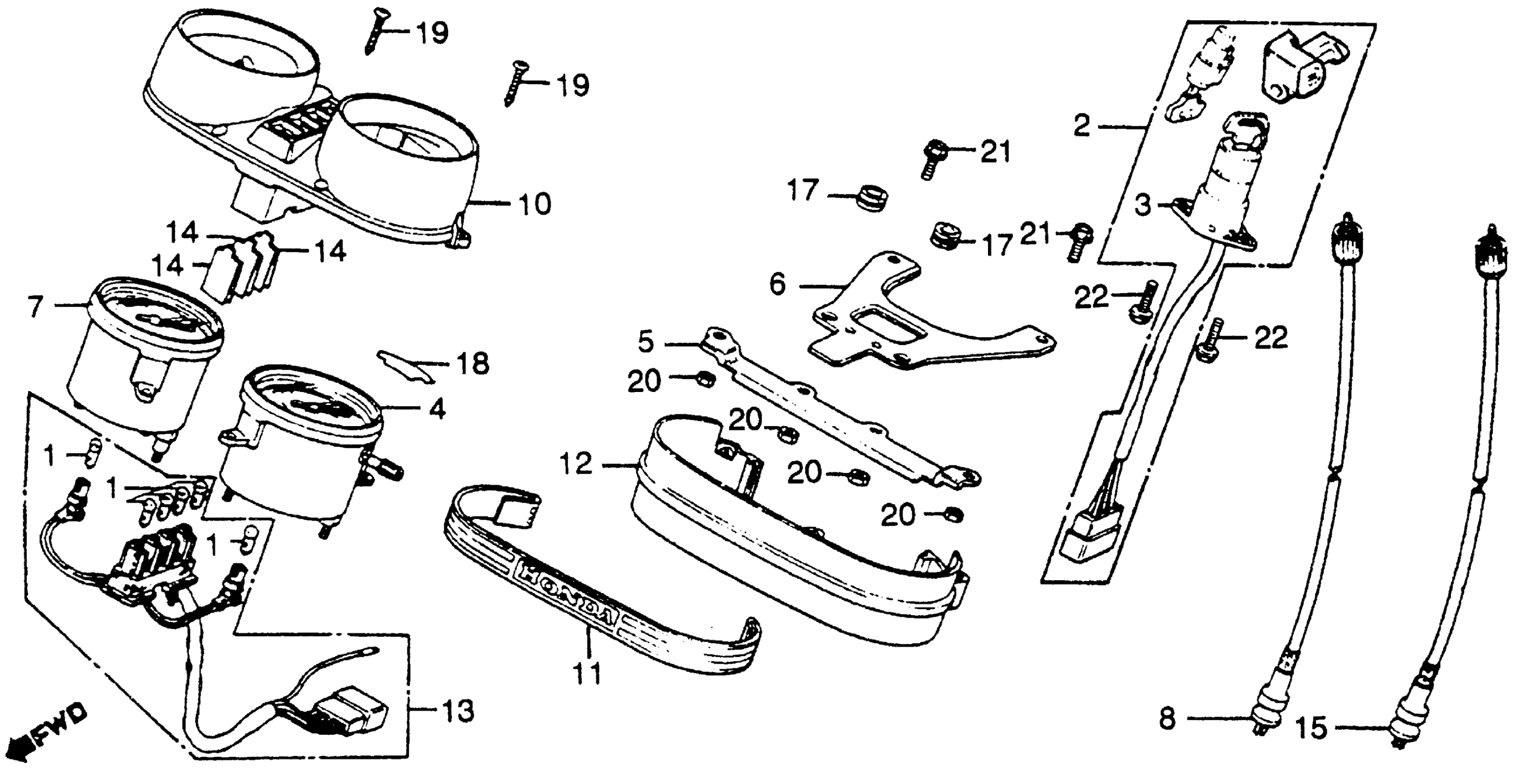

Honda CB400TA (81) HAWK, JPN, VIN# JH2NC030-BM100001 SPEEDOMETER + TACHOMETER + KEY SET Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

2

LOCK SET This part replaces 35010-413-000.

35010-413-010

Unavailable

2

LOCK SET

35010-413-010

Unavailable

3

SWITCH ASSY., COMBINATION

35100-413-007

Unavailable

4

SPEEDOMETER ASSY. (NOT AVAILABLE) | Use up to Frame SN BM102661 This part replaces 37200-413-941.

37200-ME0-670

Unavailable

4

SPEEDOMETER ASSY. (NOT AVAILABLE) This part replaces 37200-413-942.

37200-ME0-670

Unavailable

5

BRACKET, INSTRUMENT (NOT AVAILABLE)

37211-413-940

Unavailable

6

STAY, INSTRUMENT SETTING (NOT AVAILABLE)

37212-413-940

Unavailable

7

TACHOMETER ASSY. (NIPPON SEIKI) (NOT AVAILABLE)

37250-413-951

Unavailable

8

CABLE ASSY., TACHOMETER This part replaces 37260-MC9-830.

37260-MC9-860

Unavailable

8

CABLE ASSY., TACHOMETER

37260-MC9-860

Unavailable

8

CABLE ASSY., TACHOMETER This part replaces 37260-413-000.

37260-MC9-860

Unavailable

10

CASE, PILOT (UPPER) (NOT AVAILABLE) This part replaces 37610-413-008.

37610-413-018

Unavailable

10

CASE, PILOT (UPPER) (NOT AVAILABLE)

37610-413-018

Unavailable

10

CASE, PILOT (UPPER) (NOT AVAILABLE) This part replaces 37610-443-018.

37610-413-018

Unavailable

11

EMBLEM, INSTRUMENT (UPPER) (NOT AVAILABLE)

37611-413-008

Unavailable

12

CASE, PILOT (LOWER) (NOT AVAILABLE)

37617-413-008

Unavailable

13

WIRE, PILOT (NOT AVAILABLE)

37619-413-008

Unavailable

14

PLATE, PILOT CASE (NOT AVAILABLE)

37625-413-008

Unavailable

15

CABLE ASSY., SPEEDOMETER | Use up to Frame SN BM104562 This part replaces 44830-447-000.

44830-KB4-700

Unavailable

15

CABLE ASSY., SPEEDOMETER

44830-KB4-700

Unavailable

15

CABLE ASSY., SPEEDOMETER | Use up to Frame SN BM104562

44830-KB4-700

Unavailable

15

CABLE ASSY., SPEEDOMETER This part replaces 44830-356-010.

44830-KB4-700

Unavailable

15

CABLE ASSY., SPEEDOMETER | Use up to Frame SN BM104562 This part replaces 44830-356-010.

44830-KB4-700

Unavailable

15

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-610.

44830-KB4-700

Unavailable

15

CABLE ASSY., SPEEDOMETER | Use up to Frame SN BM104562 This part replaces 44830-415-610.

44830-KB4-700

Unavailable

15

CABLE ASSY., SPEEDOMETER This part replaces 44830-426-000.

44830-KB4-700

Unavailable

15

CABLE ASSY., SPEEDOMETER | Use up to Frame SN BM104562 This part replaces 44830-426-000.

44830-KB4-700

Unavailable

15

CABLE ASSY., SPEEDOMETER This part replaces 44830-447-010.

44830-KB4-700

Unavailable

15

CABLE ASSY., SPEEDOMETER | Use up to Frame SN BM104562 This part replaces 44830-447-010.

44830-KB4-700

Unavailable

17

RUBBER, INSTRUMENT CUSHION (NOT AVAILABLE)

37213-413-940

Unavailable

18

LABEL, BREAK IN CAUTION

87523-413-710

Unavailable

19

SCREW, TAPPING (4X25)

93903-24680

Unavailable

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

21

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

22

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
