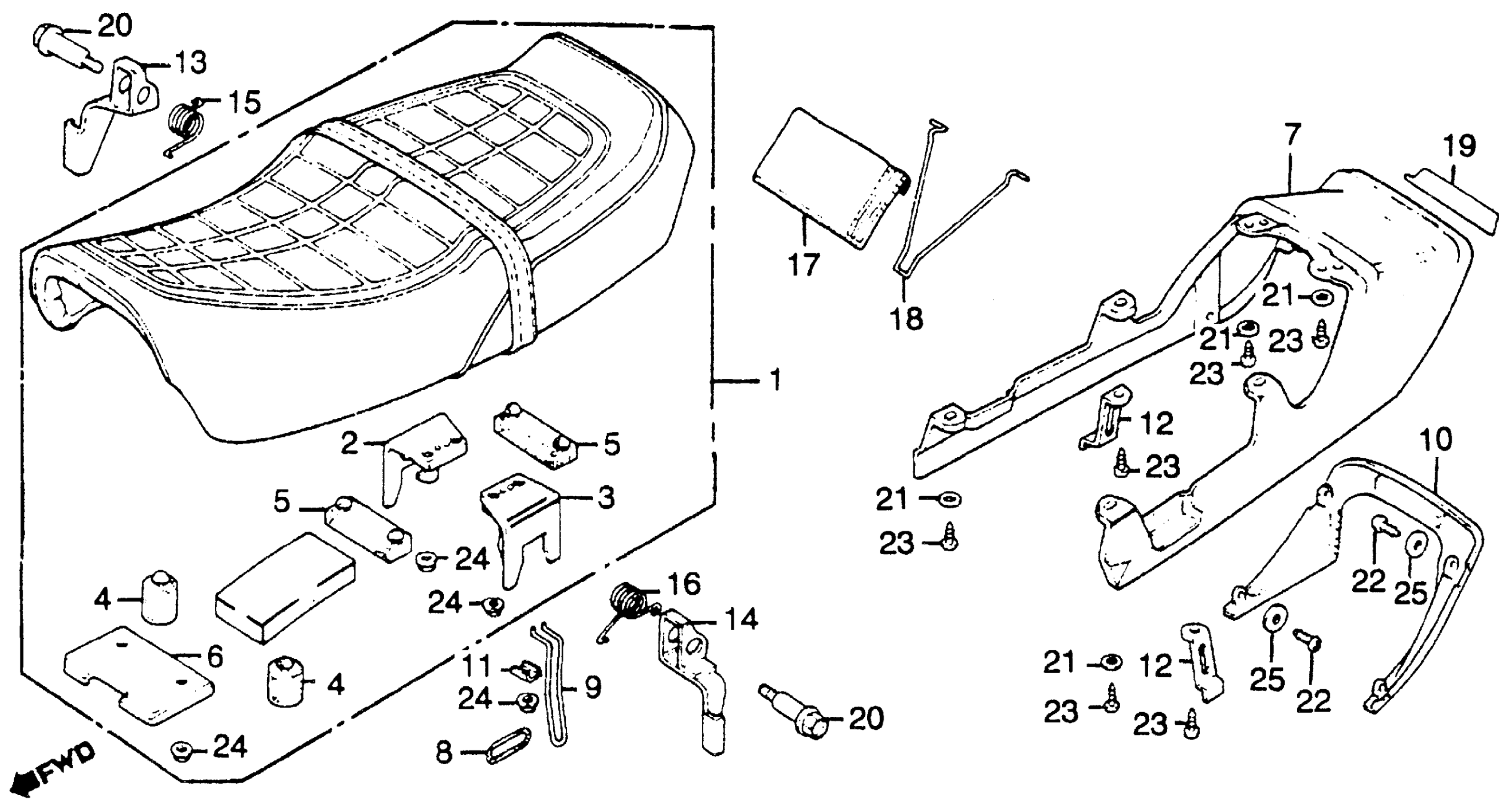

Honda CB400TA (81) HAWK, JPN, VIN# JH2NC030-BM100001 SEAT Diagram

#

Description
Price

1

SEAT ASSY.

77200-413-940

Unavailable

2

PLATE, R. SEAT LOCK

77202-413-000

Unavailable

3

PLATE, L. SEAT LOCK

77203-413-000

Unavailable

4

RUBBER A, SEAT SETTING (NOT AVAILABLE)

77204-128-000

$7.59

5

RUBBER B, SEAT SETTING

77205-286-000

$5.28

6

STAY, FR. SEAT (NOT AVAILABLE)

77206-443-610

Unavailable

7

COWL A, SEAT *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

77211-443-760ZA

Unavailable

7

COWL A, SEAT *NH1* (BLACK) (NOT AVAILABLE)

77211-443-760ZE

Unavailable

8

RING, SEAT LOCK (NOT AVAILABLE)

77211-413-000

Unavailable

9

ARM, SEAT LOCK

77212-443-610

Unavailable

10

COWL B, SEAT (NOT AVAILABLE)

77212-443-760

Unavailable

11

WASHER, SEAT LOCK (NOT AVAILABLE)

77213-413-000

Unavailable

12

BRACKET, SEAT COWL (NOT AVAILABLE)

77215-443-610

Unavailable

13

LEVER, R. SEAT LOCK (NOT AVAILABLE)

77221-413-000

Unavailable

14

LEVER, L. SEAT LOCK (NOT AVAILABLE)

77222-413-000

Unavailable

15

SPRING, R. SEAT LOCK (NOT AVAILABLE)

77225-413-000

Unavailable

16

SPRING, L. SEAT LOCK (NOT AVAILABLE)

77226-413-000

Unavailable

17

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

18

CLAMP, SERVICE BOOK (NOT AVAILABLE)

83501-413-750

Unavailable

19

EMBLEM, SEAT COWL (A.M.) (NOT AVAILABLE)

87110-443-760

Unavailable

20

BOLT, SEAT LOCK

90130-413-000

Unavailable

21

WASHER, PLAIN (5MM) This part replaces 90557-538-000.

94103-05800

$1.49

21

WASHER, PLAIN (5MM)

94103-05800

$1.49

22

SCREW, TAPPING (5X8)

93901-25020

$1.49

23

SCREW, TAPPING (5X16)

93901-25320

$1.49

24

NUT, FLANGE (6MM)

94050-06080

$1.49

25

WASHER, PLAIN (5MM)

94101-05800

$1.49
