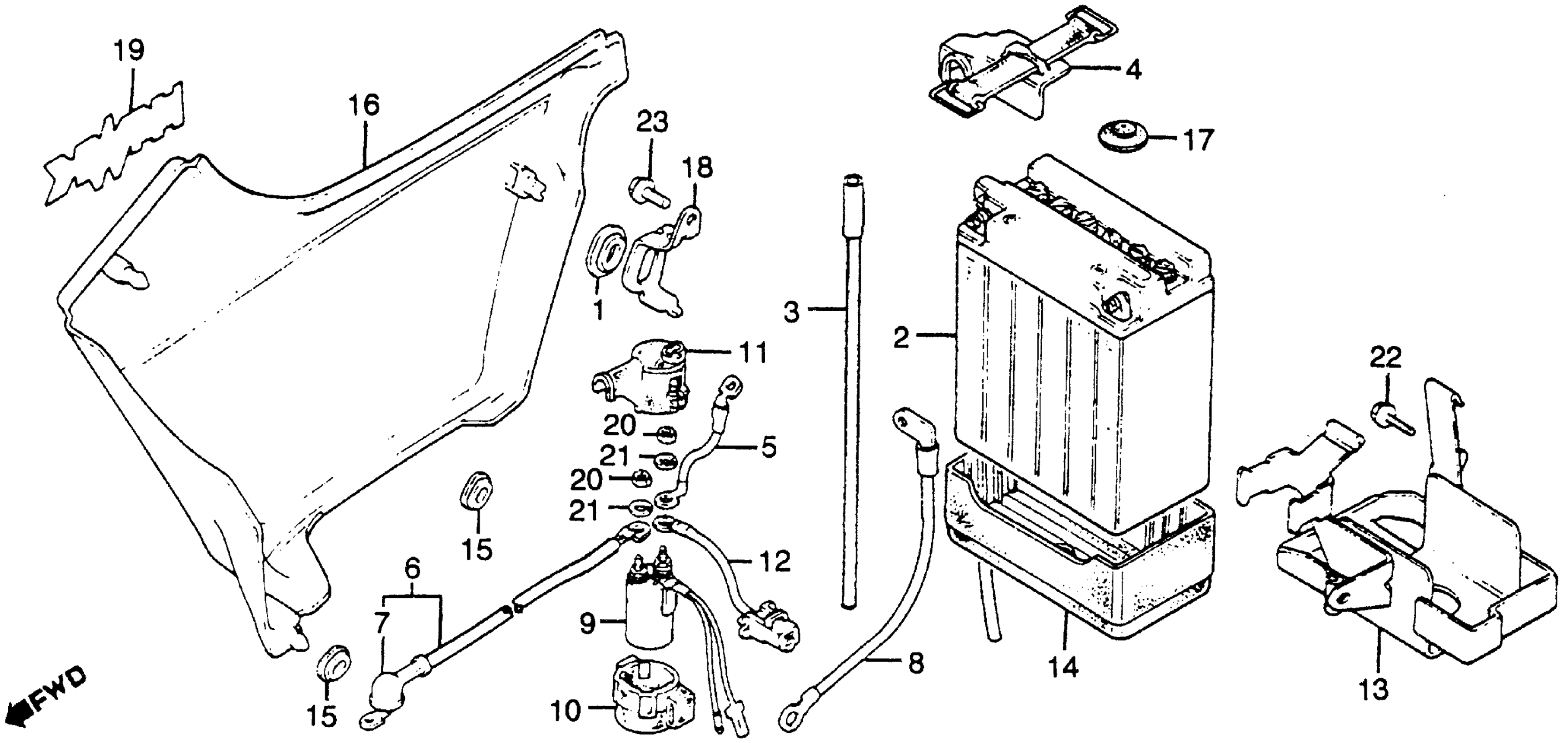

Honda CB400TA (81) HAWK, JPN, VIN# JH2NC030-BM100001 RIGHT SIDE COVER + BATTERY Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

BATTERY (12V12)

31500-MN2-672

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-601.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-721.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-722.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-771.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-942.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-426-771.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-447-771.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-460-671.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-460-677.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 35100-MN2-673.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-941.

31500-460-672AH

Unavailable

3

TUBE, BATTERY BREATHER (NOT AVAILABLE)

31502-413-950

Unavailable

4

COVER ASSY., BATTERY (NOT AVAILABLE)

31560-413-000

Unavailable

5

CABLE This part replaces 32401-413-000.

32401-413-880

Unavailable

5

CABLE This part replaces 32401-413-950.

32401-413-880

Unavailable

6

CABLE, STARTER MOTOR (NOT AVAILABLE) This part replaces 32410-413-000.

32410-MC9-830

Unavailable

7

COVER, BATTERY TERMINAL (NOT AVAILABLE)

32411-443-900

Unavailable

8

CABLE ASSY., BATTERY GROUND

32601-413-000

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-431-007

Unavailable

10

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

10

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

12

CABLE, MAGNETIC SUB (NOT AVAILABLE)

35858-413-000

Unavailable

13

TRAY, BATTERY (NOT AVAILABLE)

50325-413-000

Unavailable

14

RUBBER, BATTERY

50326-413-781

Unavailable

15

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

16

COVER ASSY., R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83600-413-940ZA

Unavailable

16

COVER ASSY., R. SIDE *NH104MU* (PLEIADES SILVER METALLIC) (NOT AVAILABLE)

83600-413-940ZB

Unavailable

17

RUBBER, BATTERY BOX

83618-323-000

$2.47

18

STAY, R. SIDE COVER (NOT AVAILABLE)

83710-443-610

Unavailable

20

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

20

NUT, HEX. (6MM)

94002-06080-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

21

WASHER, SPRING (6MM)

94111-06800

$1.49

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

22

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

23

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

23

BOLT, FLANGE (8X12)

95701-08012-00

$1.49
