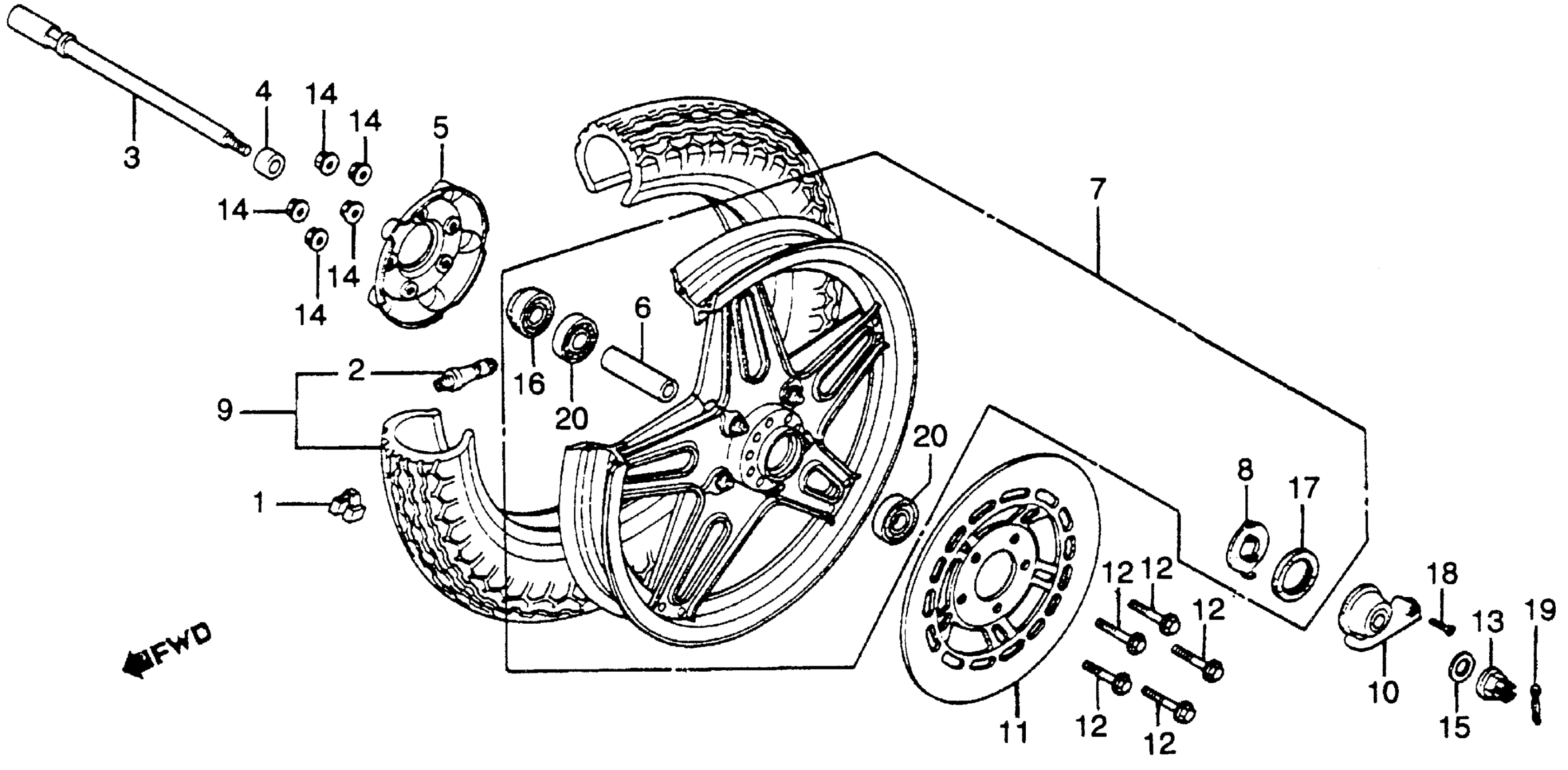

Honda CB400TA (81) HAWK, JPN, VIN# JH2NC030-BM100001 FRONT WHEEL 81 Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

VALVE, RIM (BS) This part replaces 42753-415-006.

42753-425-003

$11.00

2

VALVE, RIM (BS)

42753-425-003

$11.00

2

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-413-000

Unavailable

4

COLLAR, FR. WHEEL

44311-413-000

Unavailable

5

COVER, FR. WHEEL

44607-449-000

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-286-000

Unavailable

7

WHEEL, FR. (NOT AVAILABLE)

44650-413-940

Unavailable

8

RETAINER, GEAR BOX

44680-410-000

$5.80

9

TIRE ASSY., FR. (3.60S19) (4PR) (BS) (NOT AVAILABLE)

44710-413-941

Unavailable

9

TIRE ASSY., FR. (3.60S19) (4PR) (DUNLOP) (NOT AVAILABLE)

44710-413-942

Unavailable

9

TIRE ASSY., FR. (3.60S19) (4PR) (YOKOHAMA) (NOT AVAILABLE)

44710-413-943

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR

44800-447-013

Unavailable

11

DISK, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN BM100810 This part replaces 45251-413-940.

45251-413-941

Unavailable

11

DISK, FR. BRAKE (NOT AVAILABLE)

45251-413-941

Unavailable

12

BOLT, FLANGE (8X90) (NOT AVAILABLE)

90155-449-750

Unavailable

13

NUT, AXLE (14MM)

90305-401-680

$11.65

14

NUT, HEX. (8MM)

90309-357-000

$3.40

15

WASHER (15.2X25)

90557-230-000

$2.39

16

OIL SEAL (26X42X7)

91252-230-003

$10.56

16

OIL SEAL (26X42X7) This part replaces 91252-230-005.

91252-230-003

$10.56

17

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

17

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

17

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

18

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

19

PIN, COTTER (3.0X45)

94201-30450

$1.49

20

BEARING, RADIAL BALL (6302Z)

96120-63020-10

Unavailable
