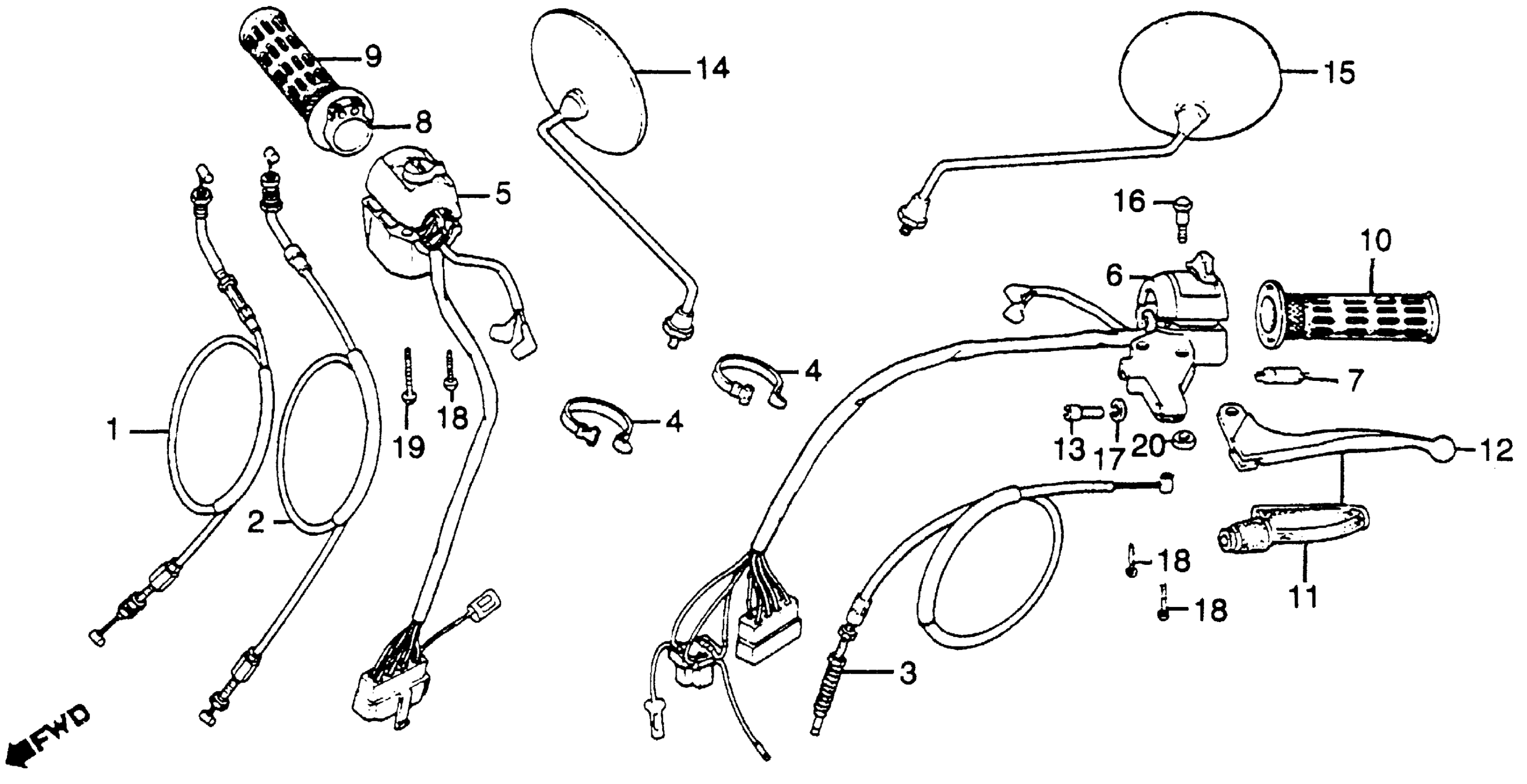

Honda CB400TA (81) HAWK, JPN, VIN# JH2NC030-BM100001 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MC9-760

Unavailable

1

CABLE A, THROTTLE This part replaces 17910-442-711.

17910-MC9-760

Unavailable

2

CABLE B, THROTTLE

17920-MC9-760

Unavailable

2

CABLE B, THROTTLE This part replaces 17920-442-711.

17920-MC9-760

Unavailable

3

CABLE, CLUTCH (NOT AVAILABLE) | Use up to Frame SN BM104612

22870-442-710

Unavailable

3

CABLE, CLUTCH | Use from Frame SN BM104613

22870-KG1-920

Unavailable

3

CABLE, CLUTCH | Use from Frame SN BM104613 This part replaces 22870-442-711.

22870-KG1-920

Unavailable

4

BAND B1, CABLE

32161-404-000

$2.23

5

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE) This part replaces 35130-413-941.

35130-MC0-670

Unavailable

6

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-413-672

Unavailable

7

SWITCH, FR. LEVER

35330-413-003

$21.91

8

PIPE, THROTTLE GRIP

53141-300-010

$20.93

9

GRIP, R. HANDLEBAR

53165-390-780

$10.88

10

GRIP, L. HANDLEBAR

53166-390-780

$10.88

11

COVER, L. HANDLEBAR LEVER

53172-402-700

$7.41

12

LEVER, L. HANDLEBAR

53178-399-700

$28.00

12

LEVER, L. HANDLEBAR This part replaces 53190-443-610.

53178-399-700

$28.00

13

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.91

14

MIRROR, R. (NOT AVAILABLE)

88110-443-761

Unavailable

15

MIRROR, L. (NOT AVAILABLE)

88120-443-761

Unavailable

16

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

17

NUT, FIXING

90321-315-670

$7.31

17

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

18

SCREW, PAN (5X25)

93500-05025-0A

$1.49

19

SCREW, PAN (5X35)

93500-05035-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
