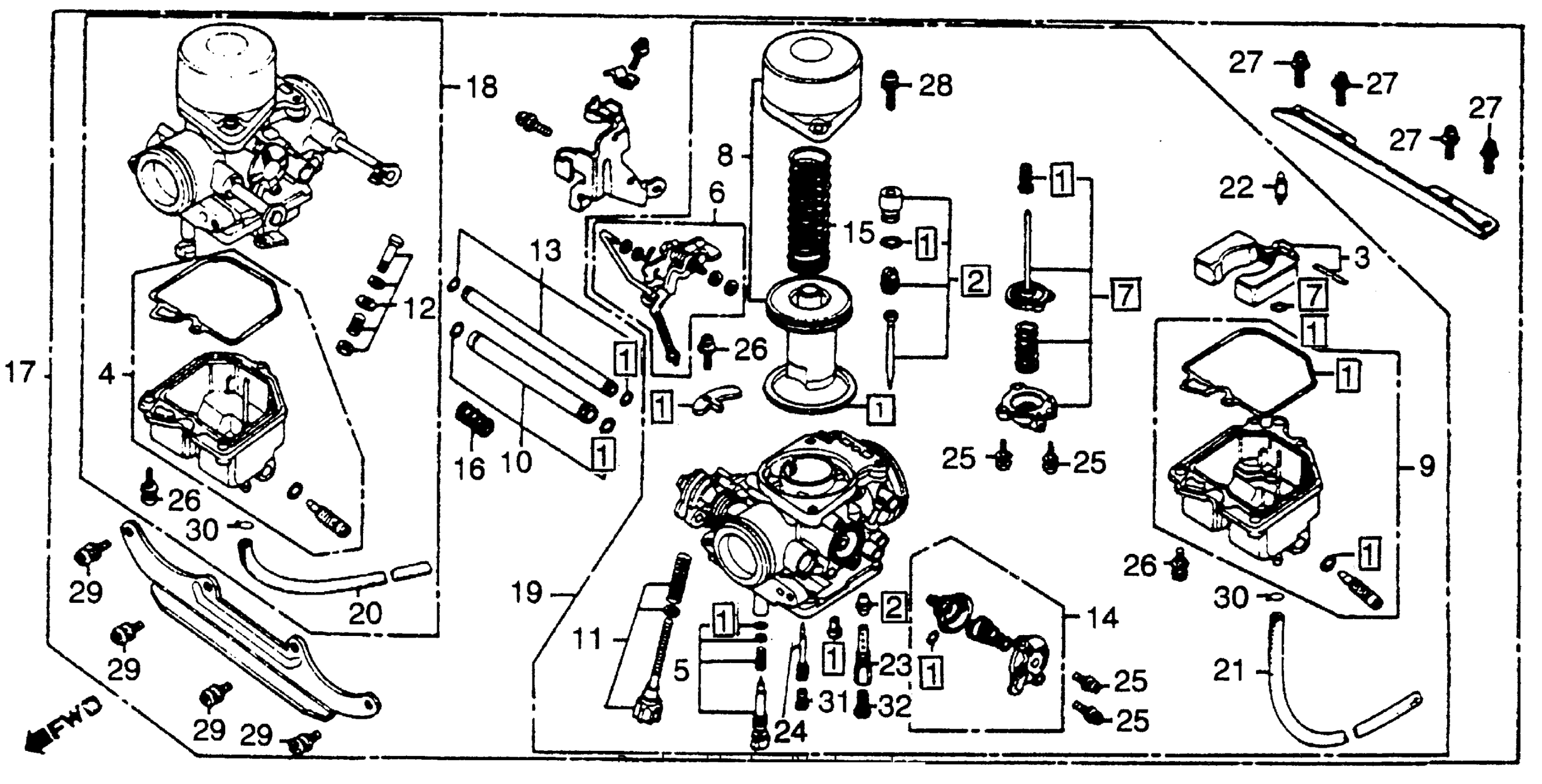

Honda CB400TA (81) HAWK, JPN, VIN# JH2NC030-BM100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-413-405

$57.50

1

GASKET SET This part replaces 16010-413-751.

16010-413-405

$57.50

2

NEEDLE SET, JET

16012-413-751

Unavailable

3

FLOAT SET This part replaces 16013-413-751.

16013-413-851

$90.77

3

FLOAT SET

16013-413-851

$90.77

4

CHAMBER SET, FLOAT This part replaces 16015-413-004.

16015-425-871

Unavailable

4

CHAMBER SET, FLOAT

16015-425-871

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

ROD SET, PUMP (NOT AVAILABLE)

16019-413-751

$50.74

7

DIAPHRAGM SET, PUMP

16021-413-751

Unavailable

8

PISTON SET, VACUUM This part replaces 16022-413-004.

16044-425-771

Unavailable

8

PISTON SET, VACUUM

16044-425-771

Unavailable

9

CHAMBER SET B, FLOAT (NOT AVAILABLE) This part replaces 16023-425-671.

16023-425-871

Unavailable

10

JOINT SET, FUEL (NOT AVAILABLE)

16026-413-751

Unavailable

11

SCREW SET B (NOT AVAILABLE)

16028-425-671

Unavailable

12

SCREW SET C

16029-PC6-005

Unavailable

12

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

13

JOINT SET, FUEL This part replaces 16037-413-751.

16037-443-851

Unavailable

14

VALVE SET, AIR CUT This part replaces 16048-429-671.

16048-443-901

Unavailable

14

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

15

SPRING, VACUUM PISTON

16050-448-004

Unavailable

16

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16051-413-004

Unavailable

17

CARBURETOR ASSY. | Use up to Engine SN 2104994 This part replaces 16100-413-752.

16100-413-754

Unavailable

17

CARBURETOR ASSY. (NOT AVAILABLE) | (Optional).

16100-413-750

Unavailable

17

CARBURETOR ASSY. This part replaces 16100-413-753.

16100-413-754

Unavailable

17

CARBURETOR ASSY. | Use up to Engine SN 2104994 This part replaces 16100-413-753.

16100-413-754

Unavailable

17

CARBURETOR ASSY.

16100-413-754

Unavailable

17

CARBURETOR ASSY. | Use up to Engine SN 2104994

16100-413-754

Unavailable

18

CARBURETOR ASSY., R. | Use up to Engine SN VB22B B This part replaces 16101-413-752.

16101-413-754

Unavailable

18

CARBURETOR ASSY., R. | Use up to Engine SN VB22B B

16101-413-754

Unavailable

18

CARBURETOR ASSY., R. | Use from Engine SN VB22B C

16101-413-754

Unavailable

19

CARBURETOR ASSY., L. | Use up to Engine SN VB22B B This part replaces 16102-413-752.

16102-413-754

Unavailable

19

CARBURETOR ASSY., L. | Use up to Engine SN VB22B B

16102-413-754

Unavailable

19

CARBURETOR ASSY., L. | Use from Engine SN VB22B C

16102-413-753

Unavailable

20

TUBE, FUEL This part replaces 16143-413-751.

16199-KG4-405

$9.49

21

TUBE This part replaces 16144-413-751.

16199-MN5-405

$11.86

21

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

22

VALVE, FLOAT

16155-413-751

$32.50

23

HOLDER, NEEDLE JET

16165-417-004

$24.74

24

NOZZLE, MAIN

16166-447-671

Unavailable

25

SCREW-WASHER (4X12)

93892-04012-00

$1.49

26

SCREW-WASHER (4X16)

93892-04016-00

$1.49

27

SCREW-WASHER (5X12)

93892-05012-00

$1.49

28

SCREW-WASHER (5X16)

93892-05016-00

$1.49

29

SCREW-WASHER (6X14)

93892-06014-00

$1.49

30

CLIP, TUBE (B6.5)

95002-02650

$1.49

31

JET, MAIN (#70) This part replaces 99101-393-0700.

99101-166-0700

Unavailable

32

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

32

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$9.11

32

JET (#110) This part replaces 99102-393-1100.

99101-MBA-1100

$9.11
