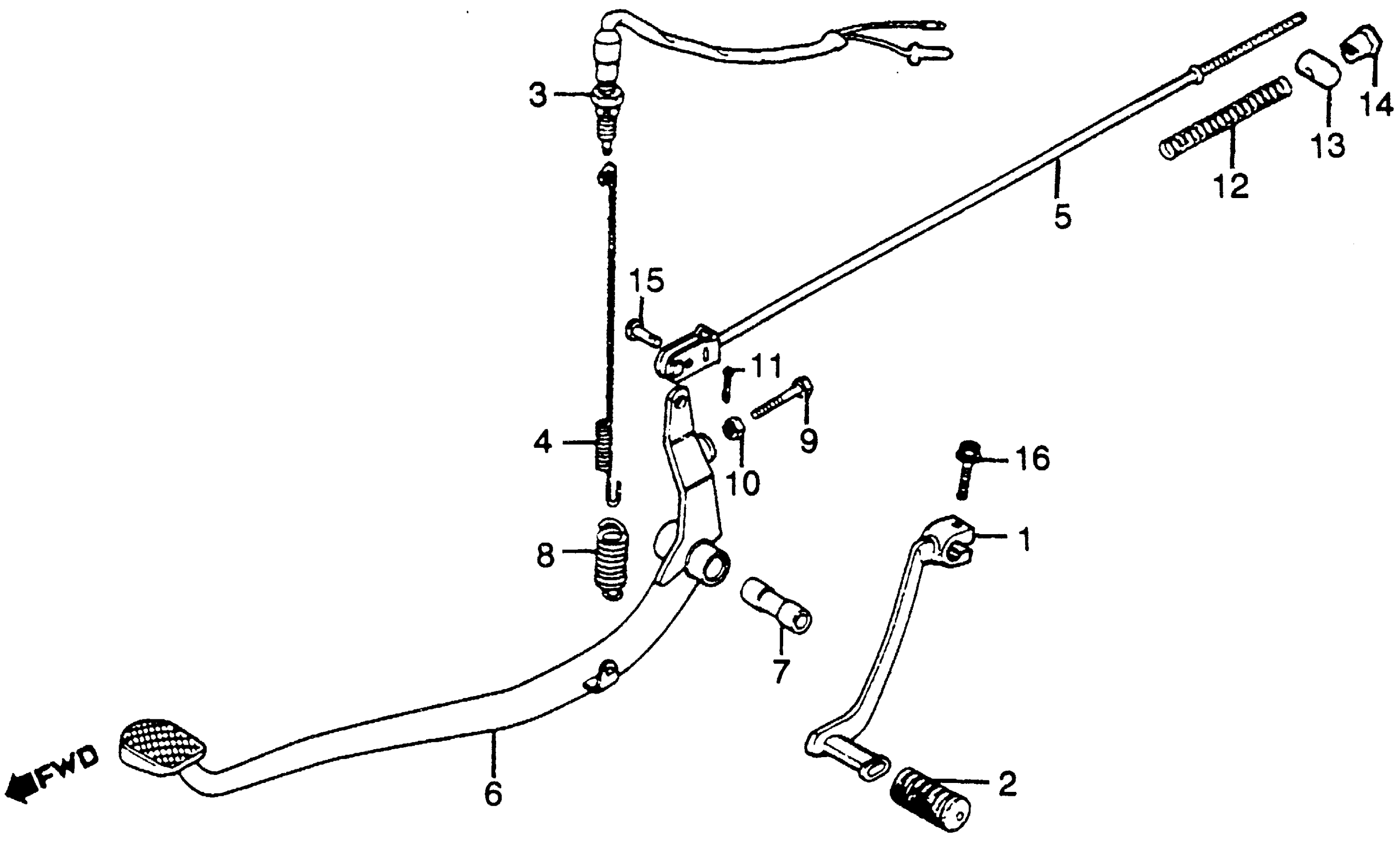

Honda CB400TA (81) HAWK, JPN, VIN# JH2NC030-BM100001 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-413-003

Unavailable

1

PEDAL, GEARSHIFT This part replaces 24700-417-000.

24700-413-003

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

3

SWITCH ASSY., RR. STOP This part replaces 35350-MC9-830.

35350-KJ9-405

$16.97

3

SWITCH ASSY., RR. STOP This part replaces 35350-149-003.

35350-KJ9-405

$16.97

4

SPRING, STOP SWITCH

35357-413-000

Unavailable

5

ROD, RR. BRAKE

43451-393-000

Unavailable

6

PEDAL, BRAKE

46500-413-000

Unavailable

7

COLLAR, RR. BRAKE PIVOT (NOT AVAILABLE)

46501-413-000

Unavailable

8

SPRING, RR. BRAKE (NOT AVAILABLE)

46514-413-000

Unavailable

9

BOLT, HEX. (6X35)

92035-06035-0H

Unavailable

9

BOLT, HEX. (6X35) This part replaces 92035-06035-08.

92035-06035-0H

Unavailable

10

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM)

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

11

PIN, COTTER (1.6X12)

94201-16120

$1.49

12

SPRING A, BRAKE ROD

95014-73100

$1.49

12

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

13

JOINT, BRAKE ARM

95015-32001

$1.49

14

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

15

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

16

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

16

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
