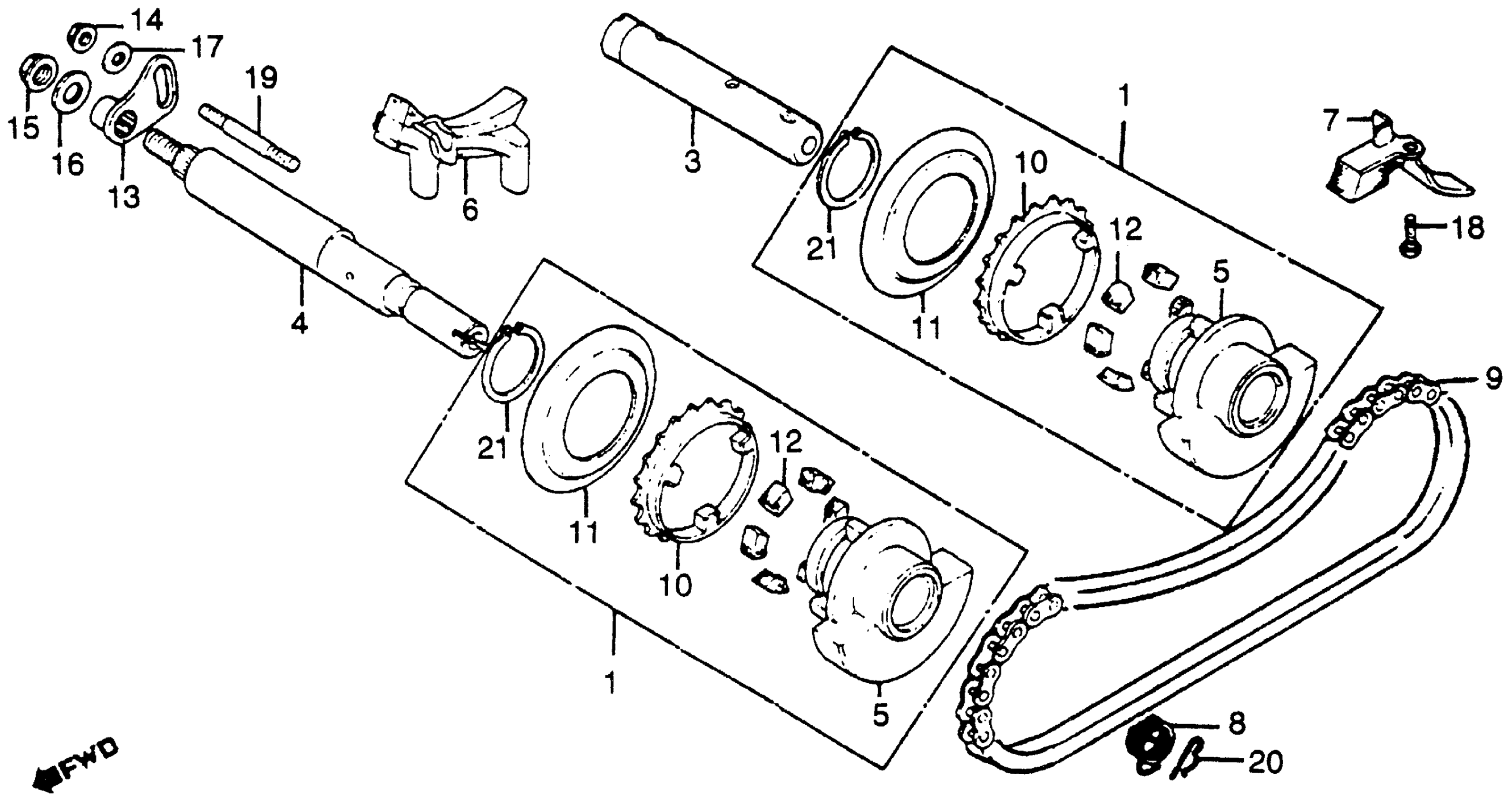

Honda CB400TA (81) HAWK, JPN, VIN# JH2NC030-BM100001 BALANCER Diagram
#
Description
Price
1
BALANCER | Use up to Engine SN 2100010 This part replaces 13410-413-010.
13410-413-020
Unavailable
1
BALANCER
13410-413-020
Unavailable
1
BALANCER | Use up to Engine SN 2100010
13410-413-020
Unavailable
3
SHAFT, RR. BALANCER
13411-413-010
Unavailable
4
SHAFT, FR. BALANCER (NOT AVAILABLE)
13412-413-000
Unavailable
5
WEIGHT, BALANCER | Use up to Engine SN 2100010
13420-413-010
Unavailable
6
SLIPPER A, BALANCER CHAIN
13430-413-000
Unavailable
7
PLATE, BALANCER CHAIN GUARD
13431-443-000
Unavailable
8
SPRING, BALANCER SHAFT RETURN (NOT AVAILABLE)
13432-413-000
Unavailable
9
CHAIN, BALANCER (219TS.1DHA-68) (DAIDO)
13440-ML4-611
Unavailable
9
CHAIN, BALANCER (219TS.1DHA-68) (DAIDO) This part replaces 13440-413-033.
13440-ML4-611
Unavailable
10
SPROCKET, BALANCER DRIVE (NOT AVAILABLE) | Use up to Engine SN 2100010
13611-413-010
Unavailable
11
PLATE, BALANCER SIDE (NOT AVAILABLE) | Use up to Engine SN 2100010
13613-413-300
Unavailable
12
RUBBER, DAMPER | Use up to Engine SN 2100010
13614-413-000
Unavailable
13
PLATE, BALANCER SHAFT STOPPER (NOT AVAILABLE)
13615-413-000
Unavailable
16
WASHER A, SPECIAL (10MM) (NOT AVAILABLE)
90422-567-000
Unavailable
17
WASHER, TONGUED (8MM) (NOT AVAILABLE)
90529-045-000
Unavailable
