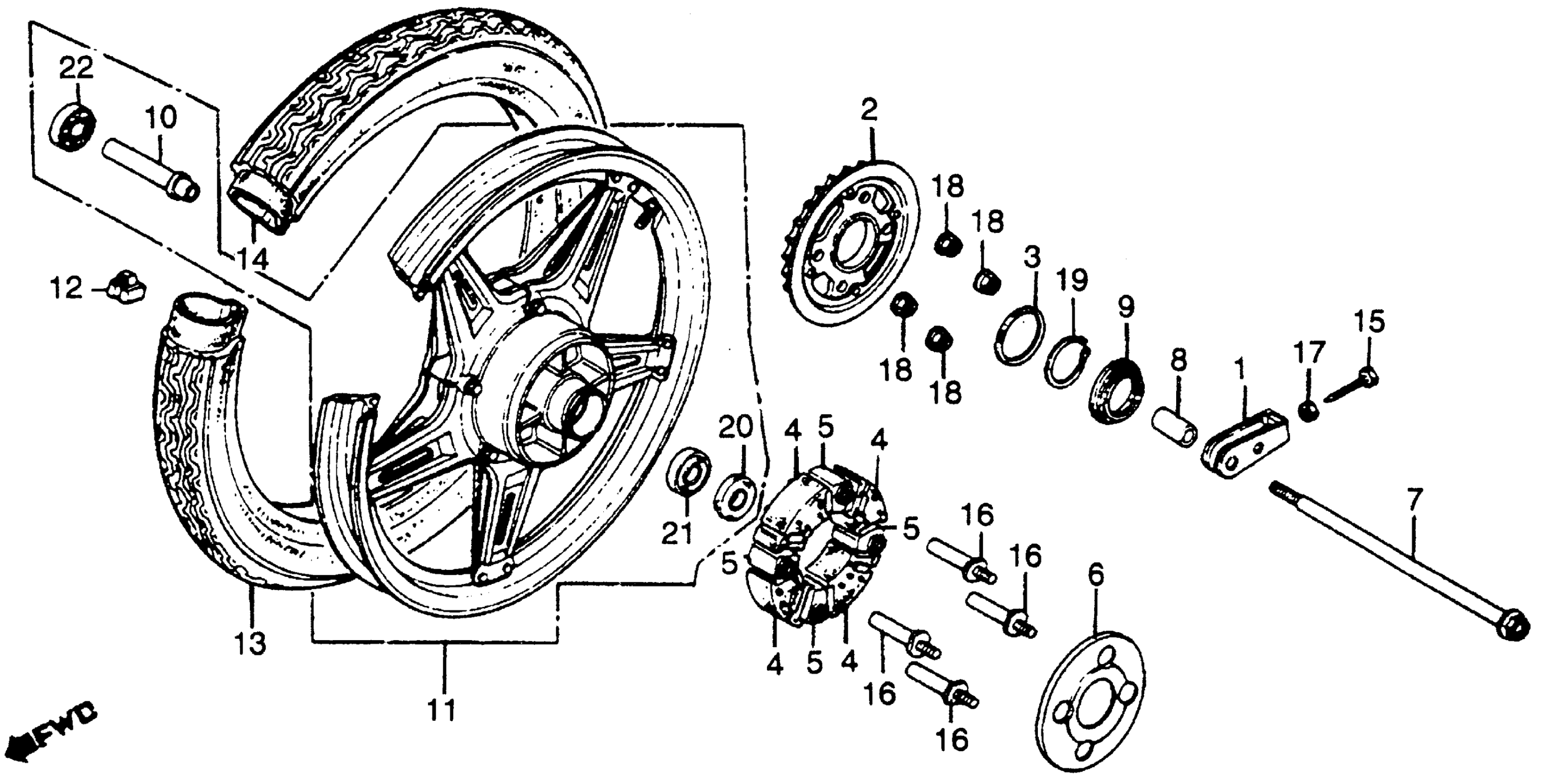

Honda CB400TA (80) HAWK, JPN, VIN# NC03-2000001 TO NC03-2011626 REAR WHEEL 80 Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN | Use up to Frame SN 2010521 This part replaces 40543-312-010.

40543-471-000

Unavailable

1

ADJUSTER, DRIVE CHAIN | Use up to Frame SN 2010521

40543-471-000

Unavailable

2

SPROCKET COMP. (37T) This part replaces 41200-413-750.

41200-413-506

Unavailable

2

SPROCKET COMP. (37T) This part replaces 41200-413-751.

41200-413-506

Unavailable

2

SPROCKET COMP. (37T) This part replaces 41200-413-780.

41200-413-506

Unavailable

2

SPROCKET COMP. (37T) This part replaces 41200-413-781.

41200-413-506

Unavailable

2

SPROCKET COMP. (37T) This part replaces 41200-413-950.

41200-413-506

Unavailable

3

WASHER (80X65)

41204-413-780

$8.41

4

RUBBER, RR. WHEEL DAMPER | Use up to Frame SN 2009686 This part replaces 41241-413-780.

41241-413-781

Unavailable

4

RUBBER, RR. WHEEL DAMPER | Use up to Frame SN 2009686

41241-413-781

Unavailable

5

COLLAR, RR. WHEEL DAMPER

41242-413-780

Unavailable

6

COVER, RR. WHEEL DAMPER (NOT AVAILABLE)

41265-413-780

Unavailable

7

AXLE, RR. WHEEL

42301-413-000

Unavailable

8

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-413-000

Unavailable

9

COVER, SPROCKET SIDE DUST

42604-413-780

Unavailable

10

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42624-413-000

Unavailable

11

WHEEL, RR. (NOT AVAILABLE) This part replaces 42650-413-750.

42650-413-751

Unavailable

11

WHEEL, RR. (NOT AVAILABLE)

42650-413-751

Unavailable

12

WEIGHT, BALANCE (20G) WEIGHT, BALANCE (30G)

42705-410-000

Unavailable

12

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

13

TIRE, RR. (4.10S-18) (YOKOHAMA) (NOT AVAILABLE) TIRE, RR. (4.10S-18) (BS)

42711-413-671

Unavailable

13

TIRE, RR. (4.10S-18) (BS) (NOT AVAILABLE)

42711-413-672

Unavailable

14

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

14

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

14

TUBE (275/300-18) (IRC) TUBE, WHEEL

42712-KC6-005

Unavailable

14

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

14

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

14

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

14

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

14

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

15

BOLT, CHAIN ADJUSTING

90119-413-000

$3.69

16

BOLT, SPROCKET FIXING

90128-KE5-000

Unavailable

16

BOLT, SPROCKET FIXING This part replaces 90128-369-000.

90128-KE5-000

Unavailable

17

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

18

NUT, HEX. (10MM)

90308-357-000

$4.85

19

CIRCLIP (OUTER) (65MM)

90665-329-000

Unavailable

20

DUST SEAL (30X52X7)

91253-442-003

$13.96

20

DUST SEAL (30X52X7) This part replaces 91253-442-004.

91253-442-003

$13.96

21

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40

22

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
