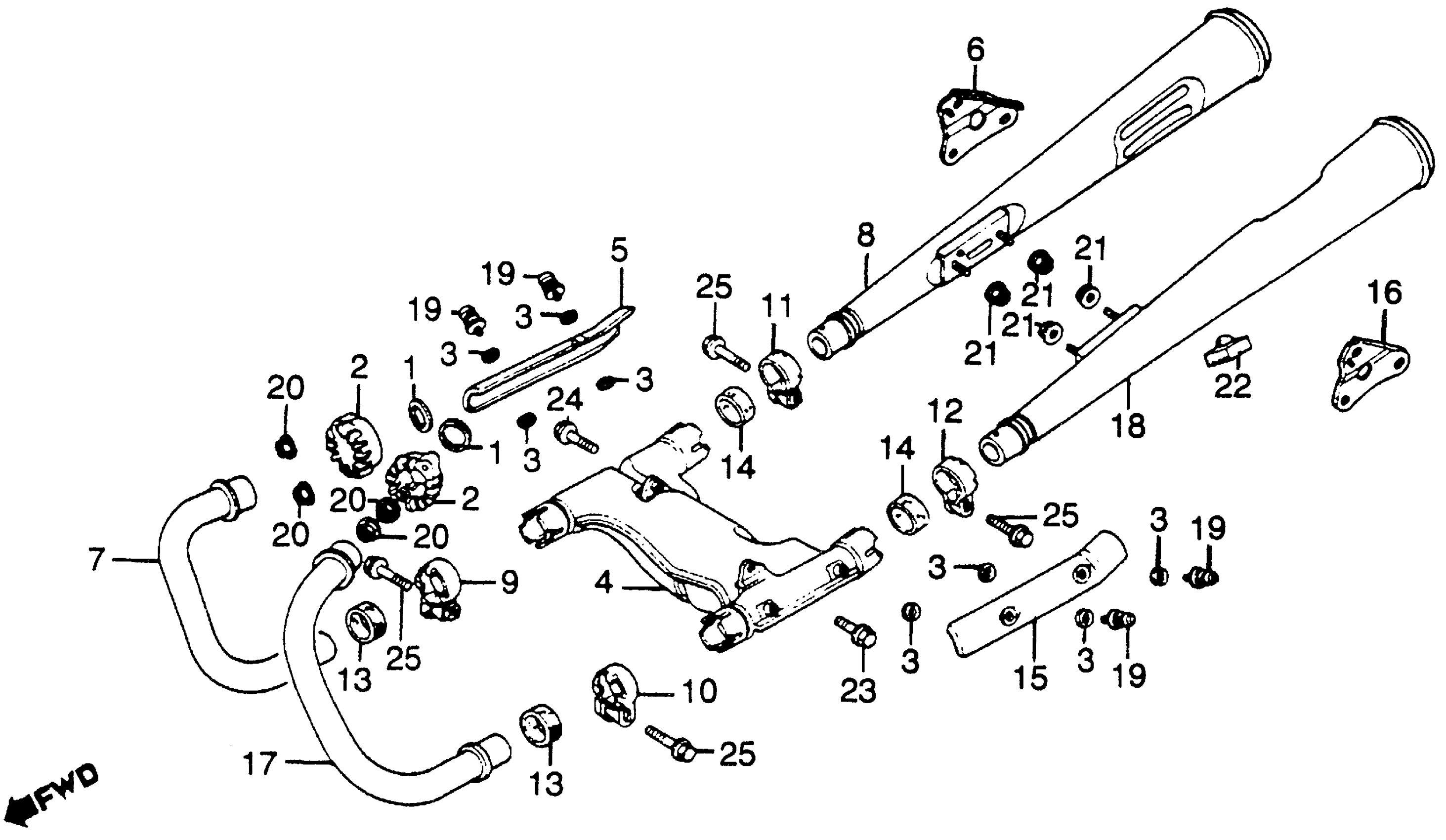

Honda CB400TA (80) HAWK, JPN, VIN# NC03-2000001 TO NC03-2011626 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18212-634-S00.

18212-634-010

Unavailable

1

GASKET, EX. PIPE This part replaces 18212-634-000.

18212-634-010

Unavailable

1

GASKET, EX. PIPE

18212-634-010

Unavailable

2

JOINT, EX. PIPE This part replaces 18231-413-000.

18231-413-010

Unavailable

2

JOINT, EX. PIPE

18231-413-010

Unavailable

3

GASKET, MUFFLER PROTECTOR

18292-GY1-860

$2.94

3

GASKET, MUFFLER PROTECTOR This part replaces 18292-KS3-920.

18292-GY1-860

$2.94

3

GASKET, MUFFLER PROTECTOR This part replaces 18292-147-000.

18292-GY1-860

$2.94

4

PRE CHAMBER

18310-413-013

Unavailable

4

PRE CHAMBER This part replaces 18310-447-870.

18310-413-013

Unavailable

5

PROTECTOR, R. MUFFLER (NOT AVAILABLE)

18315-413-010

Unavailable

6

STAY, R. MUFFLER (NOT AVAILABLE)

18318-413-750

Unavailable

7

PIPE, R. EX. This part replaces 18320-413-003.

18320-417-003

Unavailable

7

PIPE, R. EX.

18320-417-003

Unavailable

8

MUFFLER, R. (NOT AVAILABLE) This part replaces 18330-443-780.

18330-443-787

Unavailable

8

MUFFLER, R. (NOT AVAILABLE) This part replaces 18330-443-781.

18330-443-787

Unavailable

8

MUFFLER, R. (NOT AVAILABLE) This part replaces 18330-443-782.

18330-443-787

Unavailable

8

MUFFLER, R. (NOT AVAILABLE)

18330-443-787

Unavailable

9

BAND, R. FR. MUFFLER

18373-413-000

$38.92

10

BAND, L. FR. MUFFLER

18374-413-000

$38.92

11

BAND, R. RR. MUFFLER

18375-413-000

$40.08

12

BAND, L. RR. MUFFLER

18376-413-000

$36.70

13

GASKET, FR. MUFFLER This part replaces 18391-413-000.

18391-413-010

$11.19

13

GASKET, FR. MUFFLER

18391-413-010

$11.19

13

GASKET, FR. MUFFLER This part replaces 18391-413-306.

18391-413-010

$11.19

14

GASKET, RR. MUFFLER

18392-MG7-750

$13.66

14

GASKET, MUFFLER This part replaces 18392-413-000.

18392-MG7-750

$13.66

15

PROTECTOR, L. MUFFLER (NOT AVAILABLE)

18415-413-000

Unavailable

16

STAY, L. MUFFLER (NOT AVAILABLE)

18418-413-750

Unavailable

17

PIPE, L. EX. (NOT AVAILABLE) This part replaces 18420-413-003.

18420-417-003

Unavailable

18

MUFFLER, L. (NOT AVAILABLE) This part replaces 18430-443-780.

18430-443-782

Unavailable

18

MUFFLER, L. (NOT AVAILABLE)

18430-443-782

Unavailable

19

SCREW-WASHER (5X12)

93893-05012-00

$1.49

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

NUT, FLANGE (8MM)

94050-08080

$1.49

22

RUBBER D, STAND STOPPER

95011-64000

$3.33

23

BOLT, FLANGE (8X20) This part replaces 95700-08020-08.

95701-08020-08

$1.62

23

BOLT, FLANGE (8X20)

95701-08020-08

$1.62

23

BOLT, FLANGE (8X20) This part replaces 95701-08020-18.

95701-08020-08

$1.62

24

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

24

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

25

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

25

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
