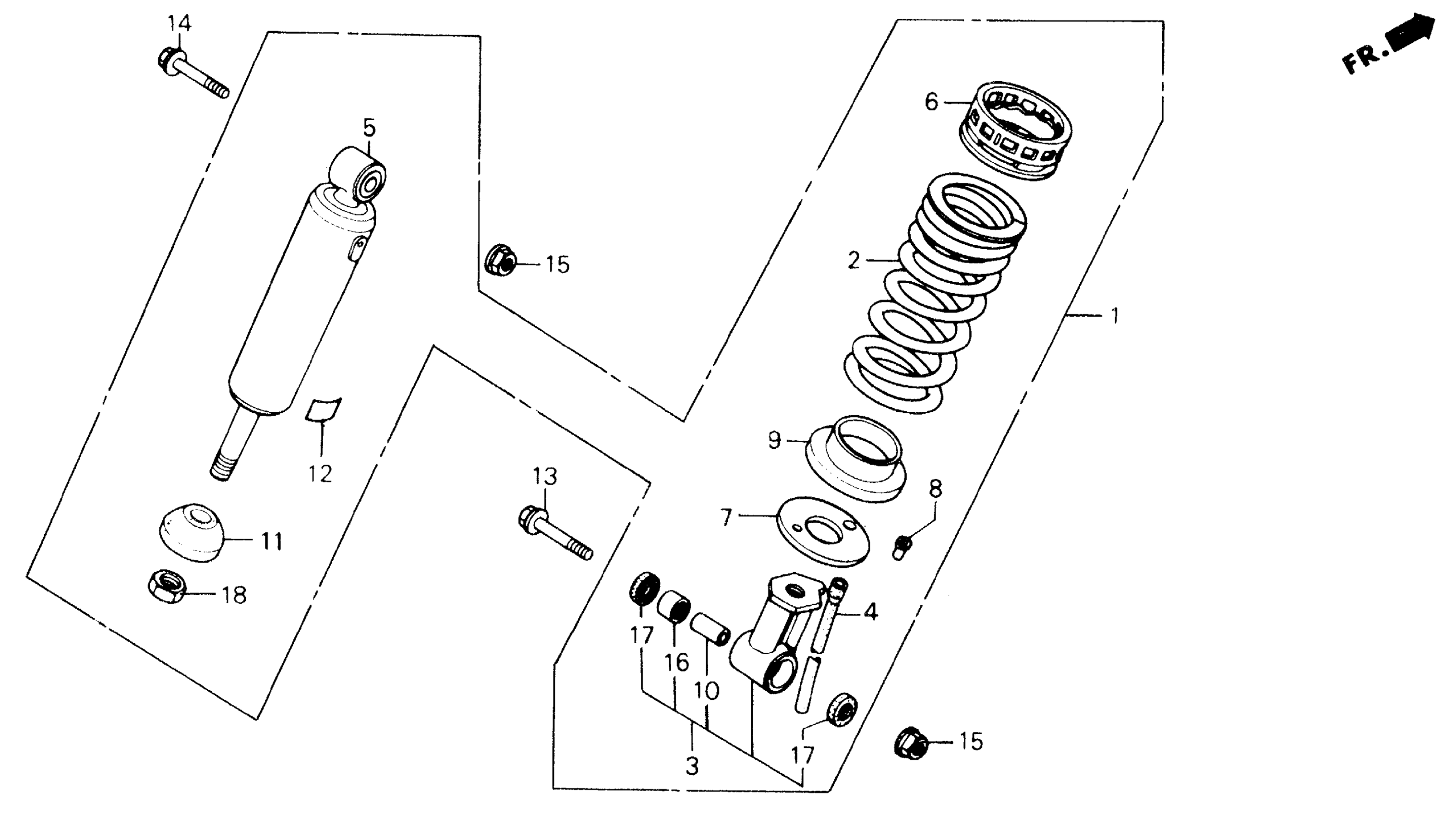

Honda CB400FAC (90) CB-1, JPN, VIN# JH2NC271-LM100001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)

52400-KAF-761

Unavailable

2

SPRING, RR. SHOCK ABSORBER (SHOWA) (NOT AVAILABLE)

52401-KAF-671

Unavailable

3

METAL SET (LOWER) (SHOWA) (NOT AVAILABLE)

52404-KAF-305

Unavailable

4

PIPE, DRAIN (NOT AVAILABLE)

52405-MN4-003

Unavailable

5

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-KAF-761

Unavailable

6

ADJUSTER, SPRING (SHOWA) (SOURCE: VINTAGE PARTS INC.)

52422-KV0-003

Unavailable

7

STOPPER, SPRING SEAT (NOT AVAILABLE)

52424-KB7-003

Unavailable

8

JOINT, PIPE (NOT AVAILABLE)

52456-KB7-003

Unavailable

9

SEAT C, SPRING (SHOWA) (NOT AVAILABLE)

52459-ML7-691

$16.10

10

COLLAR, CUSHION ARM

52463-KV3-000

Unavailable

11

RUBBER, STOPPER (SHOWA)

52517-KAF-003

$15.70

12

LABEL, RR. DAMPER This part replaces 87516-KY7-911.

87516-MBL-610

$4.31

12

LABEL, RR. DAMPER

87516-MBL-610

$4.31

13

BOLT, FLANGE (10X62)

90101-MBB-000

$4.04

13

BOLT, FLANGE (10X62) This part replaces 90129-KV3-771.

90101-MBB-000

$4.04

14

BOLT, FLANGE (10X47) (SOURCE: VINTAGE PARTS INC.)

90153-HA8-000

Unavailable

15

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

16

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$20.20

17

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

17

OIL SEAL (17X27X5) (KOYO) This part replaces 91262-MG7-005.

91202-HC5-005

$3.56

18

NUT, HEX. (14MM)

94031-14080

$1.79
