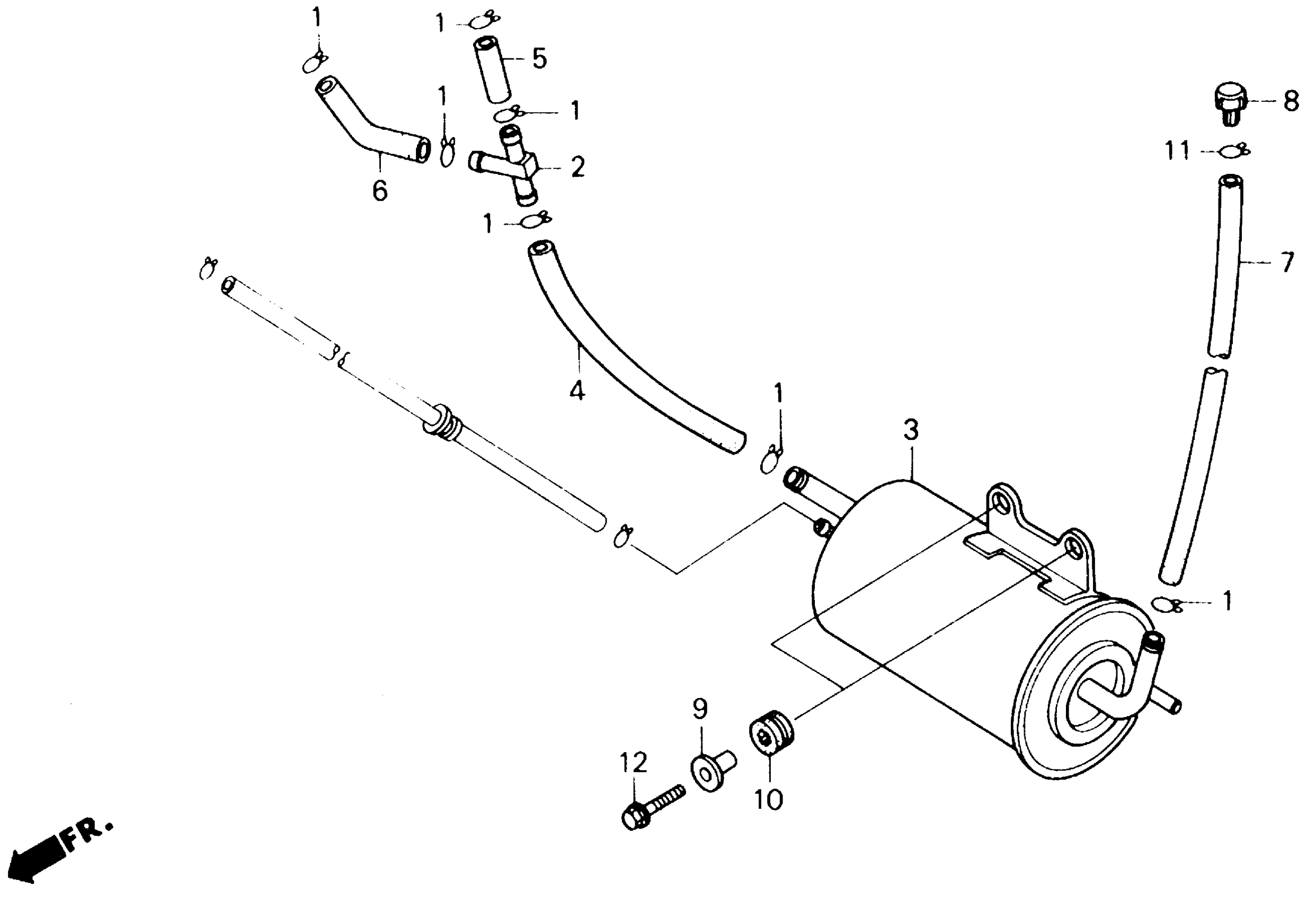

Honda CB400FAC (90) CB-1, JPN, VIN# JH2NC271-LM100001 AC CANISTER Diagram

#

Description

Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.64

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.64

2

JOINT (THREE-WAY)

17303-MJ1-790

Unavailable

3

CANISTER (NOT AVAILABLE)

17410-KAF-750

Unavailable

4

TUBE, CANISTER JOINT (NOT AVAILABLE)

17411-KAF-750

Unavailable

5

TUBE, AIR VENT CONTROL VALVE JOINT (NOT AVAILABLE)

17412-KAF-750

Unavailable

6

TUBE, PURGE CONTROL VALVE JOINT (NOT AVAILABLE)

17413-KAF-750

Unavailable

7

TUBE, CANISTER AIR (NOT AVAILABLE)

17414-KAF-750

Unavailable

8

PLUG, CANISTER AIR TUBE

17467-ME9-750

$9.43

9

COLLAR, SETTING

61104-422-000

$6.44

10

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.22

11

CLIP, TUBE (B12)

95002-02120

Unavailable

12

BOLT, FLANGE (6X22)

95701-06022-07

$0.86
