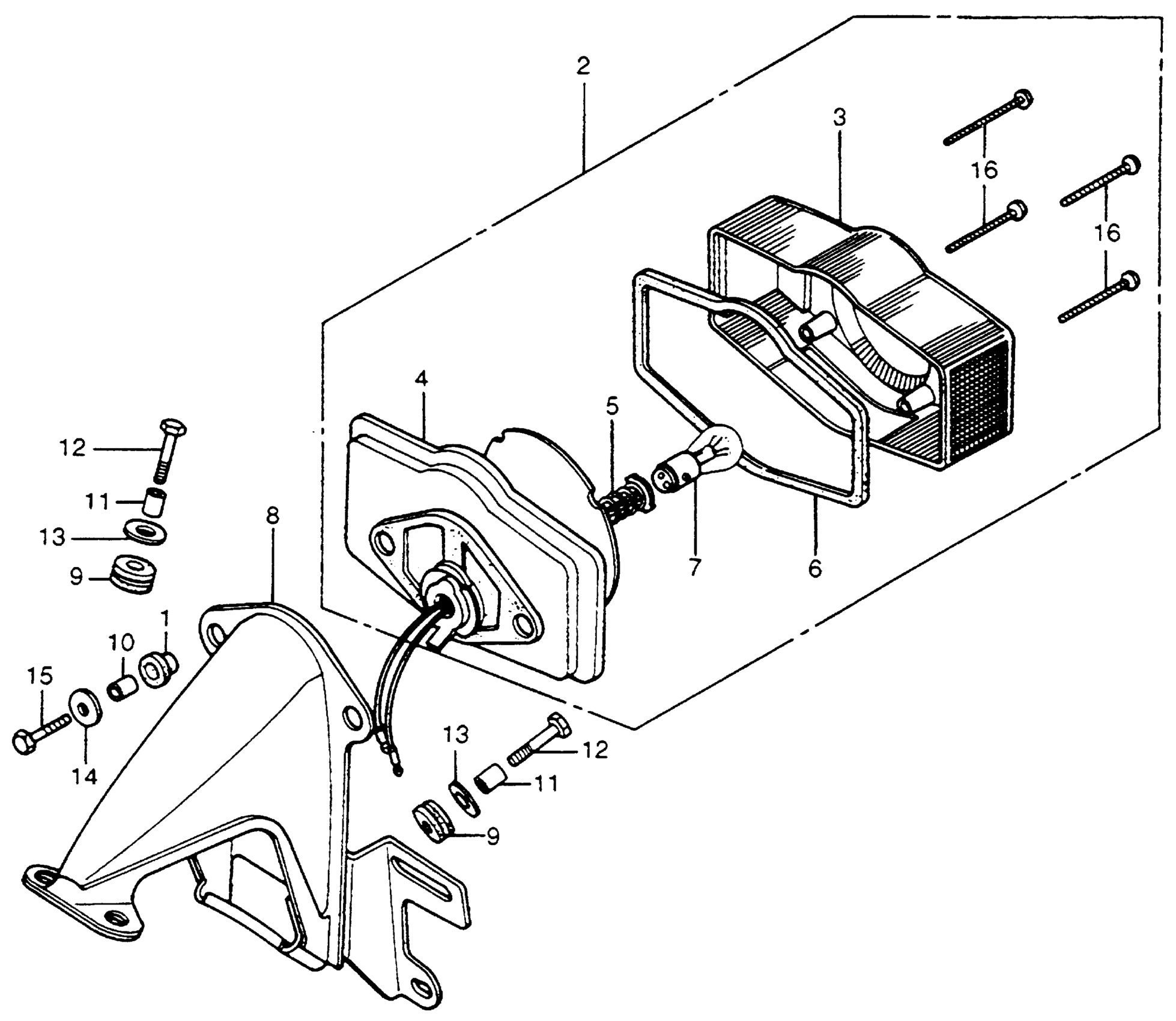

Honda CB400FA MOTORCYCLE, JPN, VIN# CB400F-1000006 TO CB400F-1038492 TAILLIGHT Diagram

#

Description
Price

1

GASKET B, TAILLIGHT BASE (STANLEY)

33719-077-671

$1.59

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-342-671

Unavailable

3

LENS, TAILLIGHT

33702-341-671

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE)

33703-342-671

Unavailable

5

WIRE, TAILLIGHT

33708-098-000

Unavailable

5

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

6

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

7

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

7

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

8

BRACKET, NUMBER PLATE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

84701-377-670XW

Unavailable

9

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

9

RUBBER, RR. FENDER CUSHION This part replaces 84705-377-000.

80101-283-000

$4.91

10

COLLAR, TAILLIGHT UNIT (NOT AVAILABLE)

84706-342-000

Unavailable

11

COLLAR, NUMBER BRACKET SET (NOT AVAILABLE)

84707-342-000

Unavailable

12

BOLT, HEX. (6X25) This part replaces 92000-06025-02.

92101-06025-0B

$2.28

12

BOLT, HEX. (6X25)

92101-06025-0B

$2.28

13

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

14

WASHER, PLAIN (20MM)

90581-310-000

$1.90

14

WASHER (20MM) This part replaces 90581-342-000.

90581-310-000

$1.90

15

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

16

SCREW, PAN (4X55)

93500-04055-0B

$1.49
