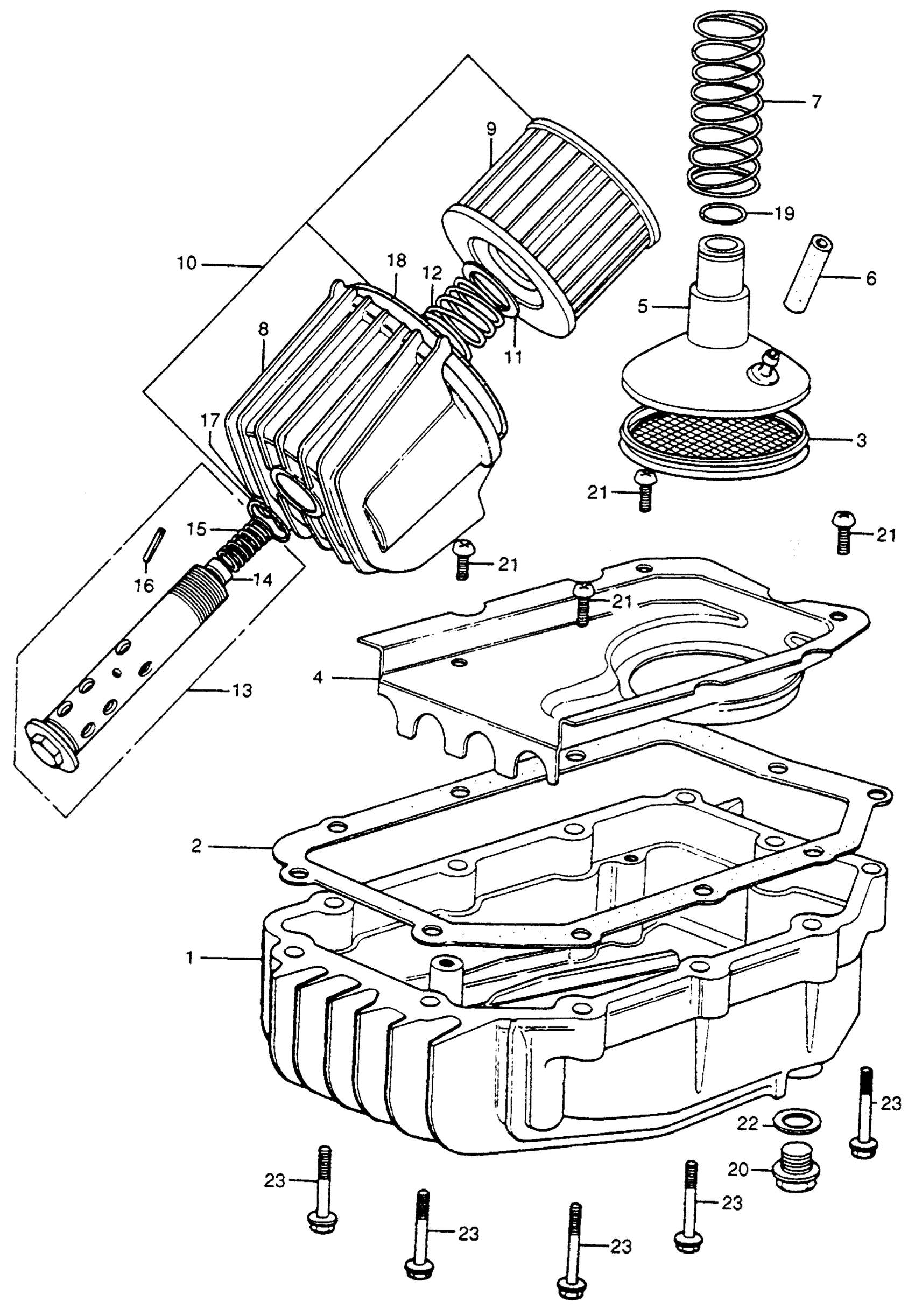

Honda CB400FA MOTORCYCLE, JPN, VIN# CB400F-1000006 TO CB400F-1038492 OIL FILTER + OIL PAN Diagram

#

Description
Price

1

PAN, OIL (NOT AVAILABLE)

11210-377-000

Unavailable

2

GASKET, OIL PAN This part replaces 11398-333-020.

11398-333-306

Unavailable

2

GASKET, OIL PAN

11398-333-306

Unavailable

3

SCREEN, OIL STRAINER (NOT AVAILABLE)

15151-333-000

Unavailable

4

PLATE, OIL SEPARATOR (NOT AVAILABLE)

15152-333-000

Unavailable

5

BODY, OIL SCREEN (NOT AVAILABLE)

15153-333-000

Unavailable

6

PIPE, TRANSMISSION OIL (NOT AVAILABLE)

15155-333-000

Unavailable

7

SPRING, OIL SCREEN SETTING (NOT AVAILABLE)

15157-333-000

Unavailable

8

CASE, OIL FILTER (NOT AVAILABLE)

15411-300-010

Unavailable

9

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$9.30

9

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

9

ELEMENT, OIL FILTER

15410-426-010

$9.30

9

ELEMENT, OIL FILTER This part replaces 15412-300-024.

15410-426-010

$9.30

9

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$9.30

10

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$9.30

10

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

10

ELEMENT, OIL FILTER

15410-426-010

$9.30

10

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$9.30

11

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

12

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

13

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

14

VALVE, CHECK

15473-300-300

$4.25

15

SPRING, CHECK VALVE

15474-300-310

$4.89

16

PIN, SPRING SETTING

15477-300-300

$3.56

17

O-RING (15X2.5) | Use from Engine SN 1000001 to 2102777

91302-377-000

$5.31

18

O-RING (89X4.5) This part replaces 91316-300-003.

91316-425-003

$4.45

18

O-RING (89X4.5)

91316-425-003

$4.45

19

O-RING (16.5X2) (NOT AVAILABLE)

91329-590-003

Unavailable

20

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

21

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

21

SCREW, PAN (6X12)

93500-06012-0A

$1.49

21

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

22

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

23

BOLT, FLANGE (6X40) This part replaces 95700-06040.

95701-06040-00

$1.80

23

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

23

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
