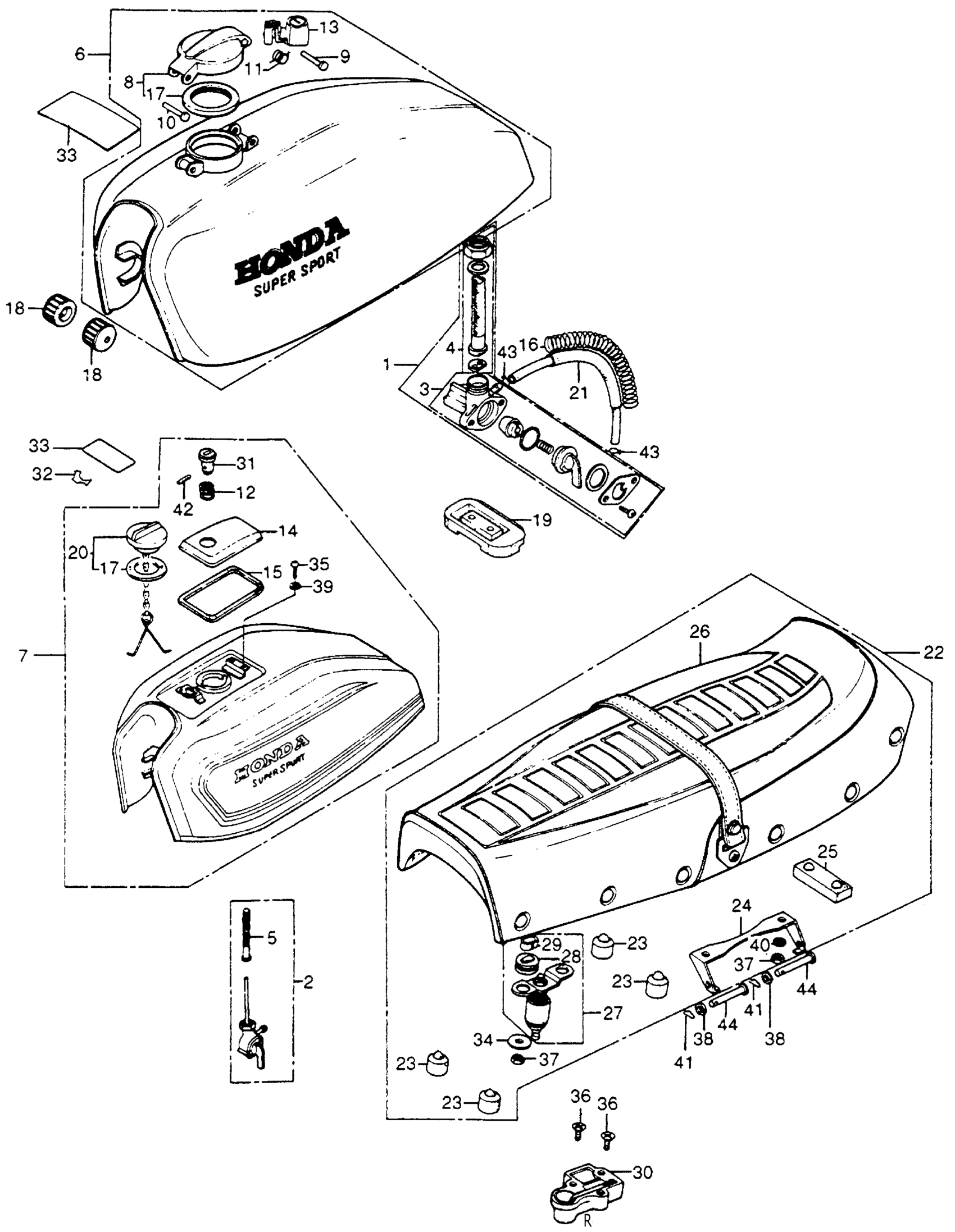

Honda CB400FA MOTORCYCLE, JPN, VIN# CB400F-1000006 TO CB400F-1038492 FUEL TANK + SEAT Diagram

#

Description
Price

1

PETCOCK, FUEL (KEIHIN)

16950-377-005

Unavailable

3

BODY SET, PETCOCK (KEIHIN) (NOT AVAILABLE)

16951-377-005

Unavailable

4

STRAINER SET

16952-341-671

$43.39

6

TANK ASSY., FUEL *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

17050-377-670HX

Unavailable

6

TANK ASSY., FUEL *VBLUE* (VARNISH BLUE) (NOT AVAILABLE)

17050-377-670MW

Unavailable

6

TANK ASSY., FUEL *R25* (LIGHT RUBY RED) (NOT AVAILABLE) This part replaces 17500-377-670HX.

17050-377-670HX

Unavailable

6

TANK ASSY., FUEL *VBLUE* (VARNISH BLUE) (NOT AVAILABLE) This part replaces 17500-377-670MW.

17050-377-670MW

Unavailable

8

CAP, FUEL TANK

17510-323-310

Unavailable

9

PIN, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17513-300-300

Unavailable

10

PIN B, FUEL FILLER CAP (NOT AVAILABLE)

17514-323-300

Unavailable

11

SPRING, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17515-300-300

Unavailable

13

LATCH ASSY., FUEL FILLER CAP

17550-377-315

Unavailable

16

SPRING, FUEL TUBE COVER (NOT AVAILABLE)

17531-377-000

Unavailable

17

GASKET, FUEL FILLER CAP

17534-323-300

$9.17

18

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

18

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

19

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-377-000

Unavailable

21

TUBE, FUEL (NOT AVAILABLE)

17681-377-000

Unavailable

22

SEAT

77200-377-000

Unavailable

23

RUBBER, SEAT CUSHION

77201-074-000

$4.12

24

HINGE, SEAT (NOT AVAILABLE)

77201-369-000

Unavailable

25

RUBBER, SEAT SETTING

77204-312-000

$5.05

26

COVER, SEAT (NOT AVAILABLE)

77210-377-000

Unavailable

27

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

28

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

28

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

28

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

29

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

29

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

29

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

30

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-377-003.

77230-399-007

Unavailable

30

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-007.

77230-399-007

Unavailable

30

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-017.

77230-399-007

Unavailable

30

LOCK ASSY., SEAT (HONDALOCK)

77230-399-007

Unavailable

33

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

33

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

33

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

34

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

34

WASHER, PLAIN (6MM)

94103-06800

$1.49

35

SCREW, PAN (4X6)

93500-04006-0A

$1.49

36

SCREW, FLAT (6X12)

93600-06012-0G

$1.49

36

SCREW, FLAT (6X12) This part replaces 93600-06012-07.

93600-06012-0G

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM)

94001-06200-0S

$1.49

38

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

38

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

38

WASHER, PLAIN (6MM)

94101-06800

$1.49

40

WASHER, SPRING (6MM)

94111-06000

$1.49

41

PIN, LOCK (6MM)

94251-06000

$1.49

43

CLIP, TUBE (B8)

95002-02080

$1.80

44

PIN A, PILLION STEP

95015-81000

$2.21
