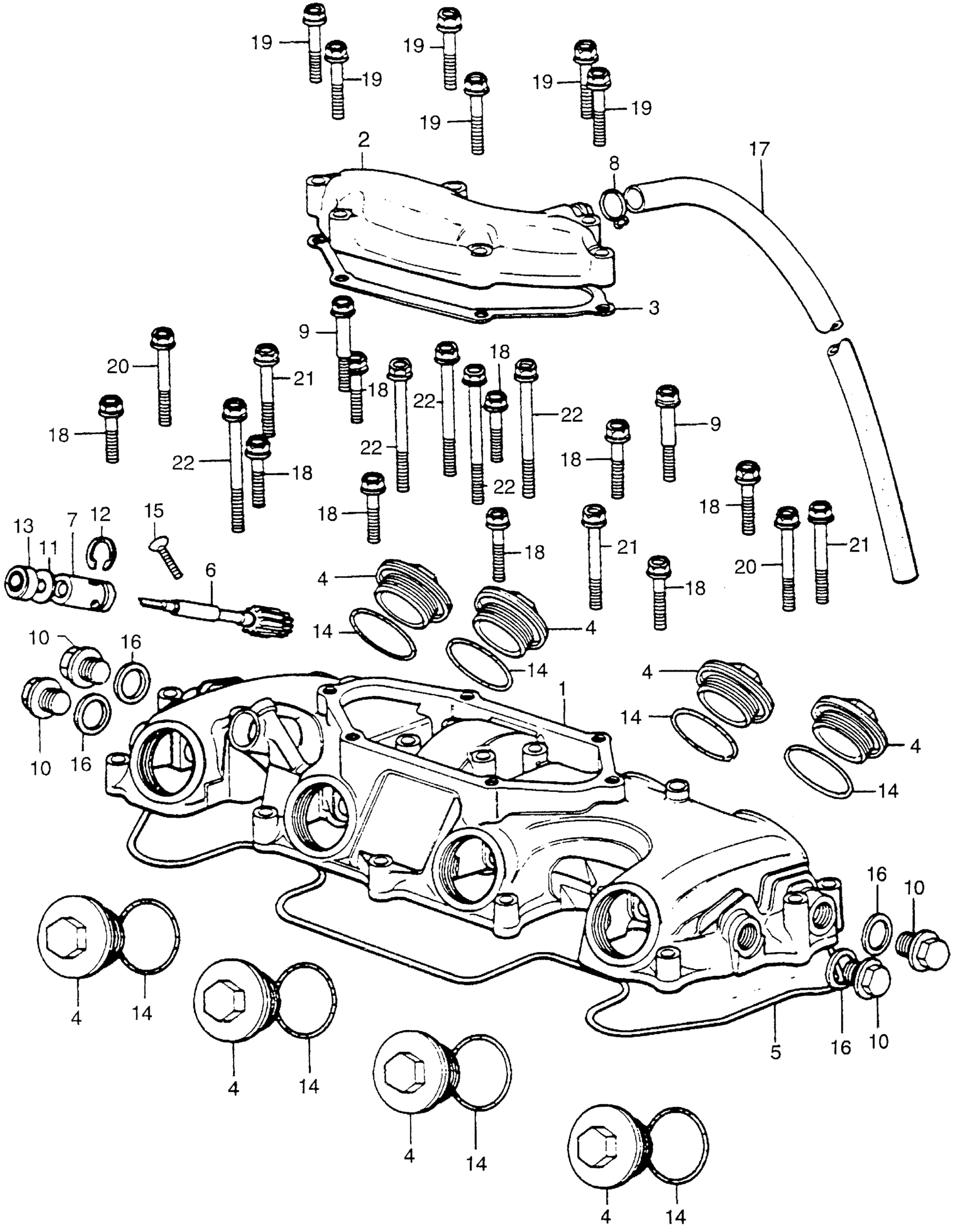

Honda CB400FA MOTORCYCLE, JPN, VIN# CB400F-1000006 TO CB400F-1038492 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-333-020

Unavailable

2

COVER, BREATHER (NOT AVAILABLE)

12320-333-020

Unavailable

3

GASKET, BREATHER COVER This part replaces 12329-333-010.

12329-333-306

Unavailable

3

GASKET, BREATHER COVER

12329-333-306

Unavailable

4

CAP, VALVE ADJ.

12361-300-000

Unavailable

5

GASKET, CYLINDER HEAD COVER

12391-333-000

Unavailable

6

GEAR, TACHOMETER (NOT AVAILABLE)

12431-333-010

Unavailable

7

COLLAR, TACHOMETER GEAR (NOT AVAILABLE)

12435-377-000

Unavailable

8

CLIP, BREATHER TUBE

15772-292-010

$2.92

9

BOLT, UBS (6X38) (NOT AVAILABLE)

90018-333-000

Unavailable

10

BOLT, SEALING (NOT AVAILABLE)

90084-333-000

Unavailable

11

WASHER, THRUST (6.7MM)

90458-324-010

$2.39

12

SET-RING (12.7MM) (NOT AVAILABLE)

90601-333-000

Unavailable

13

OIL SEAL (6.5X14.5X7) (ARAI) This part replaces 91201-324-013.

91201-324-023

$3.95

13

OIL SEAL (6.5X14.5X7) (ARAI)

91201-324-023

$3.95

14

O-RING (30.8MM)

91302-001-020

$3.75

15

SCREW, OVAL (5X20)

93700-05020-0A

$1.49

16

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

17

BULK HOSE, VACUUM (11X1000) (11X470)

95005-11001-30M

$28.08

18

BOLT, FLANGE (6X28) This part replaces 95700-06028.

95700-06028-00

$1.73

18

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

18

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

19

BOLT, FLANGE (6X32) This part replaces 95700-06032.

95701-06032-00

$1.89

19

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

19

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

20

BOLT, FLANGE (6X35) This part replaces 95700-06035.

95701-06035-00

$1.80

20

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

20

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

21

BOLT, FLANGE (6X40) This part replaces 95700-06040.

95701-06040-00

$1.80

21

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

21

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

22

BOLT, FLANGE (6X60) This part replaces 95700-06060.

95701-06060-00

$1.49

22

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

22

BOLT, FLANGE (6X60)

95701-06060-00

$1.49
