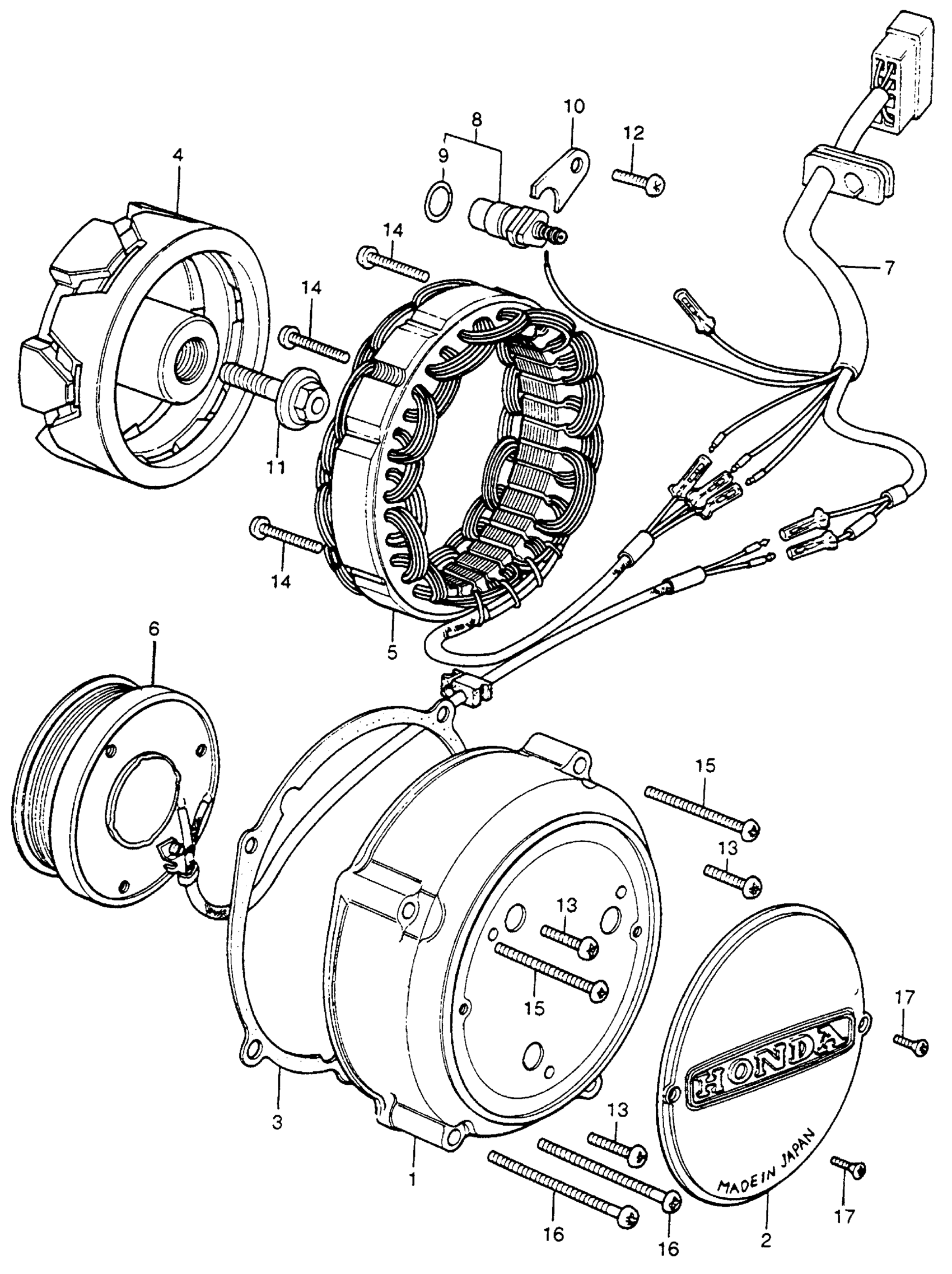

Honda CB400FA MOTORCYCLE, JPN, VIN# CB400F-1000006 TO CB400F-1038492 ALTERNATOR Diagram

#

Description
Price

1

COVER A, ALTERNATOR (NOT AVAILABLE)

11631-377-000

Unavailable

2

COVER B, ALTERNATOR

11632-333-010

Unavailable

3

GASKET, DYNAMO COVER (AS) This part replaces 11691-333-000.

11691-333-306

Unavailable

3

GASKET, DYNAMO COVER (AS)

11691-333-306

Unavailable

4

ROTOR (DENSO) (NOT AVAILABLE)

31101-333-004

Unavailable

5

STATOR (DENSO) (NOT AVAILABLE)

31102-333-004

Unavailable

6

COIL, FIELD (NOT AVAILABLE) This part replaces 31103-333-004.

31103-390-005

Unavailable

7

WIRE HARNESS, ALTERNATOR (NOT AVAILABLE)

31110-333-000

Unavailable

8

SWITCH, NEUTRAL (NOT AVAILABLE)

35750-333-023

Unavailable

9

O-RING (NOT AVAILABLE)

35751-333-003

Unavailable

10

PLATE, NEUTRAL SWITCH FIXING (NOT AVAILABLE)

35755-333-010

Unavailable

11

BOLT, UBS (10X32) This part replaces 90014-333-000.

90014-333-003

Unavailable

12

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

12

SCREW, PAN (6X12)

93500-06012-0A

$1.49

12

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

13

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

13

SCREW, PAN (6X16)

93500-06016-0A

$1.49

14

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

14

SCREW, PAN (6X32)

93500-06032-0A

$1.49

15

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

15

SCREW, PAN (6X40)

93500-06040-0A

$1.49

16

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

16

SCREW, PAN (6X55)

93500-06055-0A

$1.49

17

SCREW, OVAL (4X12)

93700-04012-0B

$1.32
