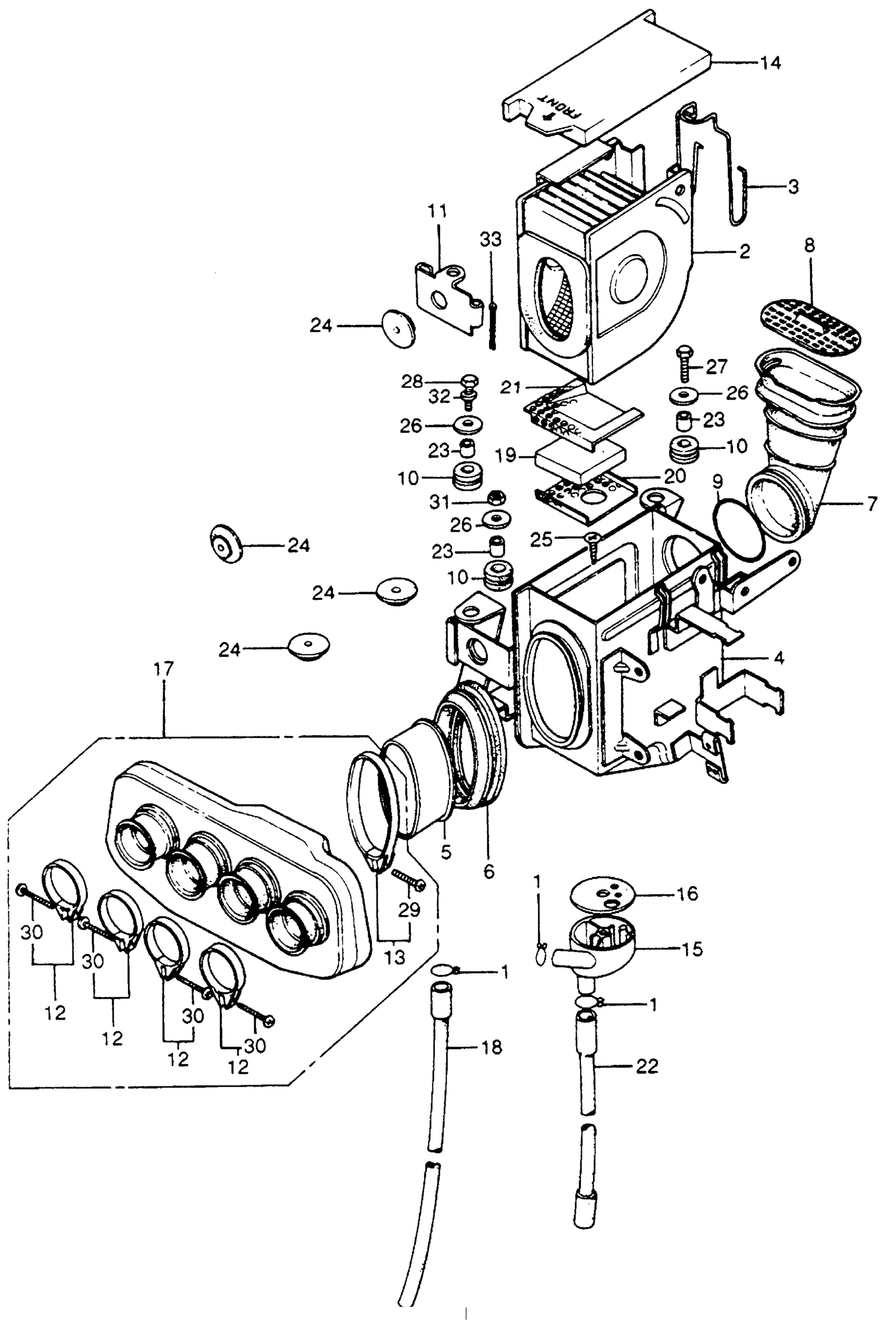

Honda CB400FA MOTORCYCLE, JPN, VIN# CB400F-1000006 TO CB400F-1038492 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

ELEMENT, AIR CLEANER

17210-333-610

Unavailable

3

SPRING, AIR CLEANER ELEMENT

17216-333-010

Unavailable

4

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-377-010

Unavailable

5

GUIDE, AIR DUCT (NOT AVAILABLE)

17235-333-000

Unavailable

6

SEAL, AIR CLEANER ELEMENT (NOT AVAILABLE)

17236-333-000

Unavailable

7

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-333-000

Unavailable

8

NET, AIR IN. (NOT AVAILABLE)

17241-333-000

Unavailable

9

BAND, AIR CLEAENR IN. (NOT AVAILABLE)

17242-333-000

Unavailable

10

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

11

PLATE, BATTERY HINGE (NOT AVAILABLE)

17252-333-000

Unavailable

12

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17255-166-000.

95018-42250

$7.72

12

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17255-333-000.

95018-42250

$7.72

12

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17256-KG8-900.

95018-42250

$7.72

12

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 90652-GHB-640.

95018-42250

$7.72

12

BAND, AIR CLEANER CONNECTING TUBE (42)

95018-42250

$7.72

13

BAND, AIR CLEANER CONNECTING TUBE This part replaces 17256-333-000.

17256-333-405

Unavailable

14

LID, AIR CLEANER HOUSING (NOT AVAILABLE)

17260-333-000

Unavailable

15

CHAMBER, BREATHER (NOT AVAILABLE)

17271-611-010

Unavailable

16

GASKET, BREATHER (NOT AVAILABLE)

17272-377-000

Unavailable

17

CHAMBER ASSY., AIR CLEANER (NOT AVAILABLE)

17300-333-000

Unavailable

18

TUBE ASSY., BREATHER

17335-323-000

Unavailable

19

ELEMENT B (NOT AVAILABLE)

17352-377-000

Unavailable

20

PLATE A, GASKET (NOT AVAILABLE)

17354-377-000

Unavailable

21

PLATE B, GASKET (NOT AVAILABLE)

17355-377-000

Unavailable

22

TUBE ASSY., DRAIN (NOT AVAILABLE)

17358-374-000

Unavailable

23

COLLAR

33603-053-650

$1.64

24

RUBBER, BATTERY BOX

83618-323-000

$2.47

25

SCREW, TAPPING (6X18) (NOT AVAILABLE)

90163-538-000

Unavailable

26

WASHER, FLAT (20MM) (NOT AVAILABLE)

91412-538-000

Unavailable

27

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

27

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

28

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

28

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

29

SCREW, PAN (5X16)

93500-05016-0A

$1.49

30

SCREW, PAN (5X25)

93500-05025-0A

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

PIN, SPLIT (3.0X45)

94201-30450

$1.49
