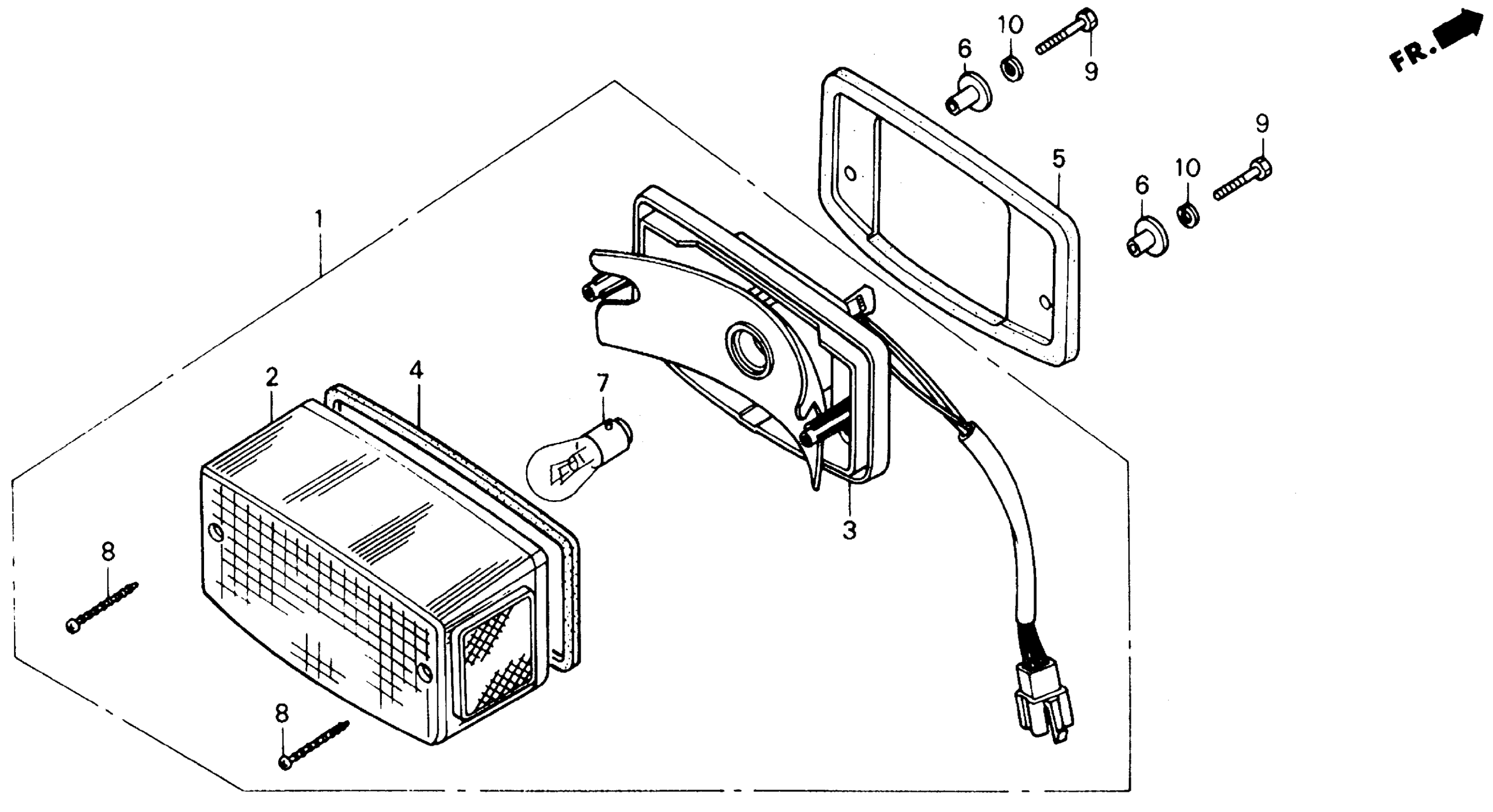

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)

33701-KAF-671

Unavailable

2

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$28.19

3

SOCKET, TAILLIGHT (NOT AVAILABLE)

33703-KAF-670

Unavailable

4

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.02

5

GASKET, TAILLIGHT (NOT AVAILABLE)

33718-MG2-000

Unavailable

6

COLLAR, TAILLIGHT GASKET

33719-437-970

$6.41

7

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.20

8

SCREW, TAPPING (4X40)

90104-KAF-000

$2.50

9

BOLT, HEX. (5X25)

92101-05025-0A

$1.32

10

WASHER, SPRING (5MM)

94111-05000

$1.04
