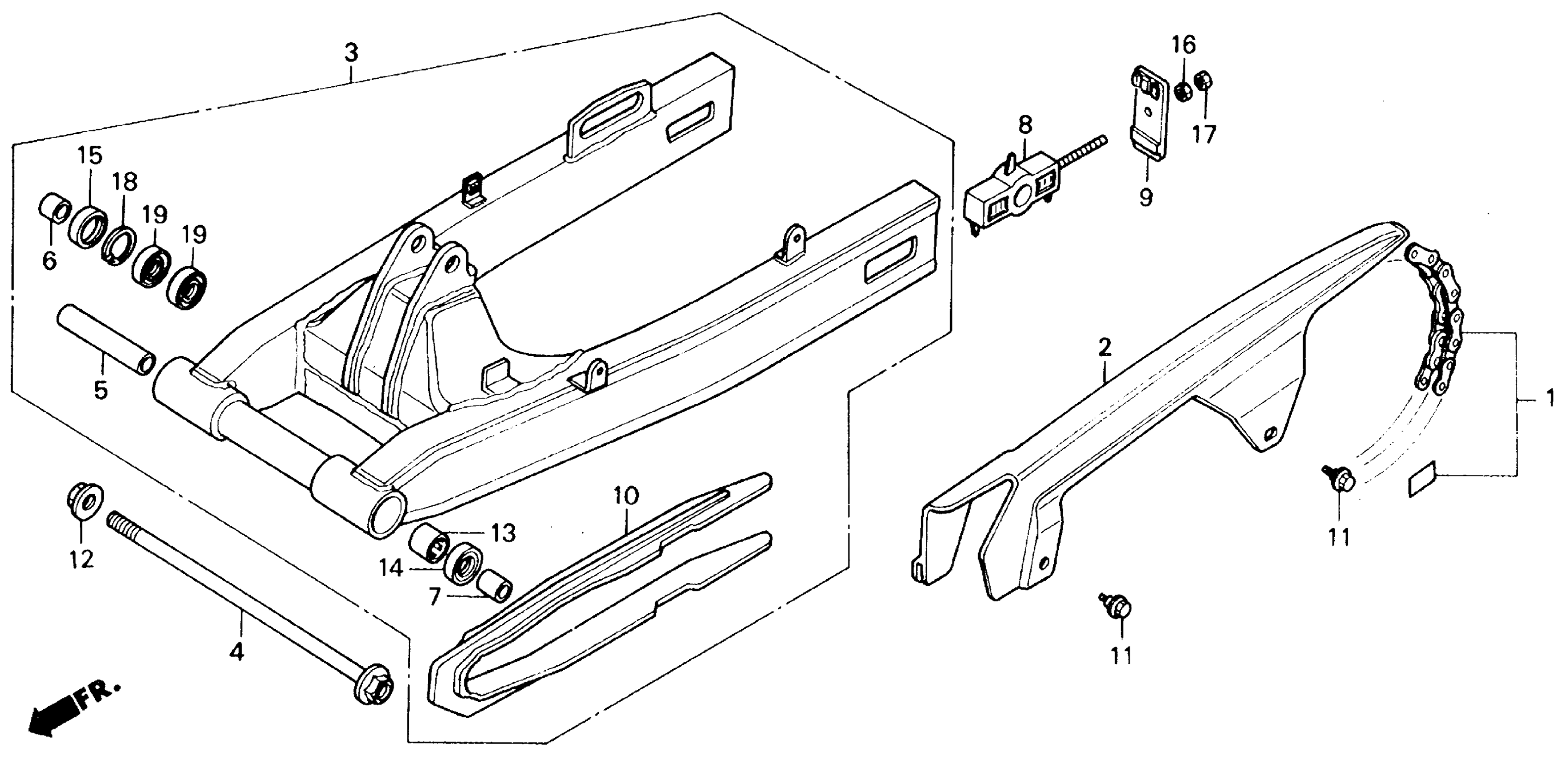

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (DID525V8-104LE) (DAIDO) (NOT AVAILABLE)

405A3-KAF-013

Unavailable

1

CHAIN SET, DRIVE (RK525SMO-Z4-104LE) (TAKASAGO) (NOT AVAILABLE)

405A3-KAF-015

Unavailable

2

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-KAF-000

Unavailable

3

SWINGARM ASSY. (NOT AVAILABLE)

52100-KAF-000

Unavailable

4

BOLT, SWINGARM PIVOT (SOURCE: VINTAGE PARTS INC.)

52101-KM4-000

Unavailable

5

COLLAR, PIVOT DISTANCE (NOT AVAILABLE)

52102-KAF-000

Unavailable

6

COLLAR B, SWINGARM PIVOT

52105-MJ0-000

$5.62

7

COLLAR B, PIVOT

52106-ML4-000

Unavailable

8

COLLAR, CHAIN TENSIONER (NOT AVAILABLE)

52120-KY6-000

Unavailable

9

PLATE, CHAIN TENSIONER (NOT AVAILABLE)

52121-KY6-000

Unavailable

10

SLIDER, CHAIN (NOT AVAILABLE)

52170-KAF-000

Unavailable

11

BOLT, FLANGE (6MM)

90111-187-000

$5.59

12

NUT, U (14MM)

90305-GE8-003

$3.86

12

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

13

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

13

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$36.85

14

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

15

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

15

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.46

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

NUT, HEX. (8MM)

94030-08000

$1.49

18

CIRCLIP, INNER (35MM)

94520-35000

$1.84

19

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49
