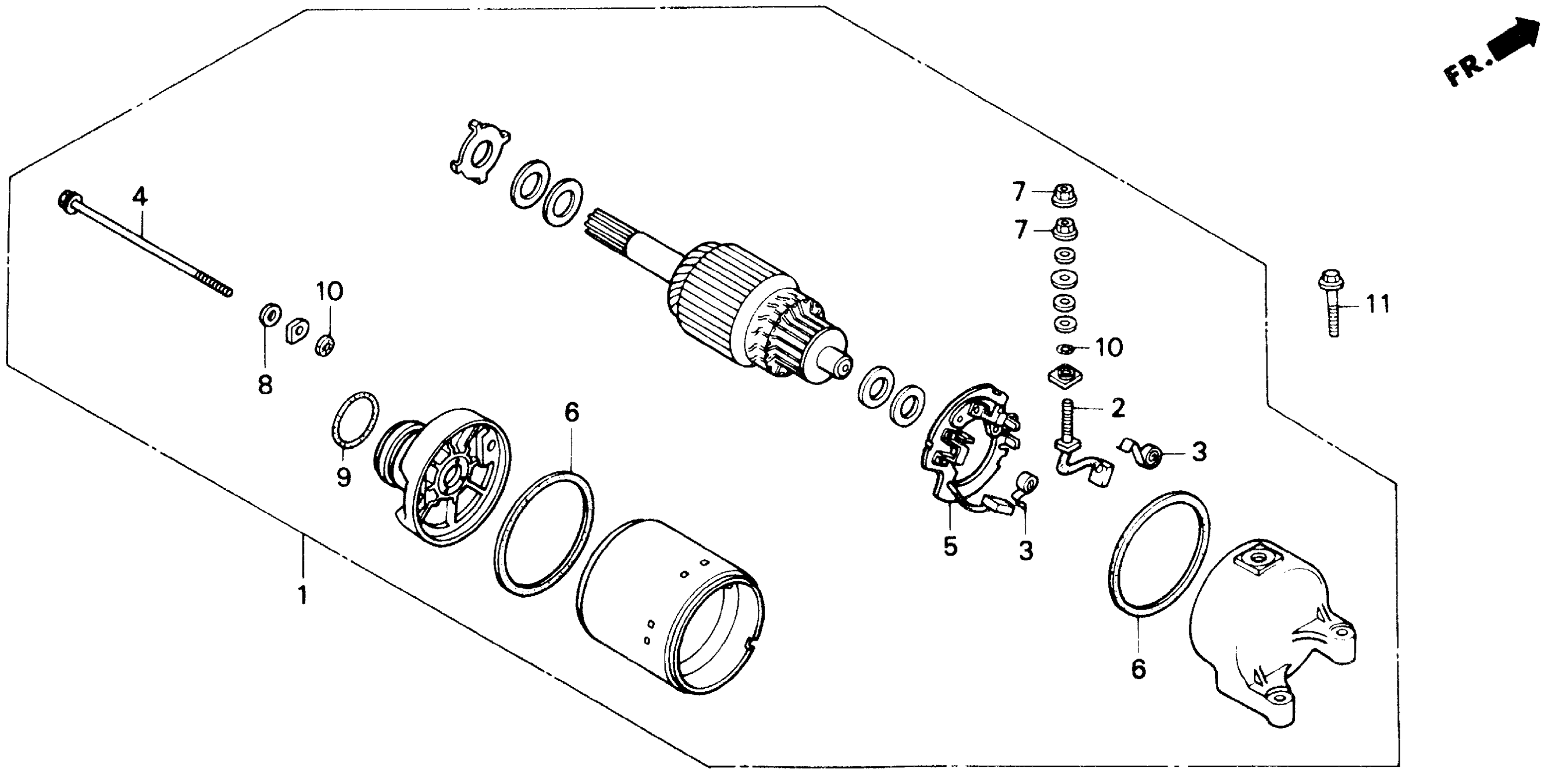

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY.,START This part replaces 31200-KAF-000.

31200-KAF-008

Unavailable

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$24.71

3

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

4

BOLT, SETTING

31205-KL8-711

$4.51

5

HOLDER SET, BRUSH

31206-MN4-008

$23.32

6

RING

31207-KS5-901

$3.12

7

NUT-WASHER (6MM)

90071-MB0-000

$1.97

8

WASHER, STEEL PLATE

90122-MN4-008

$2.97

9

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

9

O-RING (24.4X3.1)

91312-MG7-003

$6.34

10

O-RING (4X2)

91320-MB0-000

$2.43

11

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
