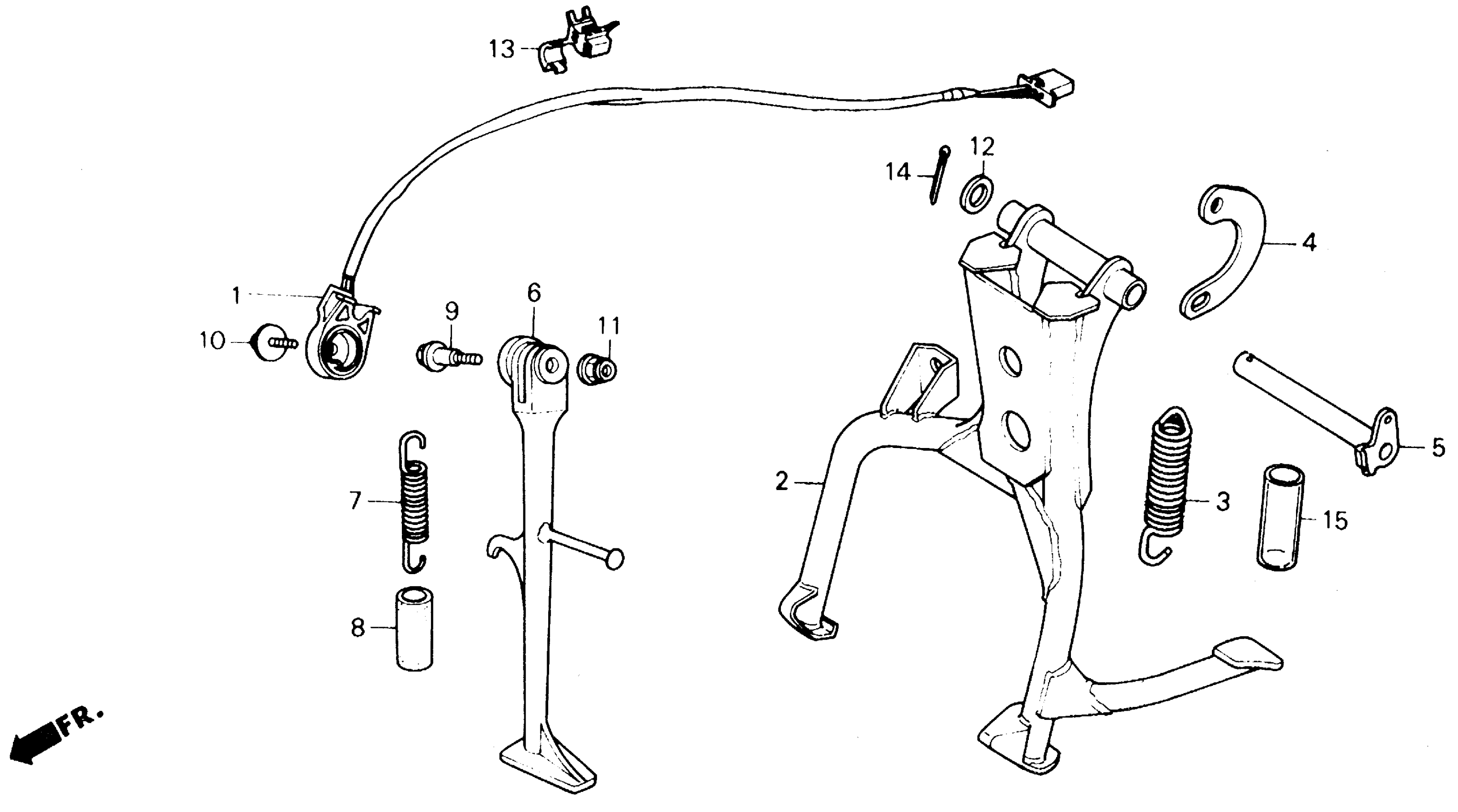

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 STAND Diagram

#

Description
Price

1

SWITCH SET, SIDE STAND This part replaces 35700-KAF-305.

35700-MAW-305

Unavailable

1

SWITCH SET, SIDE STAND

35700-MAW-305

Unavailable

2

STAND, MAIN | (Optional). This part replaces 50500-KAF-000.

50500-KAF-700

Unavailable

3

SPRING ASSY., MAIN STAND | (Optional). This part replaces 50522-MN4-000.

50541-MT6-600

$9.46

3

SPRING ASSY., MAIN STAND | (Optional).

50541-MT6-600

$9.46

4

PLATE, MAIN STAND SPRING | (Optional).

50523-425-000

Unavailable

5

PIPE, MAIN STAND PIVOT (SOURCE: VINTAGE PARTS INC.) | (Optional).

50526-MT6-600

Unavailable

6

BAR, SIDE STAND (NOT AVAILABLE)

50530-KAF-000

Unavailable

7

SPRING, SIDE STAND

50541-KE8-000

$3.80

8

TUBE, SIDE STAND SPRING (SOURCE: VINTAGE PARTS INC.)

50544-MR7-000

Unavailable

9

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.78

10

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

10

BOLT, SPECIAL (6X16) This part replaces 90147-MK6-671.

90147-MCE-950

$1.49

11

NUT, SIDE STAND

90203-MF9-710

$3.67

12

WASHER (16X22) (NOT AVAILABLE) | (Optional).

90439-443-740

$4.11

13

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

14

PIN, SPLIT (2.5X30) | (Optional). This part replaces 94201-25250.

94201-25300

$1.49

14

PIN, SPLIT (2.5X30) | (Optional).

94201-25300

$1.49

15

HOSE, BULK (22X27X1000) (22X27X60) | (Optional).

95003-60001-10M

Unavailable
