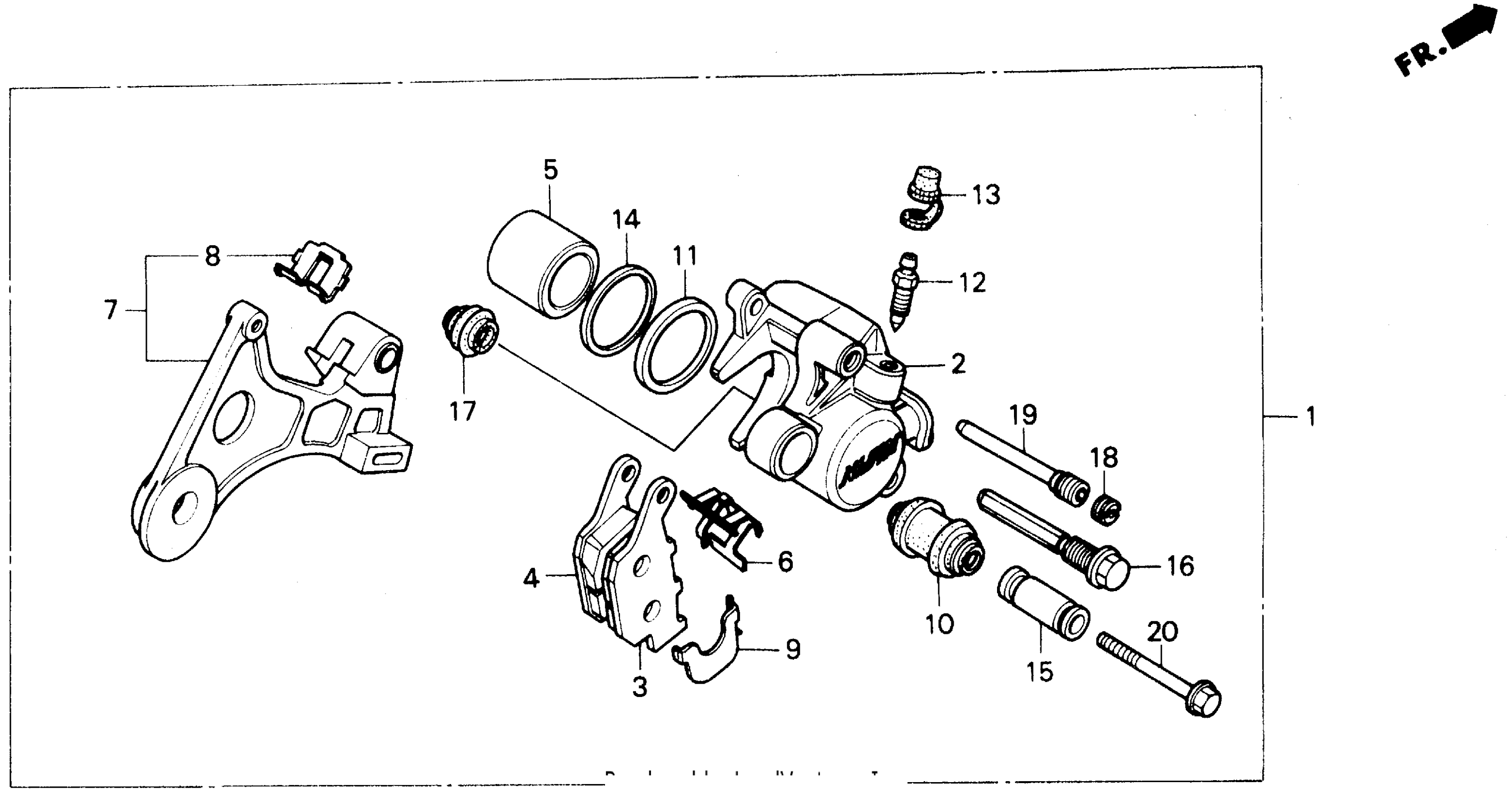

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY., RR. (NOT AVAILABLE)

43100-KAF-672

Unavailable

2

BODY, RR. CALIPER (NOT AVAILABLE)

43101-KAF-671

Unavailable

3

PAD A, RR. This part replaces 43105-KT7-762.

43105-MFF-D02

Unavailable

4

PAD B, RR. This part replaces 43106-KT7-762.

43106-MFF-D02

Unavailable

5

PISTON

43107-KT7-761

$34.77

6

SPRING, PAD

43108-KT7-761

$7.99

7

BRACKET, RR. (NOT AVAILABLE)

43110-KAF-006

Unavailable

8

RETAINER

43112-KT7-761

$8.68

9

SHIM A (NOT AVAILABLE)

43114-KT7-761

Unavailable

10

BOOT, SLEEVE

43132-KT7-761

$7.85

11

SEAL, PISTON (38MM)

43209-371-006

$10.86

12

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

13

CAP, BLEEDER

43353-461-771

$4.83

14

DUST SEAL (NOT AVAILABLE)

45109-443-870

$4.43

15

SLEEVE

45111-MA3-006

$12.28

16

BOLT, PIN

45131-MN9-006

$14.66

17

BOOT B

45133-MA3-006

$5.21

18

PLUG, PIN

45203-MG3-016

$4.88

19

PIN, HANGER

45215-KA3-732

$10.56

20

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$5.80

20

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80
