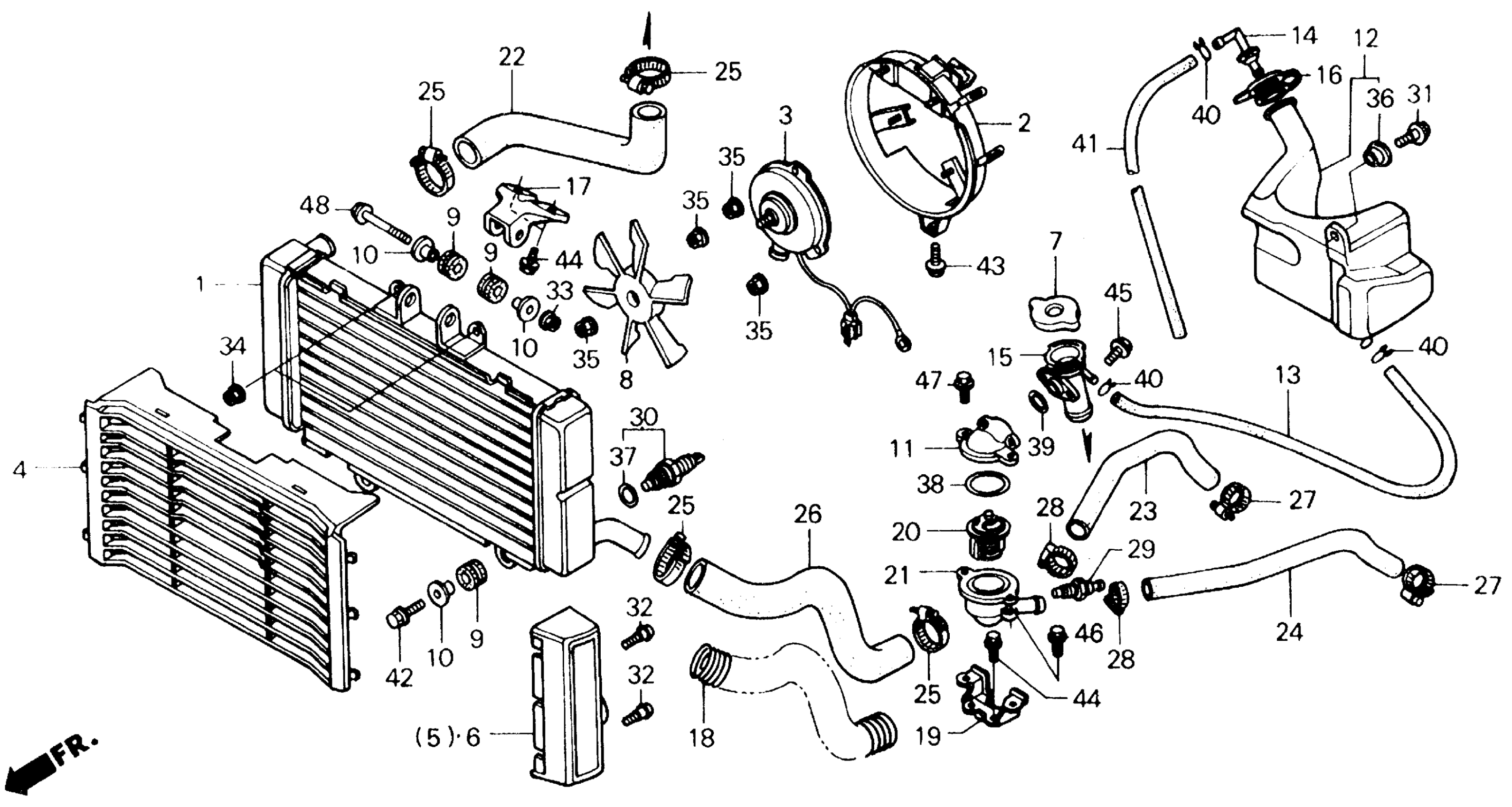

Honda CB400FA (90) CB-1, JPN, VIN# JH2NC270-LM100001 RADIATOR Diagram

#

Description
Price

1

RADIATOR (TOYO) (NOT AVAILABLE)

19010-KAF-003

Unavailable

2

SHROUD (NOT AVAILABLE)

19015-KAF-003

Unavailable

3

MOTOR ASSY., FAN This part replaces 19030-KAF-003.

19030-KAF-013

Unavailable

4

GRILLE, RADIATOR This part replaces 19032-KAF-670.

19032-MY5-860

Unavailable

5

COVER, R. RADIATOR SIDE (NOT AVAILABLE)

19033-KAF-670

Unavailable

6

COVER, L. RADIATOR SIDE (NOT AVAILABLE)

19035-KAF-670

Unavailable

7

CAP, RADIATOR This part replaces 19037-KA4-701.

19045-MZ1-621

$50.26

8

FAN, COOLING (TOYO)

19040-MF5-751

$63.21

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

10

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

10

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

11

COVER, THERMOSTAT (NOT AVAILABLE)

19060-KT8-000

Unavailable

12

TANK, RADIATOR RESERVE (NOT AVAILABLE)

19101-KAF-000

Unavailable

13

TUBE, RADIATOR RESERVE TANK (NOT AVAILABLE)

19105-KAF-000

Unavailable

14

ADAPTER, RESERVE CAP

19106-GE2-000

$11.75

15

NECK, FILLER (NOT AVAILABLE)

19106-KT8-711

Unavailable

16

CAP, RESERVE TANK

19108-KK4-000

Unavailable

17

STAY, RADIATOR (UPPER) (NOT AVAILABLE)

19120-KAF-000

Unavailable

18

GUARD, RADIATOR HOSE (LOWER) (NOT AVAILABLE)

19121-KAF-000

Unavailable

19

STAY, THERMOSTAT (NOT AVAILABLE)

19130-KAF-000

Unavailable

20

THERMOSTAT ASSY.

19300-ML7-003

$49.22

21

CASE, THERMOSTAT (SOURCE: VINTAGE PARTS INC.)

19311-KT8-000

Unavailable

22

HOSE, RADIATOR (UPPER) (NOT AVAILABLE)

19501-KAF-000

Unavailable

23

HOSE, R. WATER (NOT AVAILABLE)

19502-KAF-000

Unavailable

24

HOSE, L. WATER (NOT AVAILABLE)

19503-KAF-000

Unavailable

25

CLAMP, HOSE (24-32MM) This part replaces 19503-ML0-003.

19516-ML7-691

$14.40

25

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

26

HOSE, RADIATOR (LOWER) (NOT AVAILABLE)

19504-KAF-000

Unavailable

27

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

28

CLAMP B, WATER HOSE (NOT AVAILABLE)

19517-MB6-000

Unavailable

29

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

30

SWITCH ASSY., THERMO

37760-MR1-003

$71.91

31

BOLT, FLANGE (6MM)

90111-162-000

$2.89

32

SCREW (4X8)

90113-SB3-000

Unavailable

33

NUT, FLANGE (6MM) This part replaces 90203-PD1-000.

94050-06070

$1.49

33

NUT, FLANGE (6MM)

94050-06070

$1.49

34

NUT, SERRATE (5MM) (NOT AVAILABLE)

90315-KAF-003

Unavailable

35

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

36

WASHER (6X9)

90513-323-000

$1.84

37

O-RING (13.5X1.4)

91307-PH7-660

$2.83

37

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

38

O-RING (47.5X2)

91311-KE8-000

$2.39

39

O-RING (23X2.4)

94608-30000

$1.49

40

CLIP, TUBE (C11)

95002-70000

$1.56

41

BULK HOSE, VACUUM (7X3000) (7X550)

95005-70003-30M

$23.45

42

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

43

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

44

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

45

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

46

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

47

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

48

BOLT, FLANGE (6X55)

96001-06055-07

$2.23
